Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

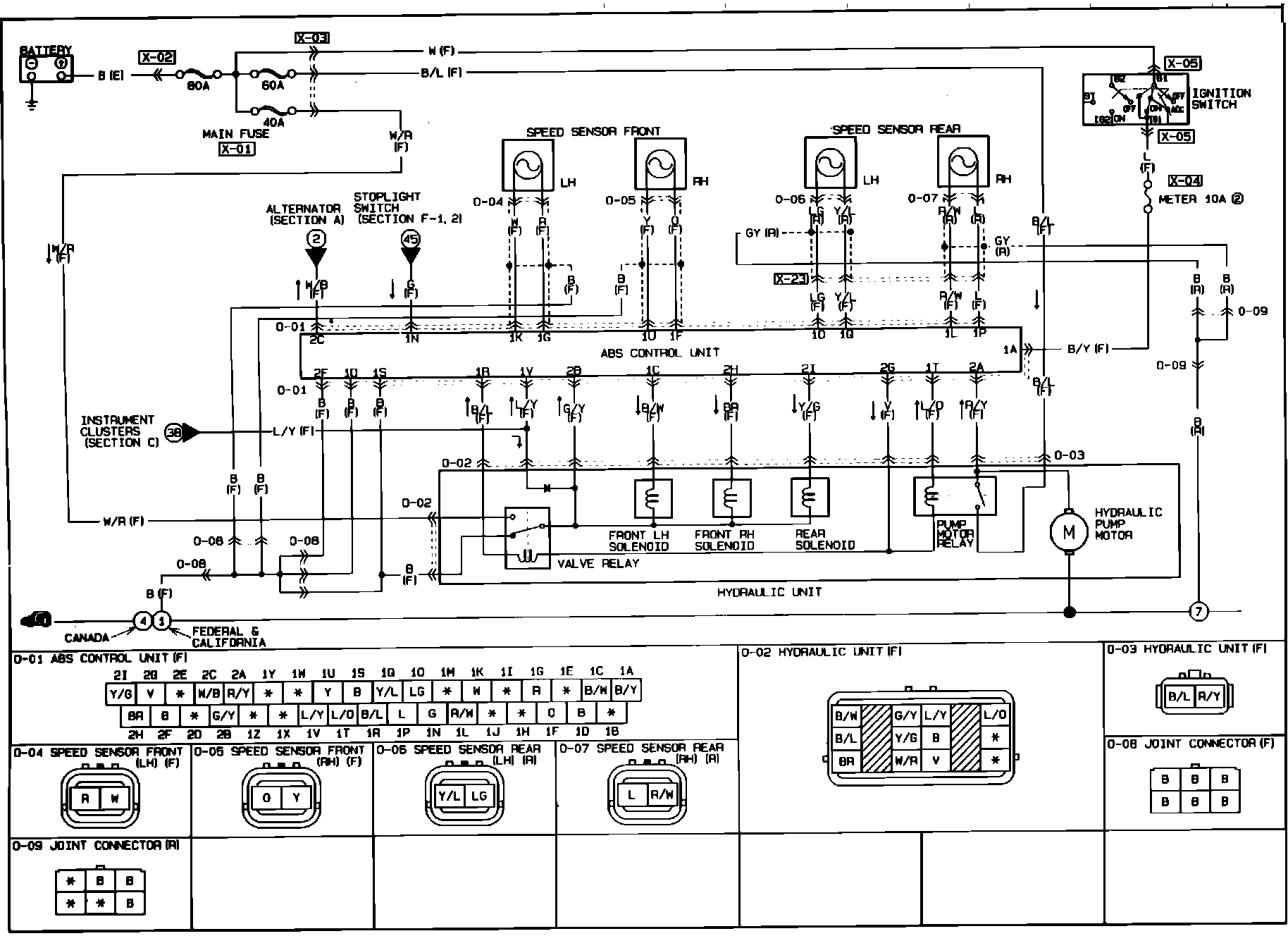

Fig. 7 Anti-lock Brake System Wiring Diagram.:
