Hydraulic Control Assembly - Antilock Brakes: Testing and Inspection

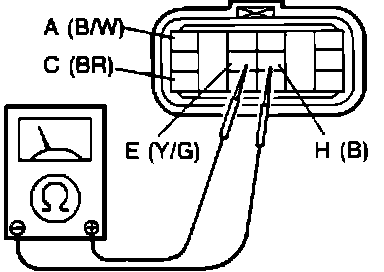

Fig. 34 Valve Connector Pin Identification:

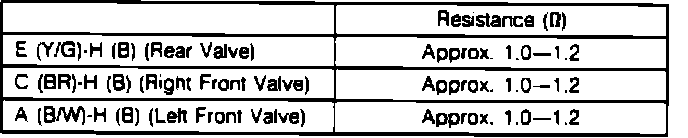

Fig. 35 Valve Resistance Specifications:

1. Disconnect hydraulic unit 12 pin connector.
2. Using ohmmeter, check for resistance of terminals shown in Figs. 34 and 35.
3. If resistance is not as specified, replace hydraulic unit.
4. If resistance is as specified, check wiring harness from hydraulic unit to ABS control unit.
