Fuel Pressure Release: Service and Repair

Fuel Pressure Release & Gauge Installation:

1. Start engine.

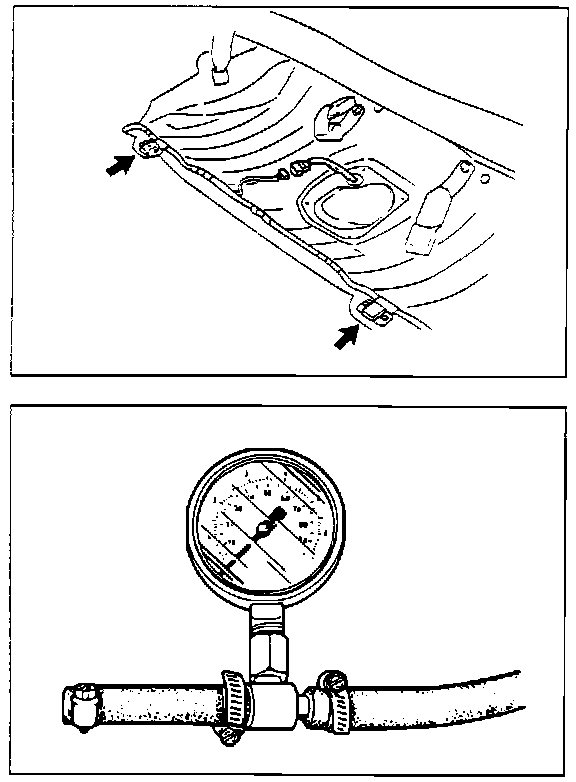

2. Push rear seat cushion buttons and remove cushion.
3. Disconnect fuel pump connector.
4. After engine stalls, turn ignition OFF.
5. Reconnect fuel pump connector and install cushion.
6. Install gauge as shown.

CAUTION: To prevent leakage, use hose clamps to secure pressure gauge to fuel filter and main fuel hose.
