Mazda
>>
1992
>>
MX-3 V6-1844cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

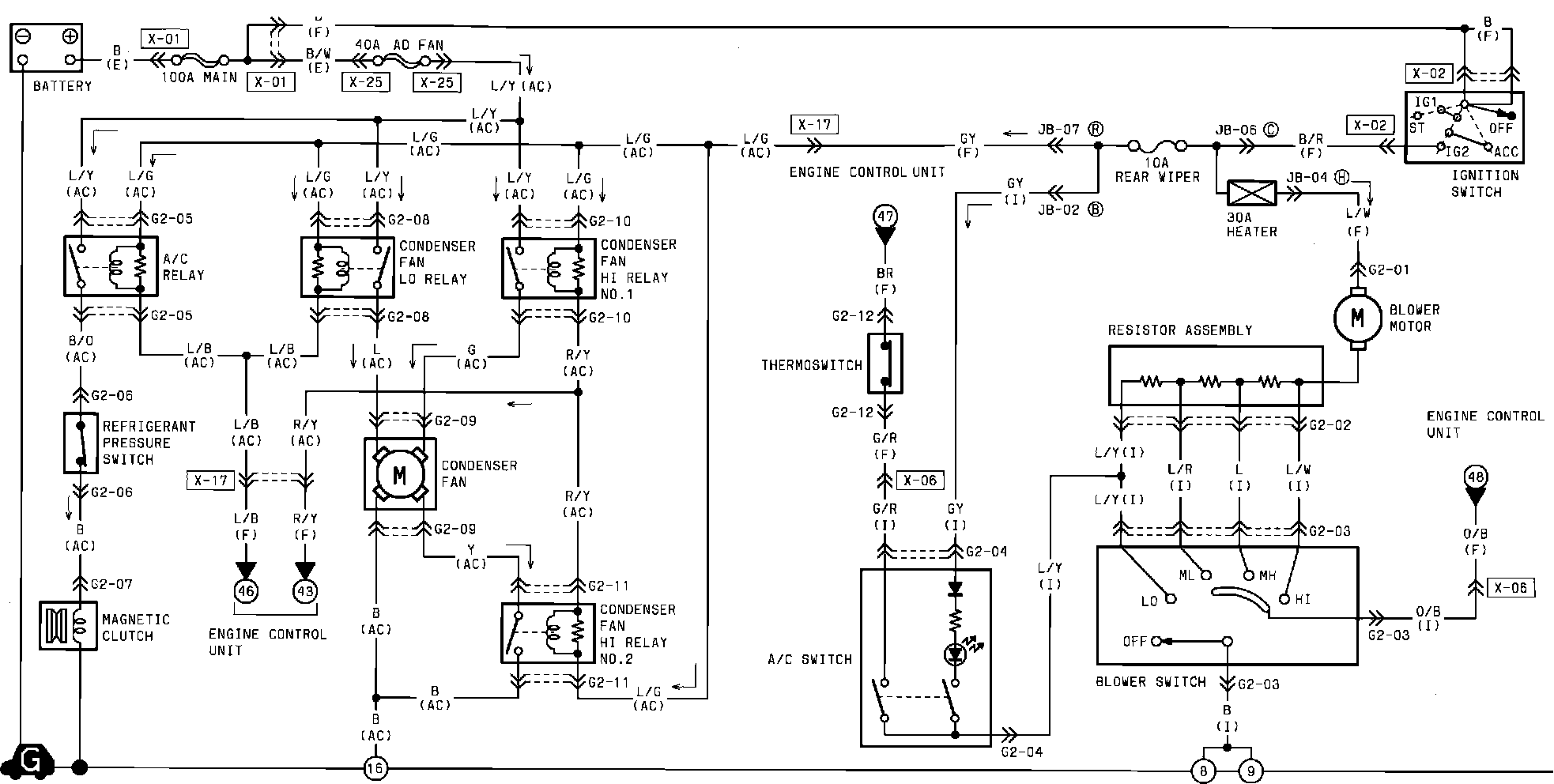

Heater. Air Conditioner (Option).:
