Automatic Transmission/Transaxle
>>
Torque Converter Housing
Torque Converter Housing

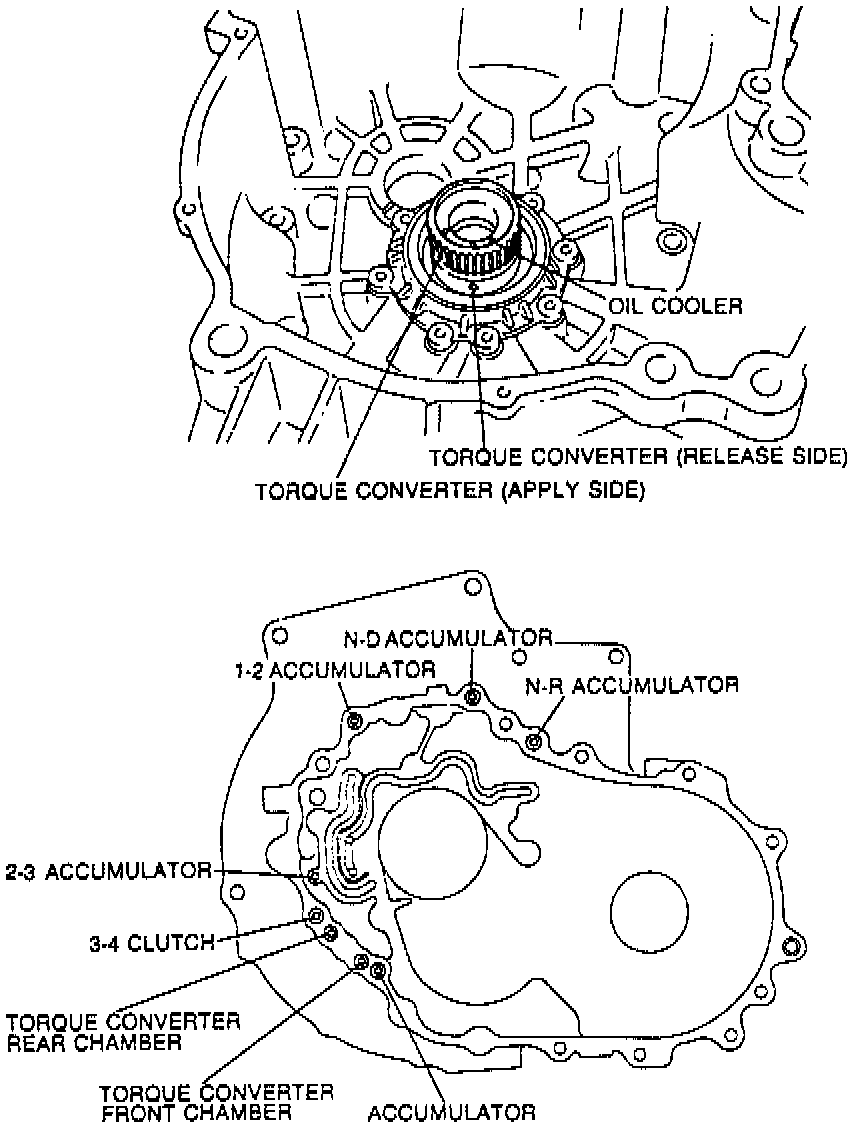

Clutch Housing Fluid Passage Locations:
