Intake and Exhaust Valve Seals - Identification

Bulletin No.: 009/93
Issued: 12/10/93
Revised

Category
B

Applicable Model/s
1992-94 626/MX-6

Subject:
IDENTIFICATION OF INTAKE AND EXHAUST VALVE SEALS

APPLICABLE MODELS/VINS
1992-94 626/MX-6
1992-94 MX-3 (With K8 Engines)








DESCRIPTION

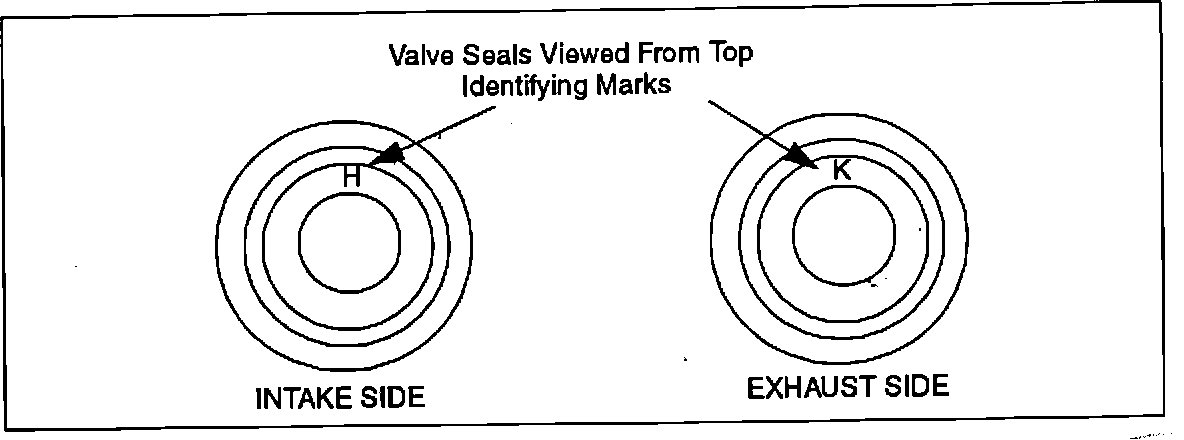

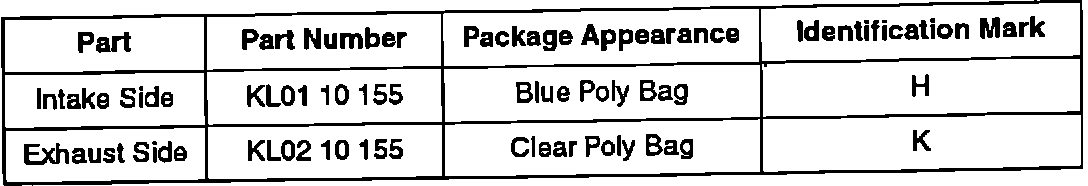

When installing valve seals on the above engines, the intake and exhaust valve seals are different. The seals (enclosed in the gasket set) are separately packaged, the table and illustrations show how to identity the seals.

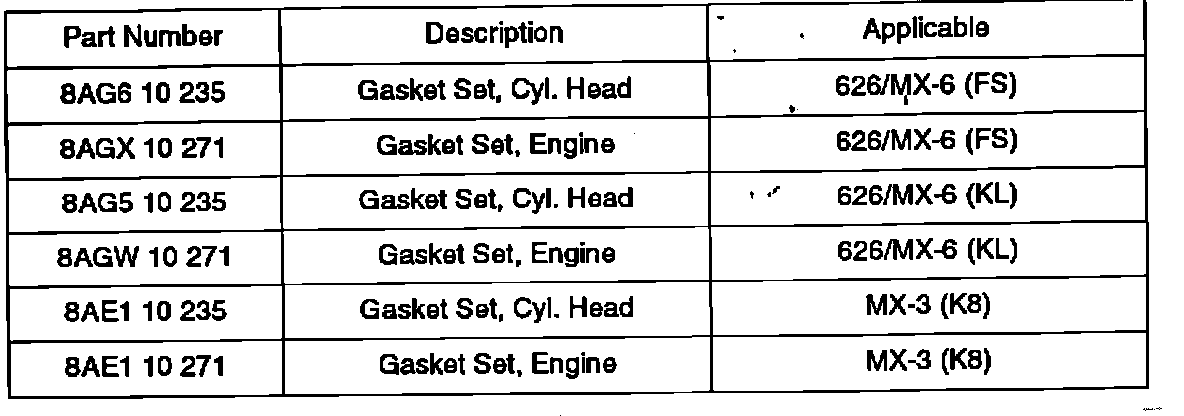

PARTS INFORMATION
