Oil Cooler: Service and Repair

REMOVAL / INSTALLATION

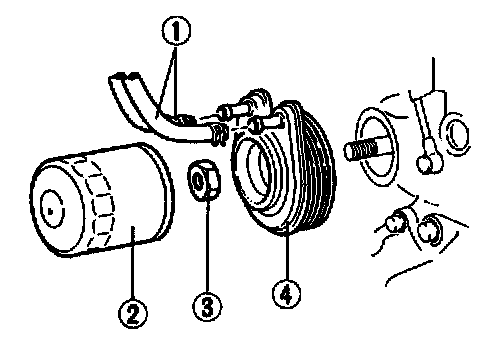

Remove in the sequence shown in the image.
Install in the reverse order of removal.

1. Water hose
2. Oil filter
3. Nut
4. Oil cooler

Nut tightening torque:
29-39 Nm (3.0-4.0 m.kg, 22-29 ft-lb)
