W/Automatic Transaxle

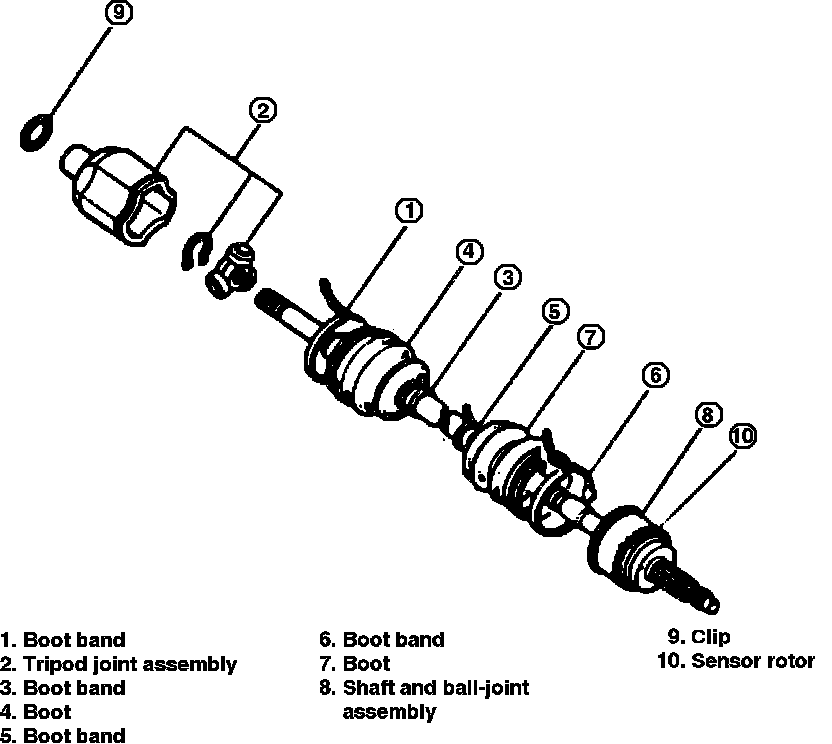

Fig. 16 Exploded View Of Driveshaft:

DISASSEMBLY

Disassemble driveshaft in numerical order Fig. 16, noting the following:
1. Disassemble tripod joint as follows:
a. Remove snap ring using snap ring pliers, then remove tripod joint bearing.
b. Disassemble joint shaft assembly.

INSPECTION

1. Check for twisted, bent or damaged shaft, replacing as necessary.
2. Check for wear or scoring of splines, replacing as necessary.
3. Check for wear, excessive looseness, seizure, rust or damage to bearing, replacing as necessary.
4. Check for damage or deterioration of boots, replacing as necessary.
5. Check for excessive play or heat damage of joint shaft bearing.

ASSEMBLY

Assemble in reverse order of disassembly, noting the following:
1. Wheel side and differential side boots are different, do not intermix.
2. Fill inside of ball joint with grease included in kit.
3. Securely fit boot to shaft and the outer race boot grooves.
4. Install new clip on end of shaft.
