Replacement

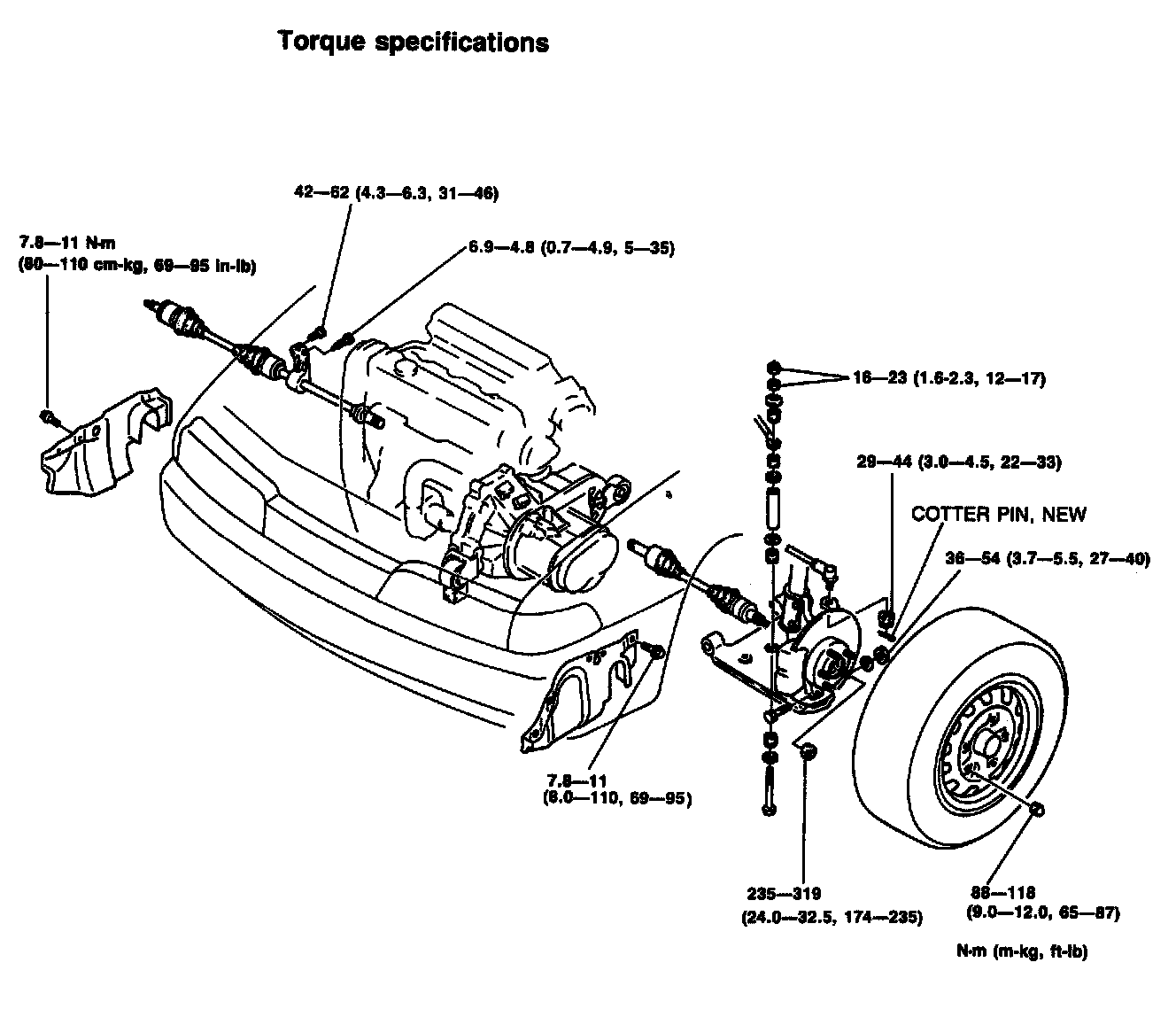

REMOVAL
Remove in the order shown in the figure, referring to Removal Note.

Removal Note

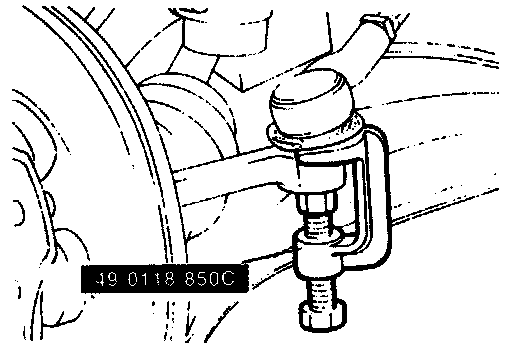

Tie-Rod End





Disconnect the tie-rod end with the SST.

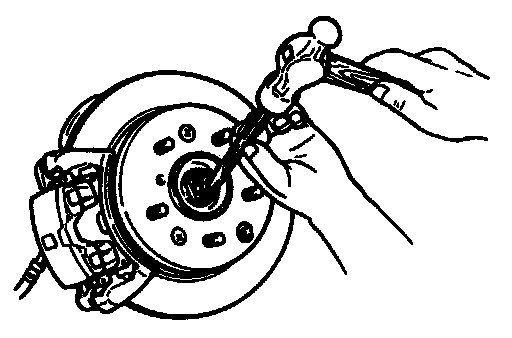

Locknut





Applying the brakes. Raise the locknut tab and loosen it. Do not remove it.

Driveshaft





Disconnect the driveshaft from the transaxle with a prybar.

Note: Do not damage the boot or the oil seal.

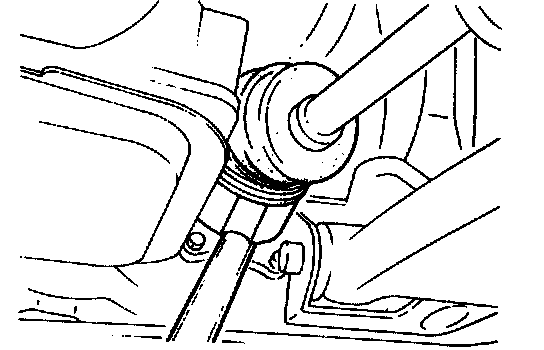

Joint Shaft

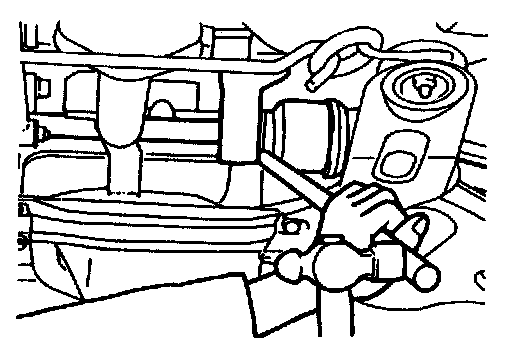

As shown in the figure, insert a pry bar between the driveshaft and the joint shaft and tap on the bar to uncouple them.

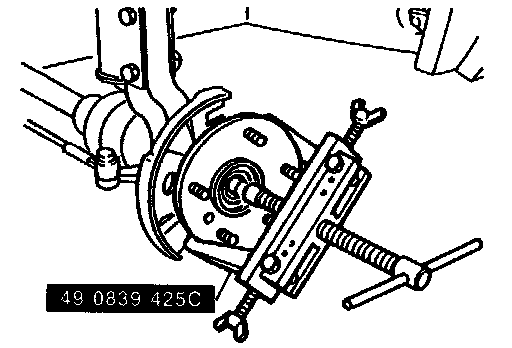

Front Wheel Hub





If the driveshaft is stuck to the front wheel hub and can't be removed, use the SST to push the shaft out.

Differential

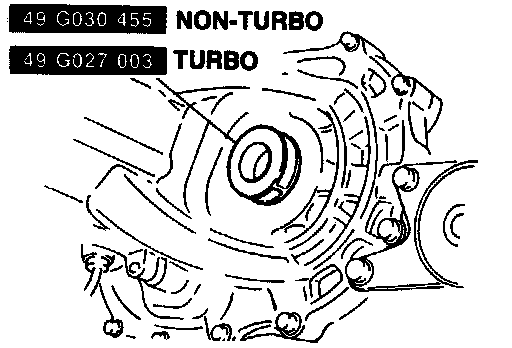

Install the SST to hold the side gear after removing the driveshaft.

INSTALLATION





Install in the reverse order of removal, referring to Installation Note.

Installation Note

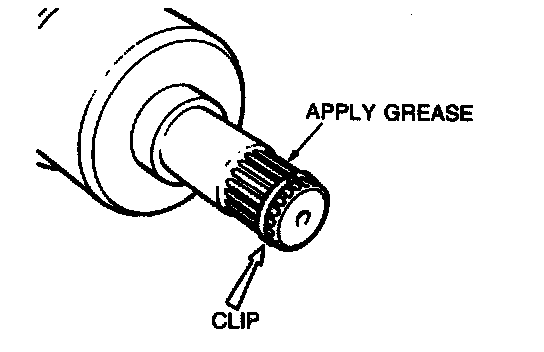

Clip





Install a new clip.

Note
- Before installing the shaft, check the transaxle oil seal for damage.
- Apply transaxle oil to the oil seal lip.

Front Wheel Hub

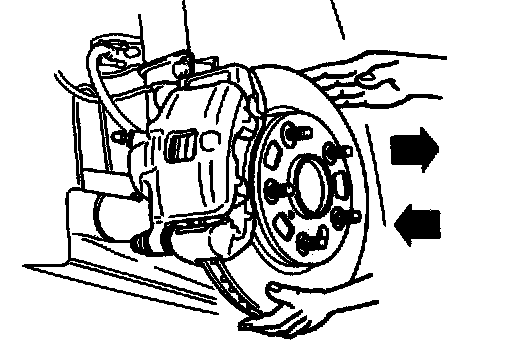

After installation, pull the front wheel hub outward and check that the driveshaft does not come out.

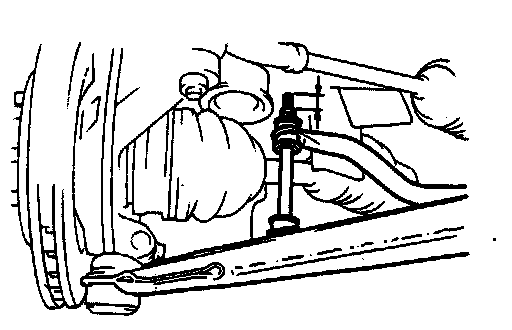

Stabilizer





Lock the nut with 20.1 +/- 2mm (0.79 +/- 0.08 in) of the threads exposed.

Tightening torque: 16-23 Nm (1.6-2.3 m-kg, 12-17 ft-lb)

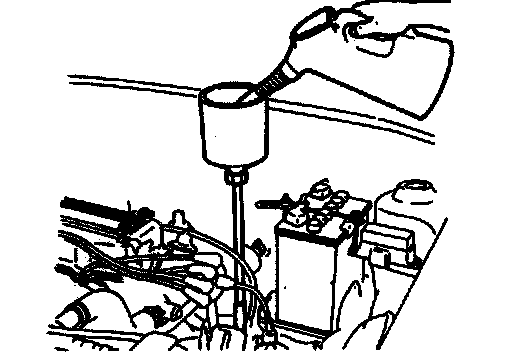

Oil





Add the specified grade and quantity of transaxle oil.
