626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

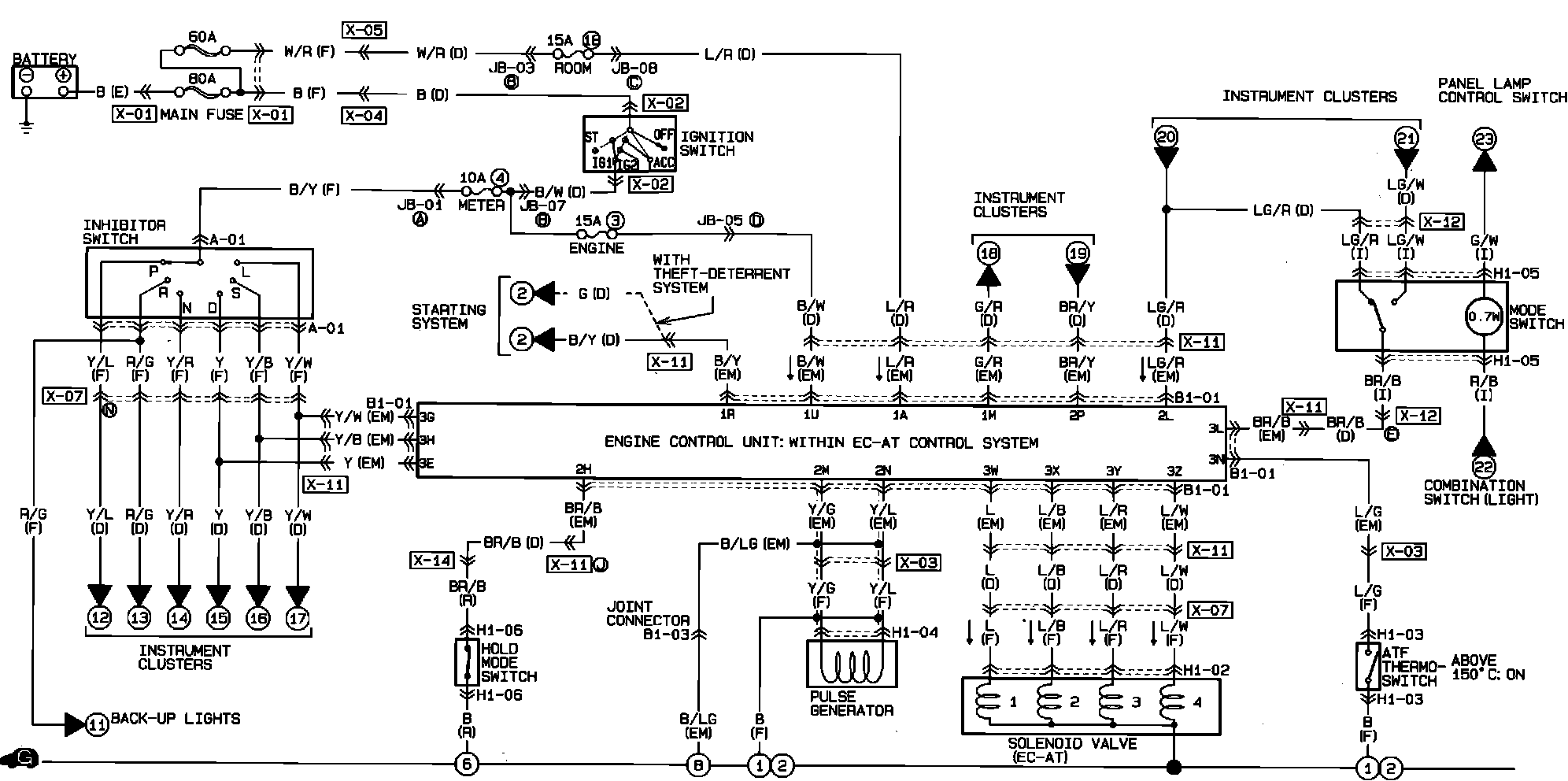

EC-AT Control System. Non-Turbo:
