Removal

REMOVAL

Note: The power steering fluid will leak out when the return hose or the pressure hose is disconnected. Prepare a suitable contalner for it to drain into.





1. Disconnect the negative battery cable.
2. Disconnect the pressure switch connector.
3. Raise the vehicle on a lift or safety stands, and remove the tront wheels.

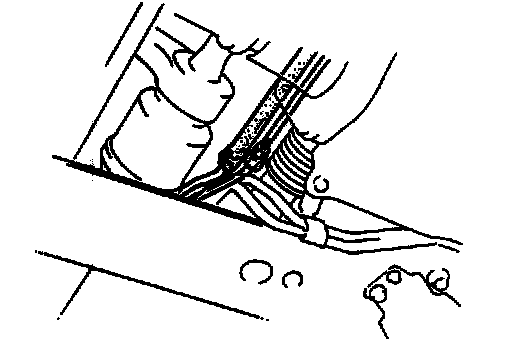

4. Disconnect the power steering hose and pipe.





5. Disconnect the tie-rod ends from the knuckles with the SST.

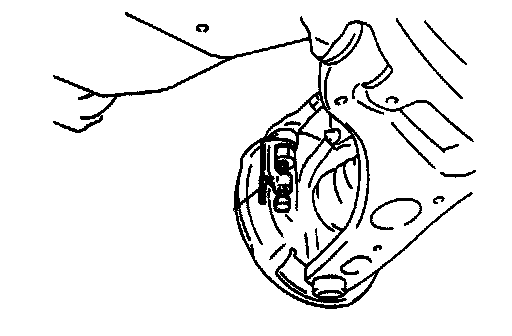

6. Remove the steering shaft universal joint.

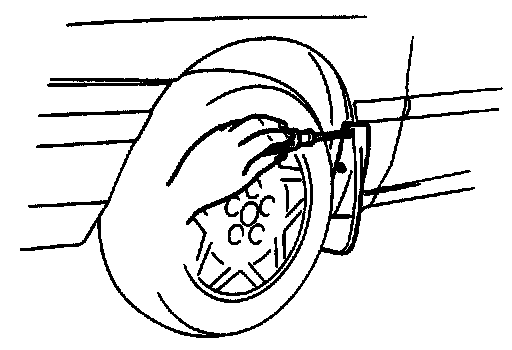

7. Remove the mud flap.

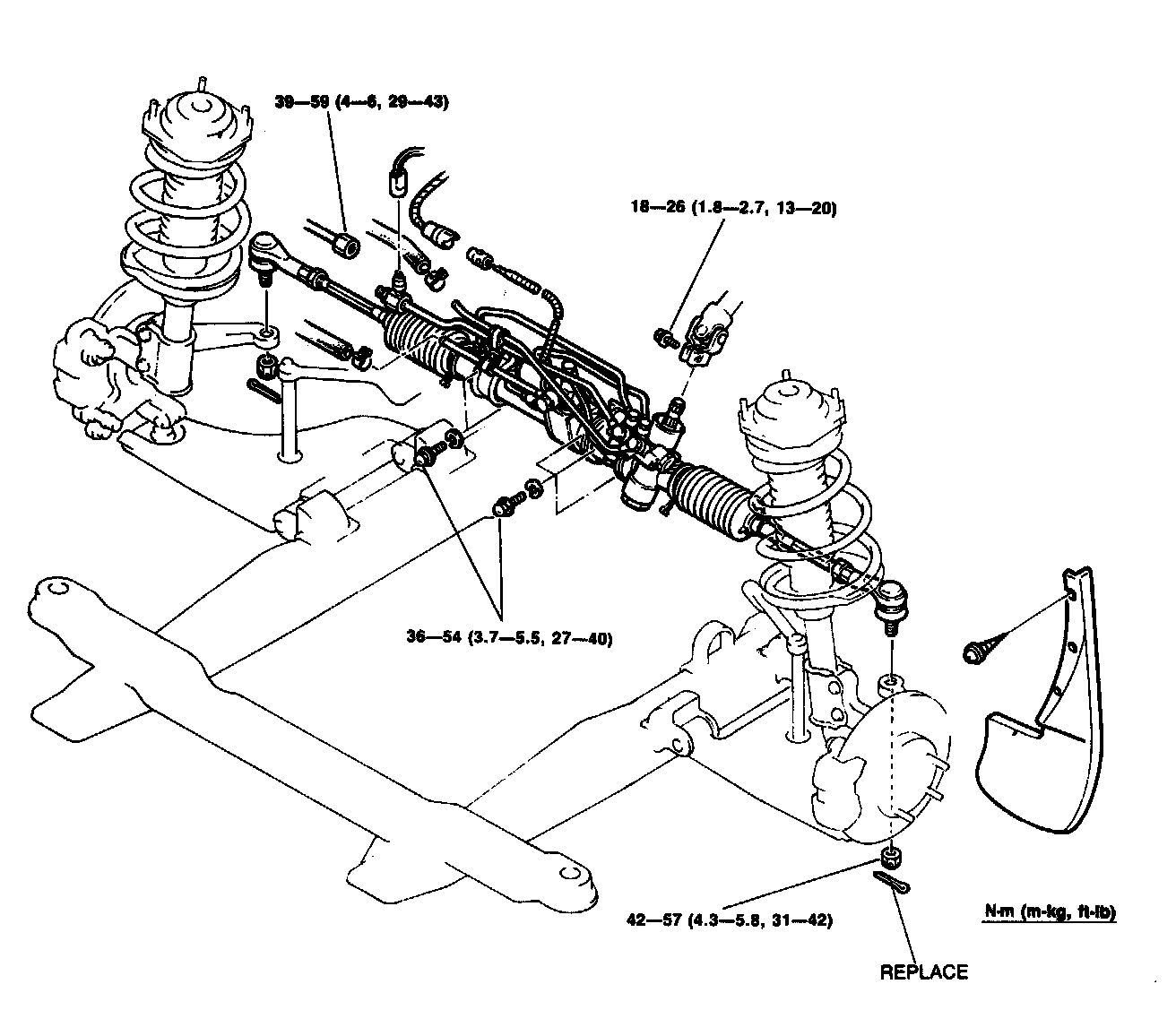

8. Remove the mounting bolts and the steering gear.
9. Remove the steering gear.

INSTALLATION





Install in the reverse order of removal.
