Home >> Mazda >> 1992 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Locations

Courtesy Lamp: Locations

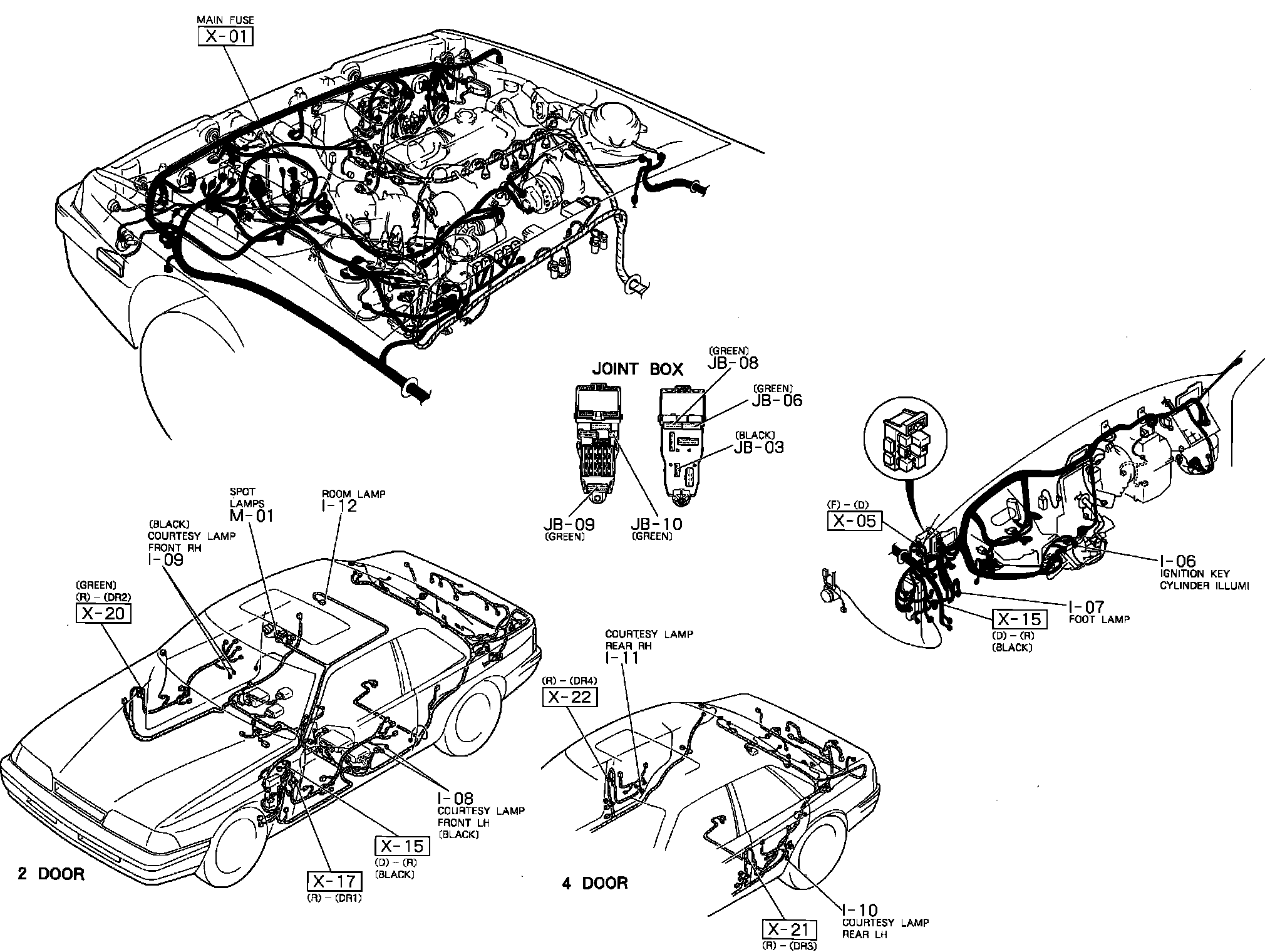

Courtesy, Room, Foot, Spot And Ignition Key Cylinder Illumination Lamps. Harness And Connector Locations:
