Home >> Mazda >> 1992 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Glove Box Lamp Switch >> Locations

Glove Box Lamp Switch: Locations

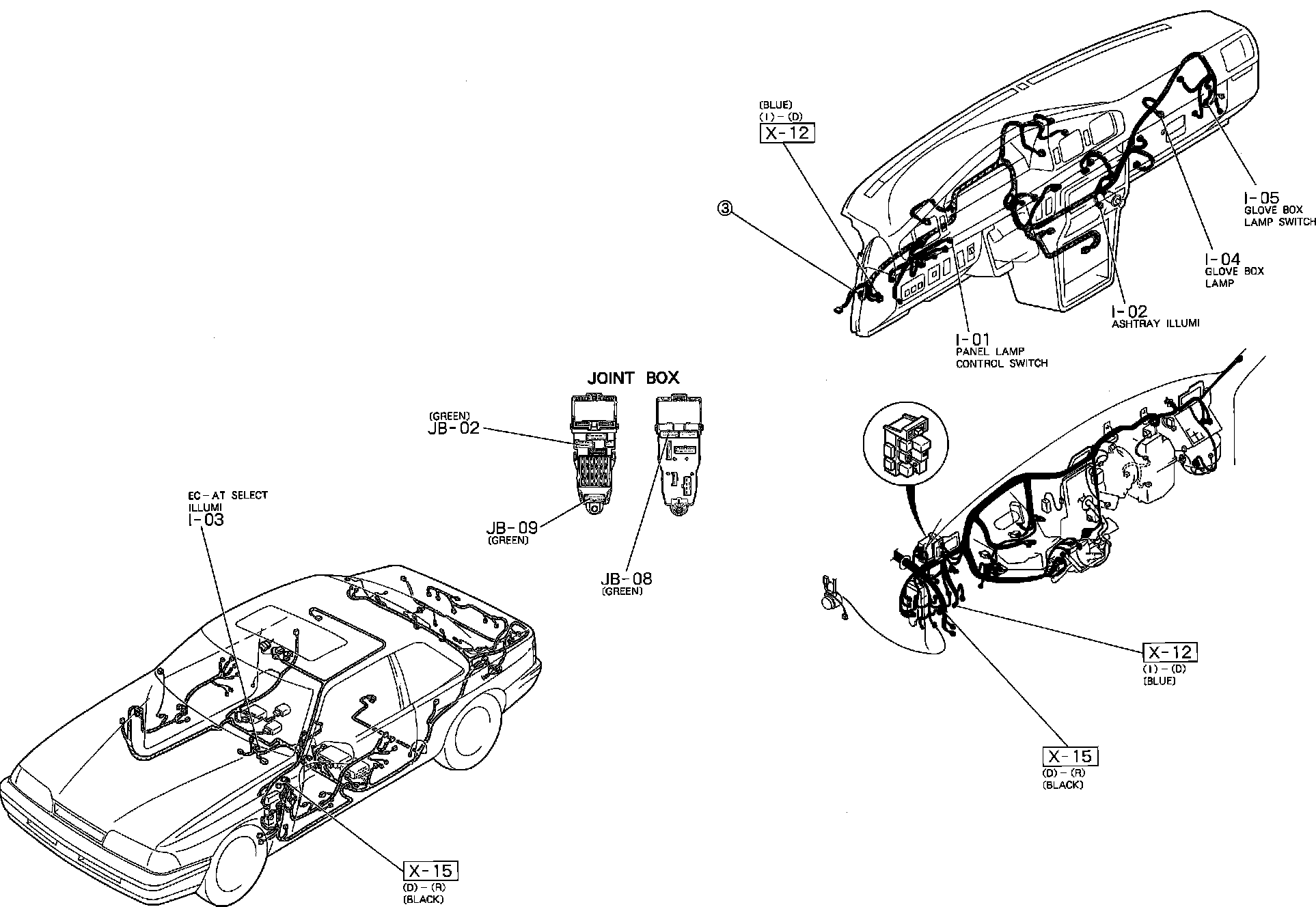

Illumination And Glove Box Lamps. Harness And Connector Locations:
