Initial Inspection and Diagnostic Overview
ADDITIONAL (CONDENSER) FANOn-Vehicle Inspection
1. Disconnect the condenser fan connector.

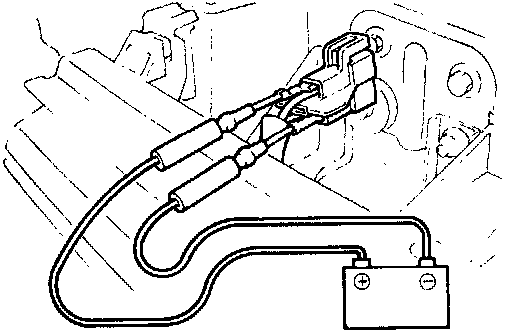

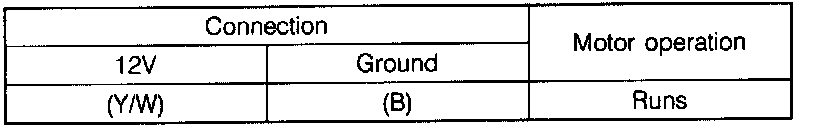

2. Check that the condenser fan motor runs when connecting battery voltage to terminal-wire (Y/W) and grounding terminal-wire (B).
If not as specified, replace the condenser fan.
