Condenser Fan Motor Relay: Testing and Inspection

Inspection of Additional Fan Relay
(Turbo with MTX and all EC-AT)

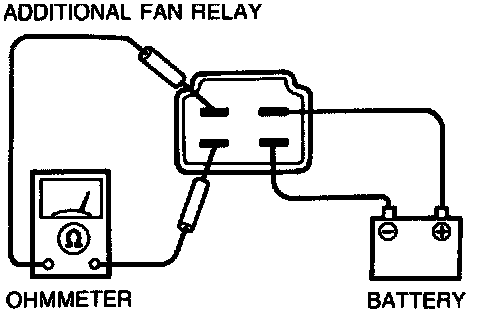

1. Connect the additional fan relay, battery, and an ohmmeter as shown in the figure.
2. First check that there is continuity, then disconnect the battery and check that there is no continuity.
3. If the continuity is not specified, replace the relay.
