Initial Inspection and Diagnostic Overview

Inspection
1. Remove the undercover and glove box.
2. Disconnect the blower fan motor connector.

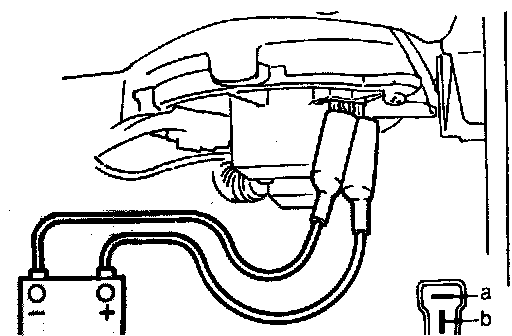

3. Check that the blower fan motor runs when connecting battery voltage to terminal a and grounding terminal b.
4. If blower fan motor does not run, replace it.
