626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Type 2
Type 2

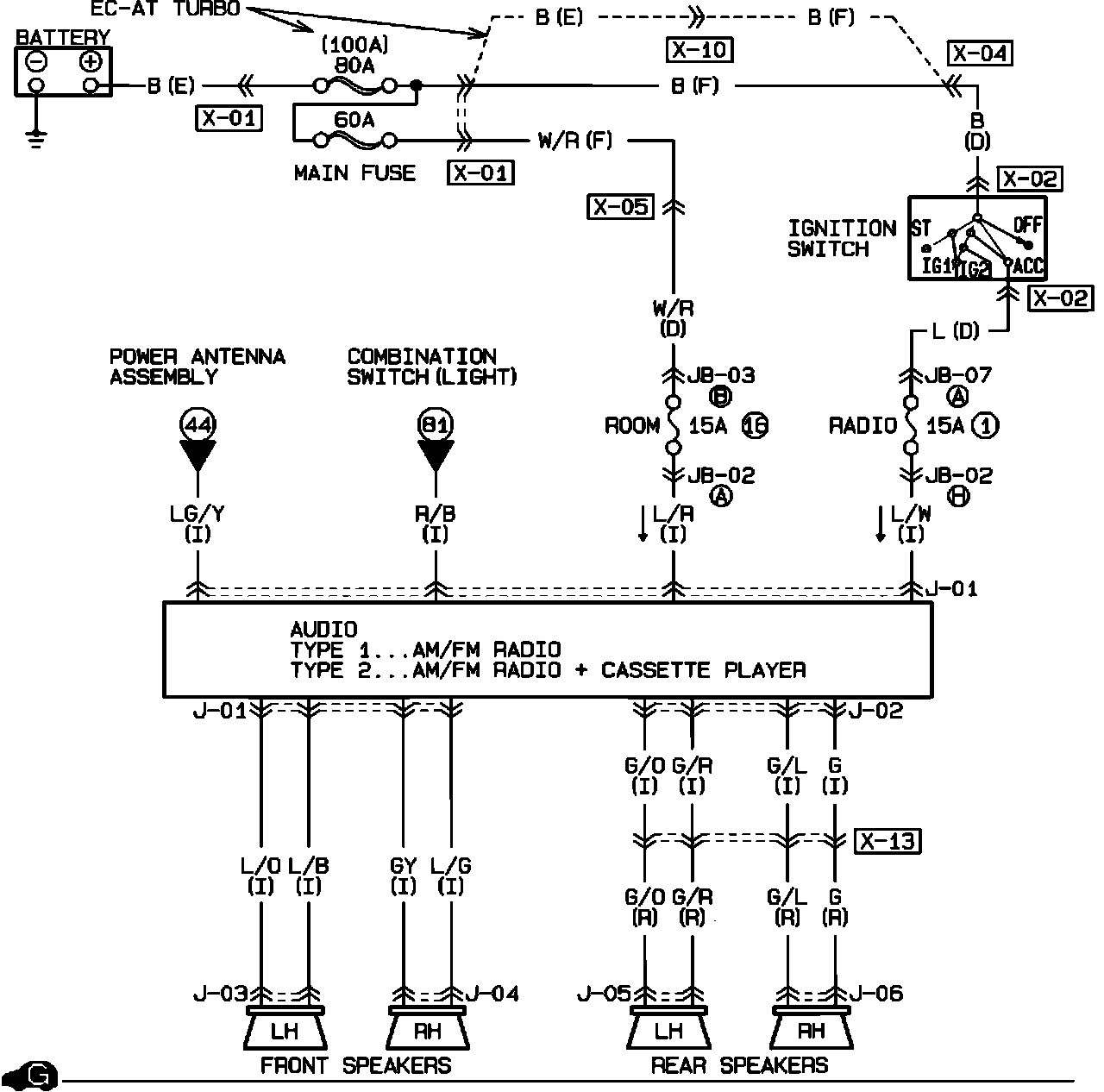

Radio (Type 1, 2).:
