Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

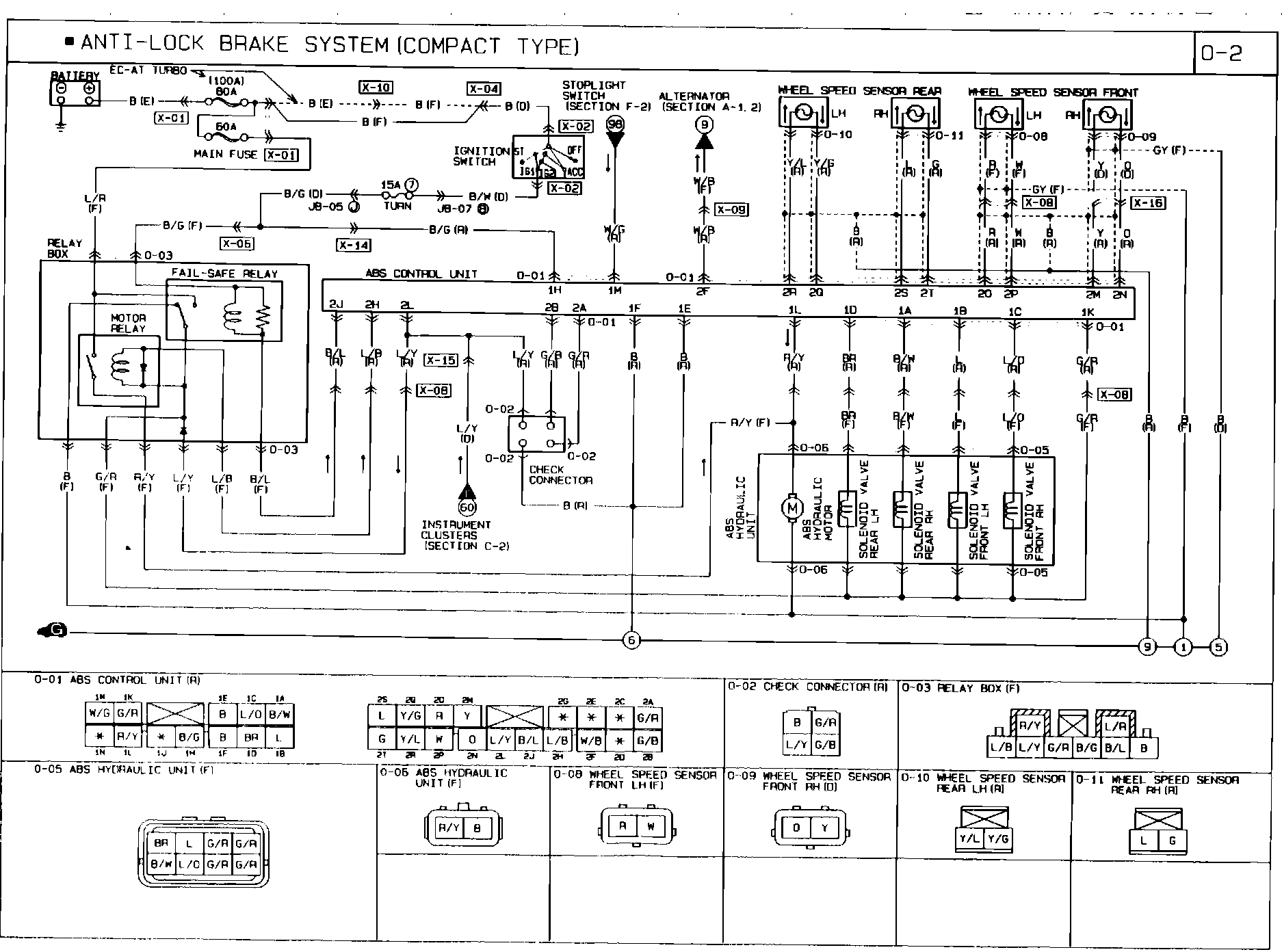

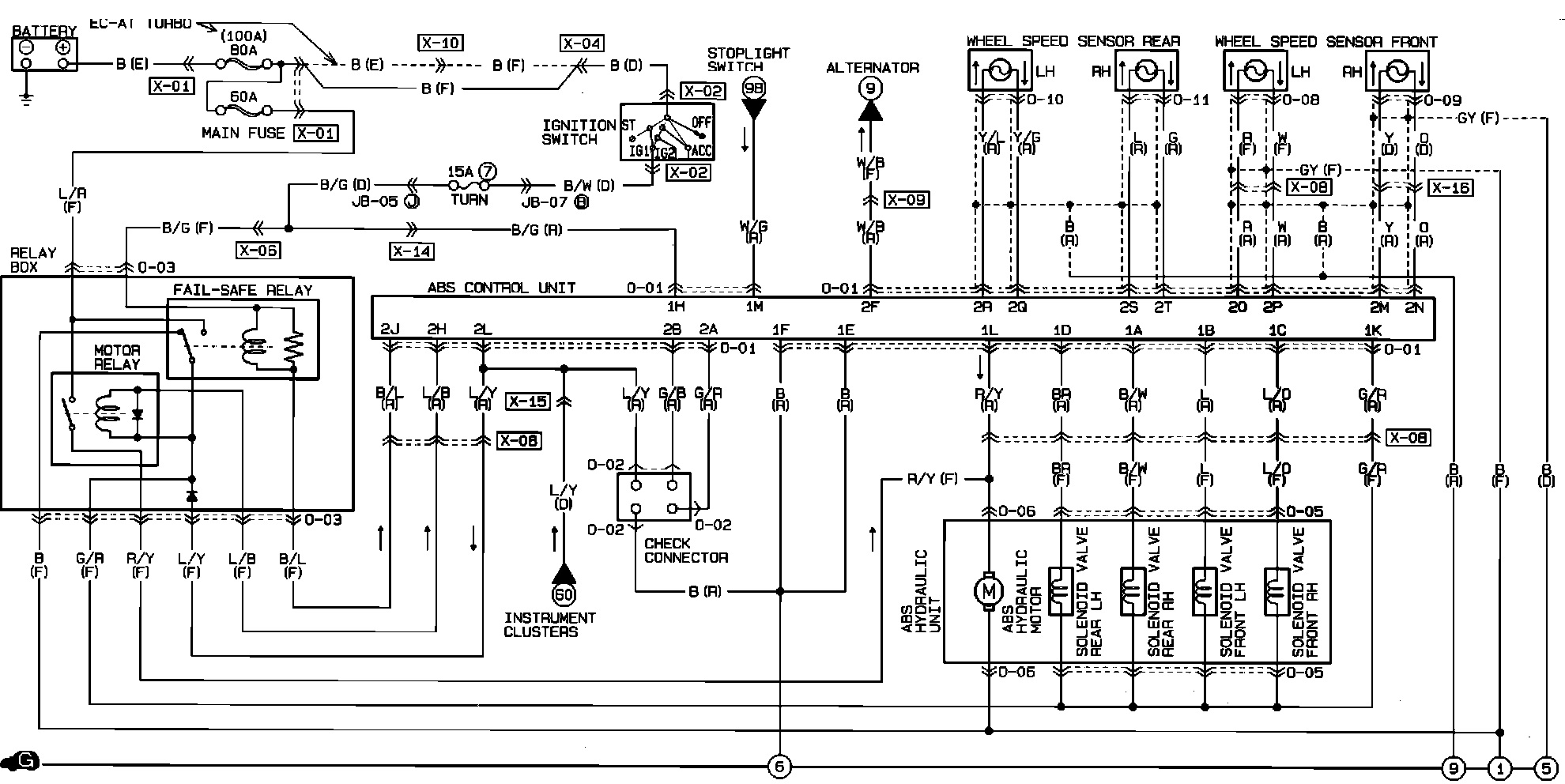

Fig. 14 Anti-lock Brake System Wiring Diagram:
Anti-Lock Brakes:
