Shift Linkage: Service and Repair

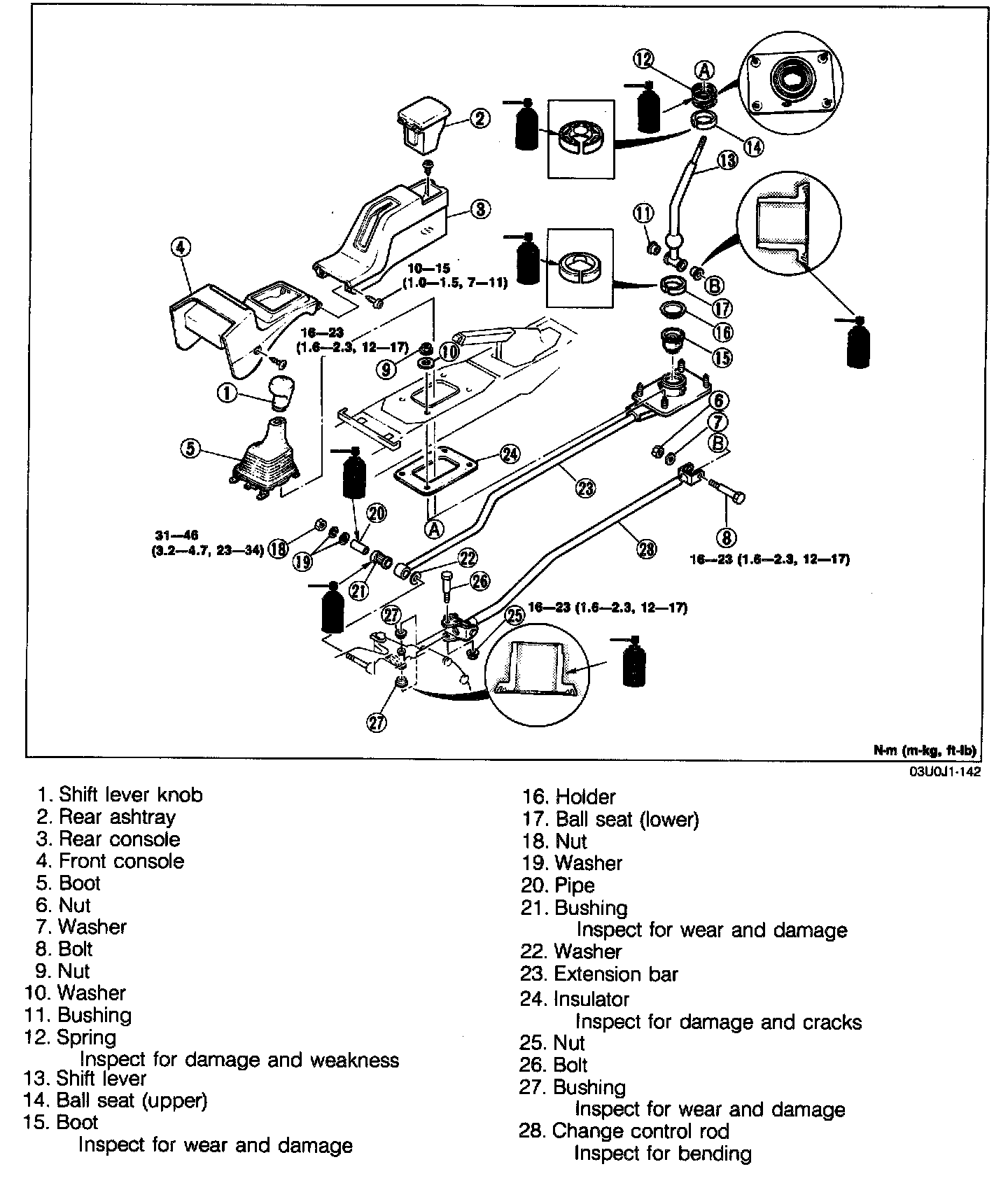

1. Disassemble in the order shown in the image.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to Assembly Note.




Assembly Note
Extension bar
1. Connect the extension bar onto the transaxle, then mount it to the floor.

Tightening torque: 16 - 23 N-m (1.6 - 2.3 m-kg, 12 - 17 ft-lb)




Spring
1. Verify that the hooked part of the spring is properly seated in the bracket groove.
