Fuel Pressure Control Solenoid: Locations

FUEL TANK AND COMPONENTS

Fuel Tank Assembly:

UNDER HOOD COMPONENTS

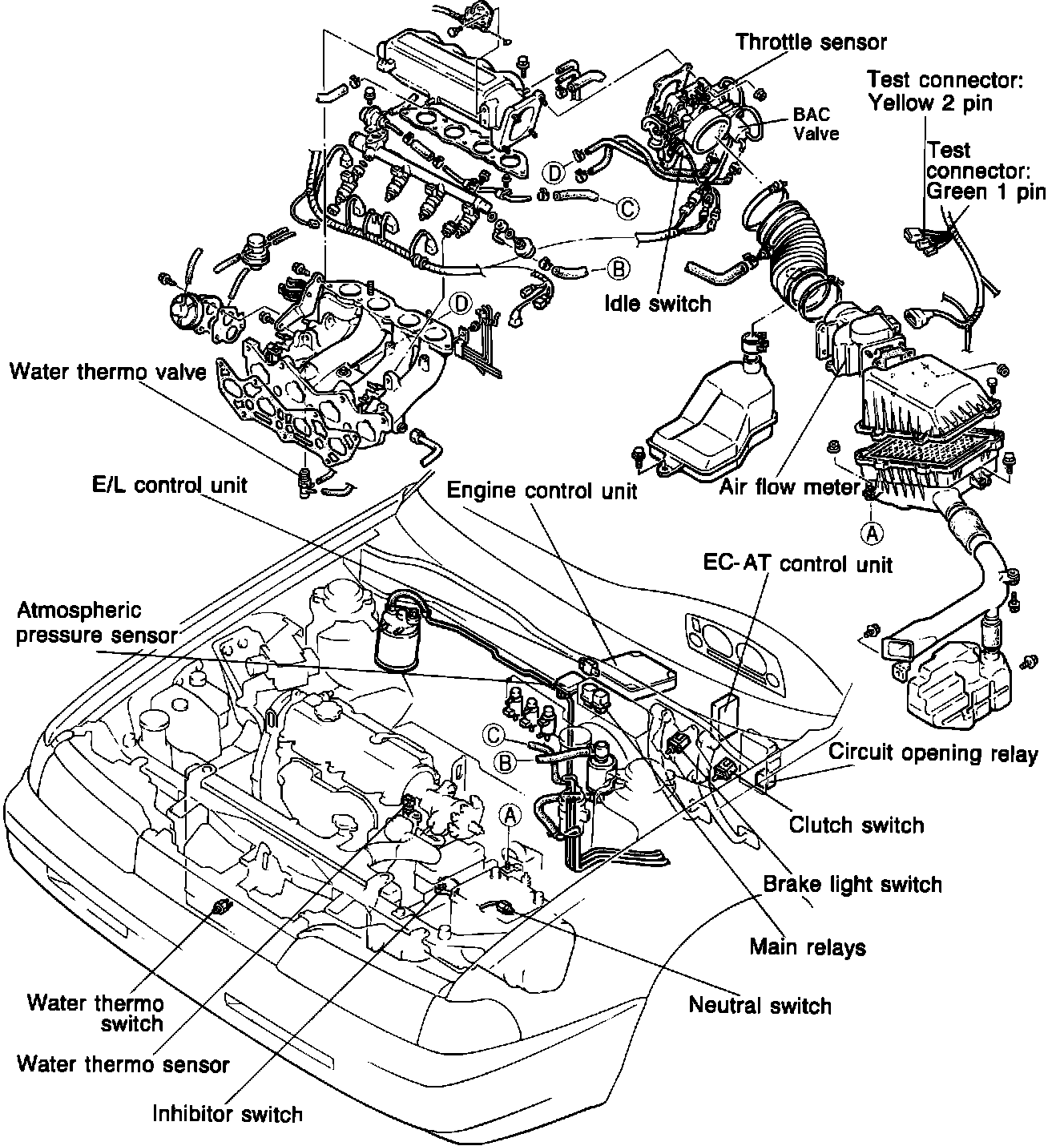

Fig. 12 Component Locations:

BYPASS AIR CONTROL (BAC) VALVE
On throttle body

CHECK AND CUT VALVE
Under vehicle, near fuel tank.

FUEL FILTER
Left rear engine compartment.

FUEL INJECTORS
Between fuel rail and intake manifold, beneath dynamic chamber.

FUEL PRESSURE REGULATOR
End of fuel rail.

FUEL PUMP
Inside fuel tank.

FUEL PUMP RELAY (CIRCUIT OPEN RELAY)
Behind driver side kick panel.

FUEL RAIL (DELIVERY PIPE)
On intake manifold where manifold bolts to cylinder head.

PULSATION DAMPER
End of fuel rail, opposite pressure regulator.

THROTTLE BODY
At dynamic chamber air inlet.
