Home
>>
Mazda
>>
1991
>>
929 V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Technical Service Bulletins
>>
Cruise Control, A/C, Engine Controls - Wiring Updates
>>

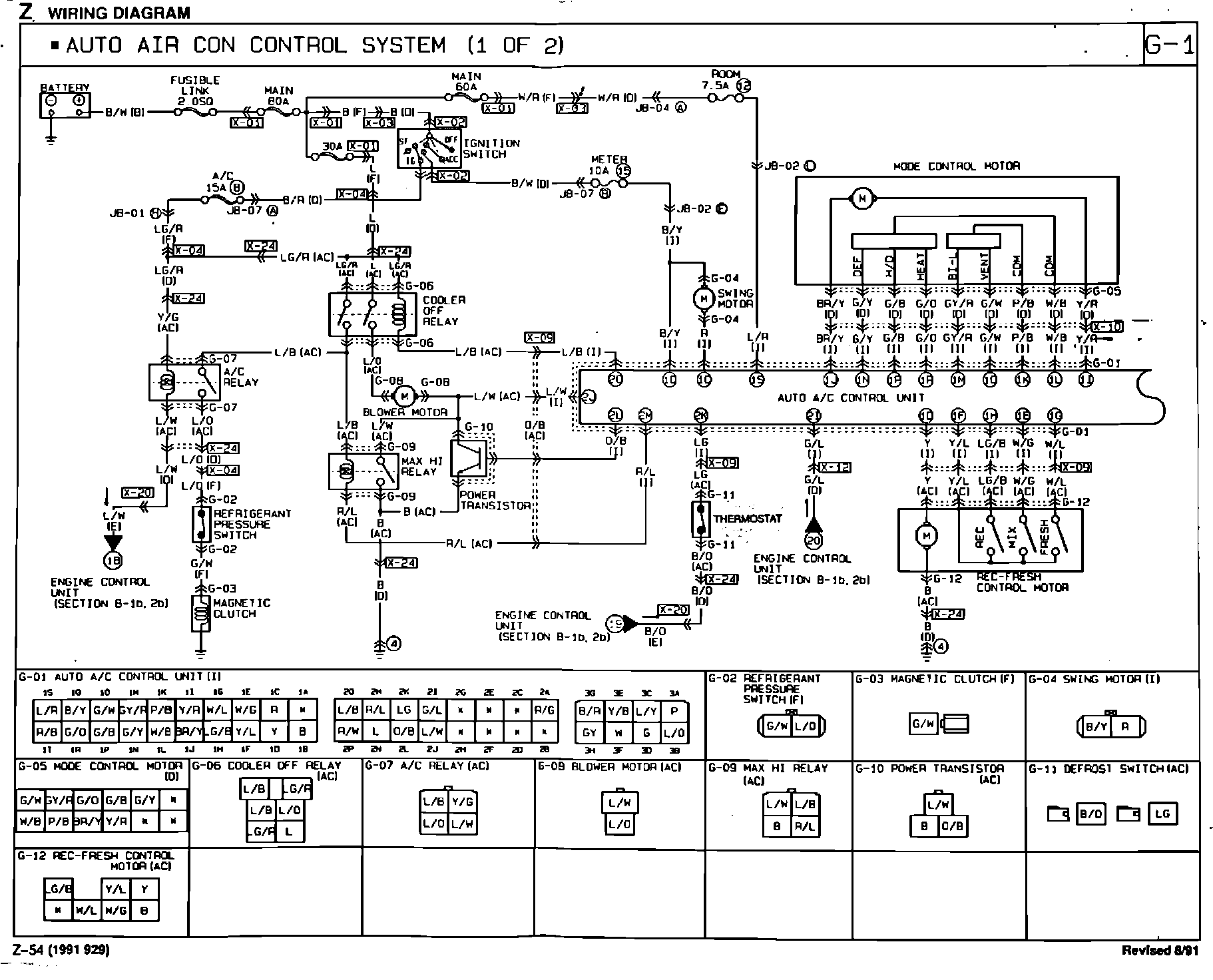

1991 929 A/C Control System Wiring Diagram
1991 929 A/C Control System Wiring Diagram
