Connector Views
Connector Views

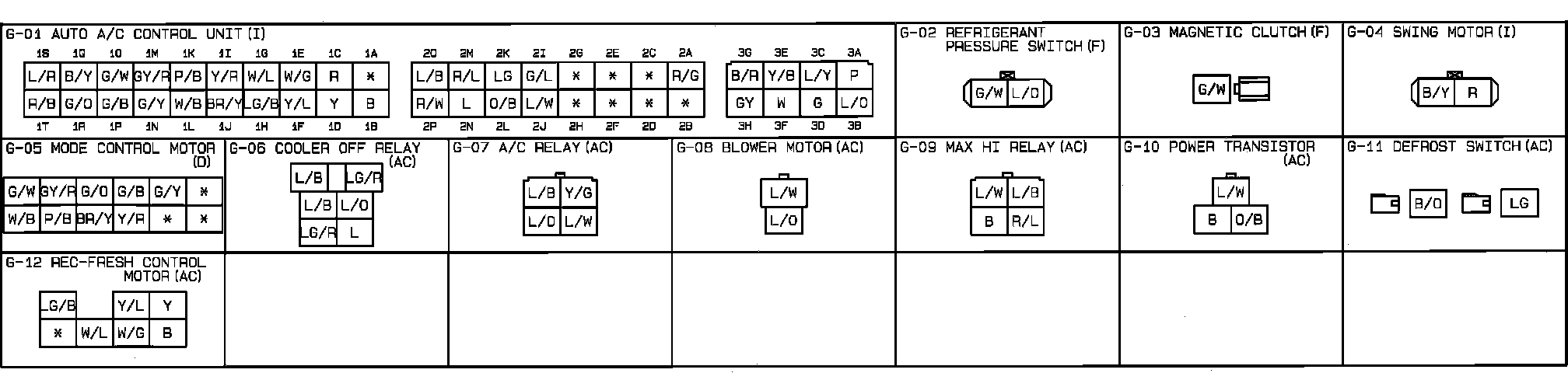

Auto Air Conditioning Control System. Connector Identification:

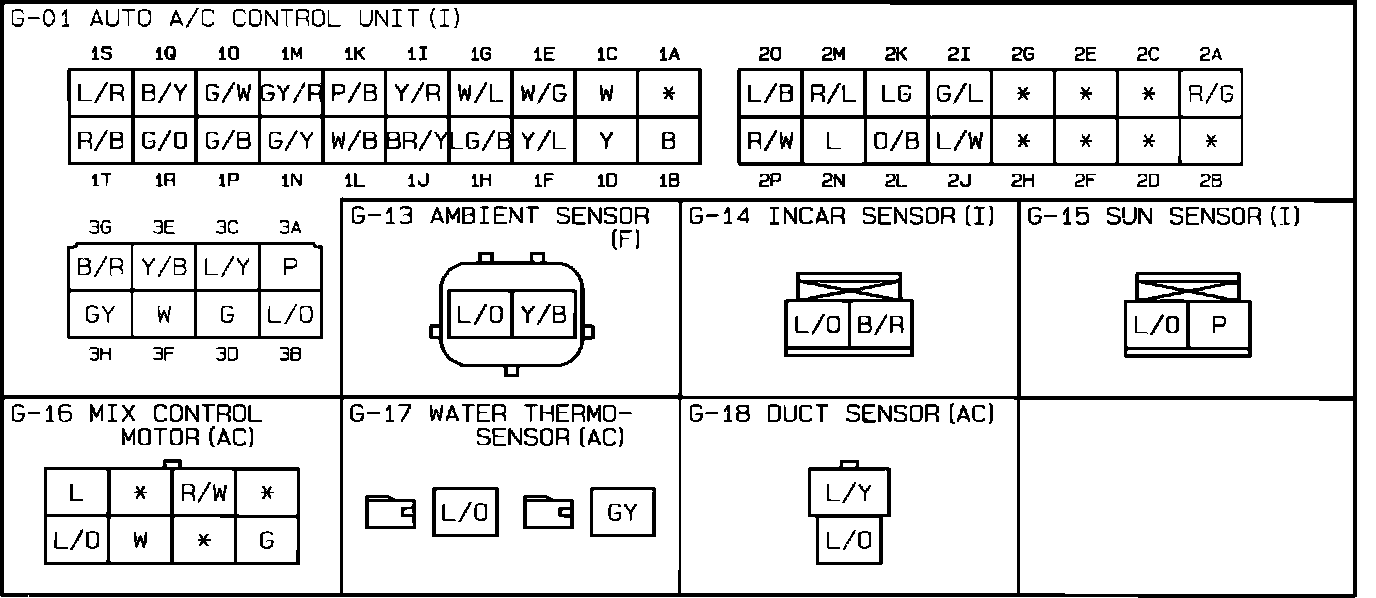

Auto Air Conditioning Control System. Connector Identification:
