Shift Interlock Solenoid: Testing and Inspection

SHIFT-LOCK ACTUATOR

Inspection

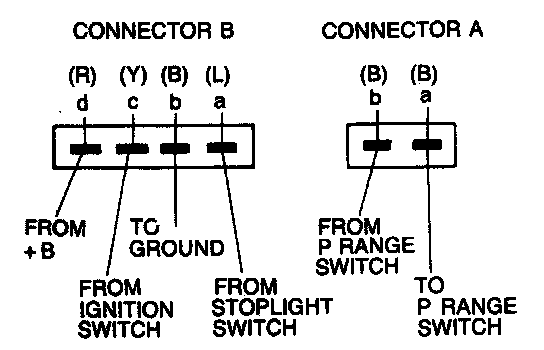

Terminal voltage and continuity





1. Remove the screws and remove the selector lever knob.
2. Remove the front console.

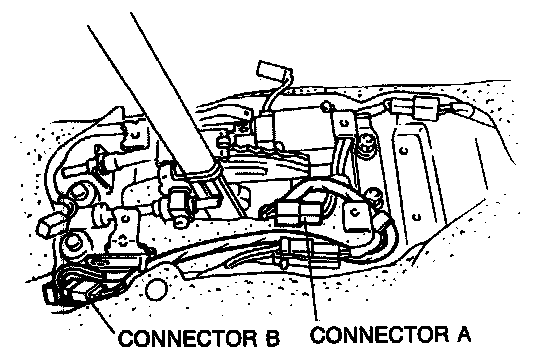

Caution: Disconnect connector B to check continuity between terminal b (harness side) and a ground.

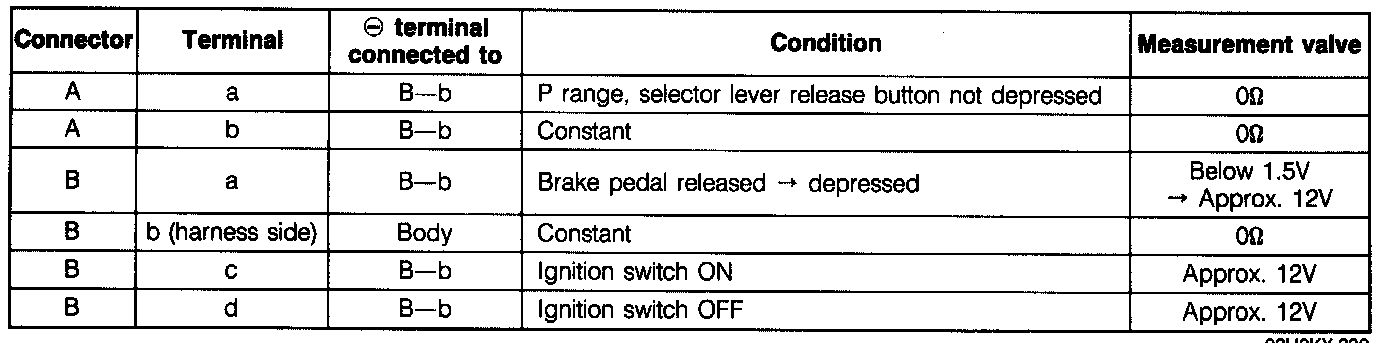

3. Turn the ignition switch ON, and check terminal voltages and continuity, referring to the chart above.
4. If not as specifed, repair the wire harness and/or shift-lock actuator.





5. Install the front console.
6. Install the selector lever knob and tighten the screws.

Tightening torque: 1.5-2.9 Nm (15-30 cm-kg, 13-26 in-lb)

7. Check for correct operation of the shift-lock system.
