Home >> Mazda >> 1991 >> 626 L4-2184cc 2.2L SOHC Turbo F2 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations

Power and Ground Distribution: Locations

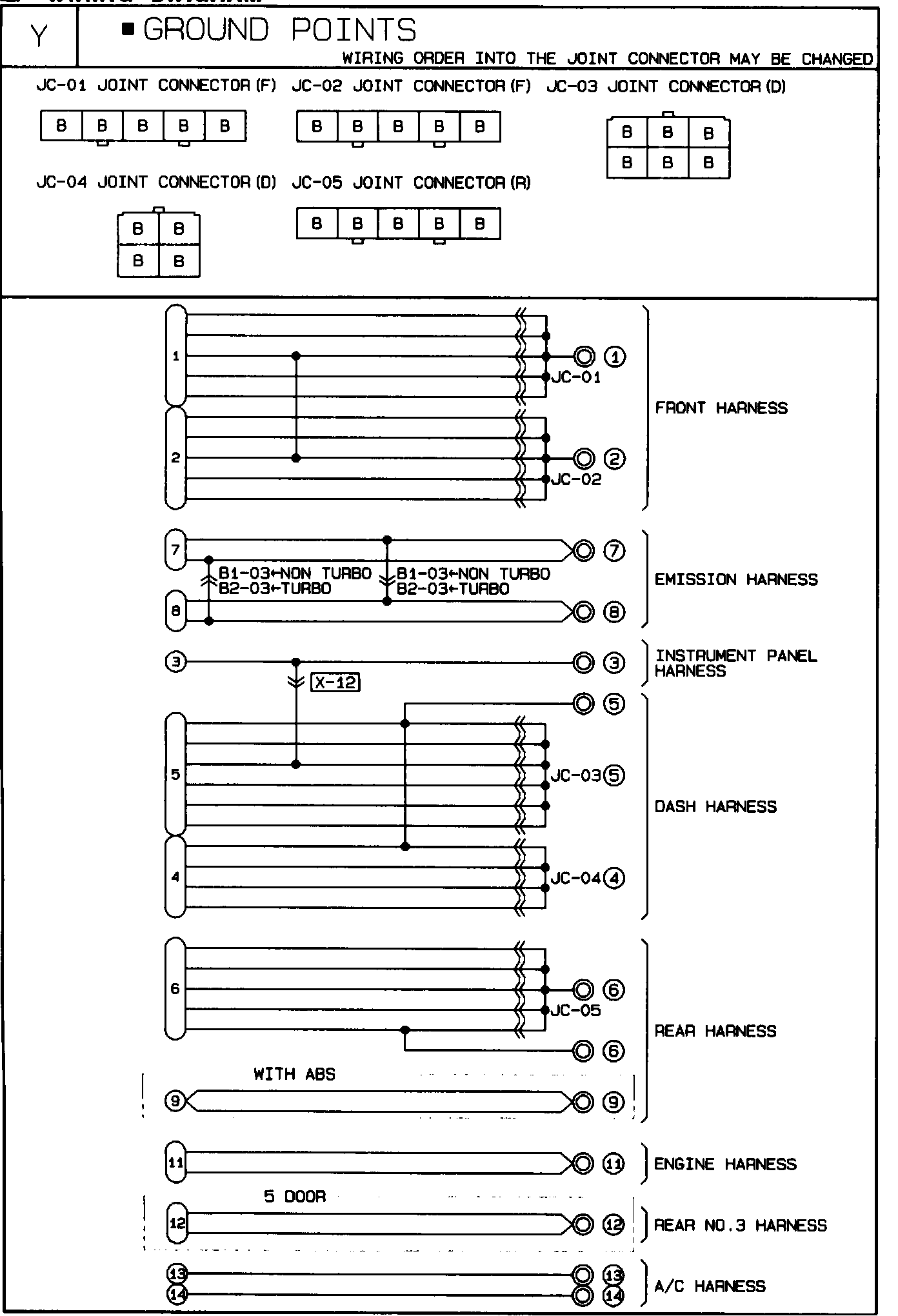

Ground Points

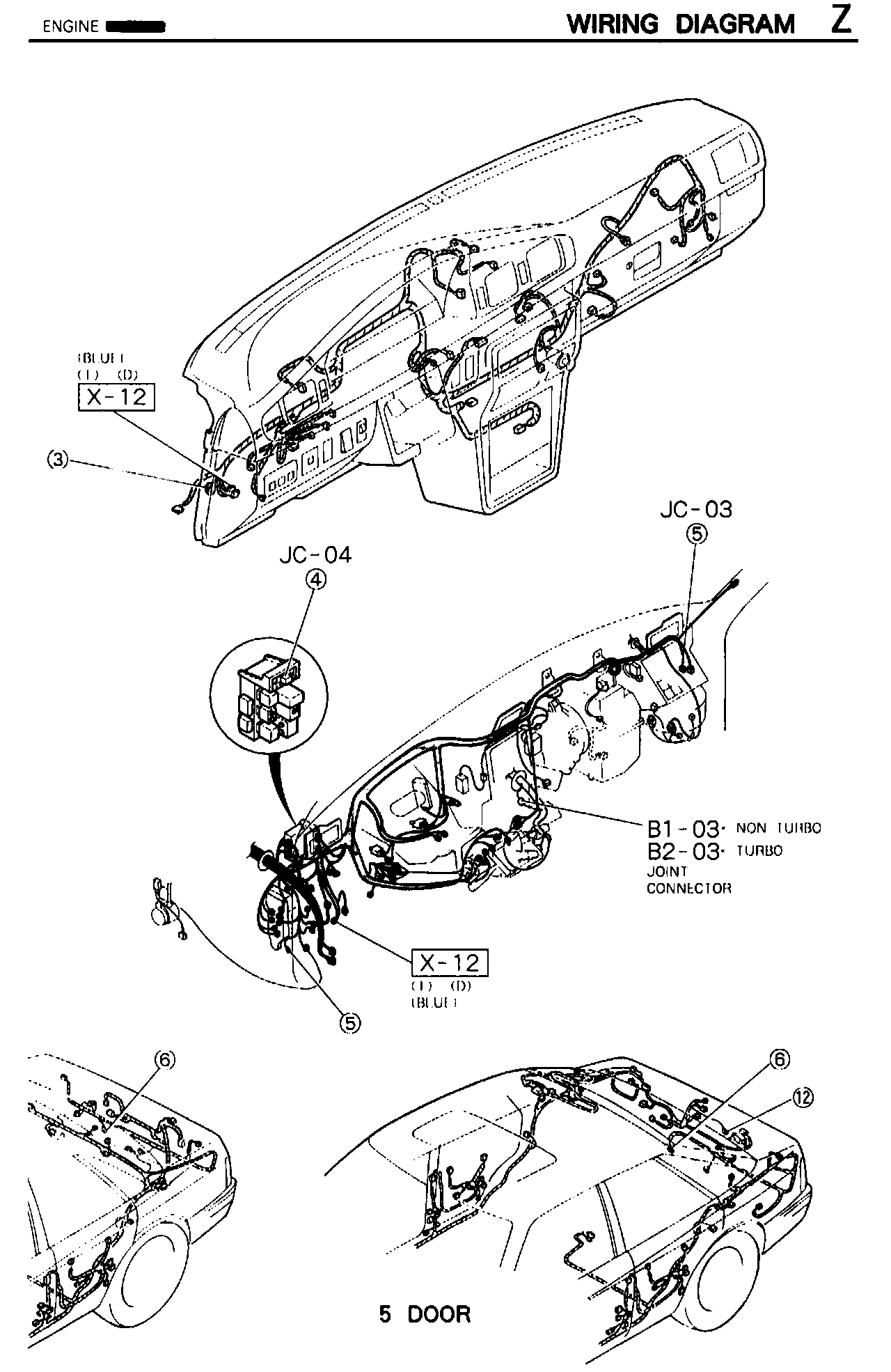

Ground Locations
