Mazda
>>
1991
>>
626 L4-2184cc 2.2L SOHC Turbo F2
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

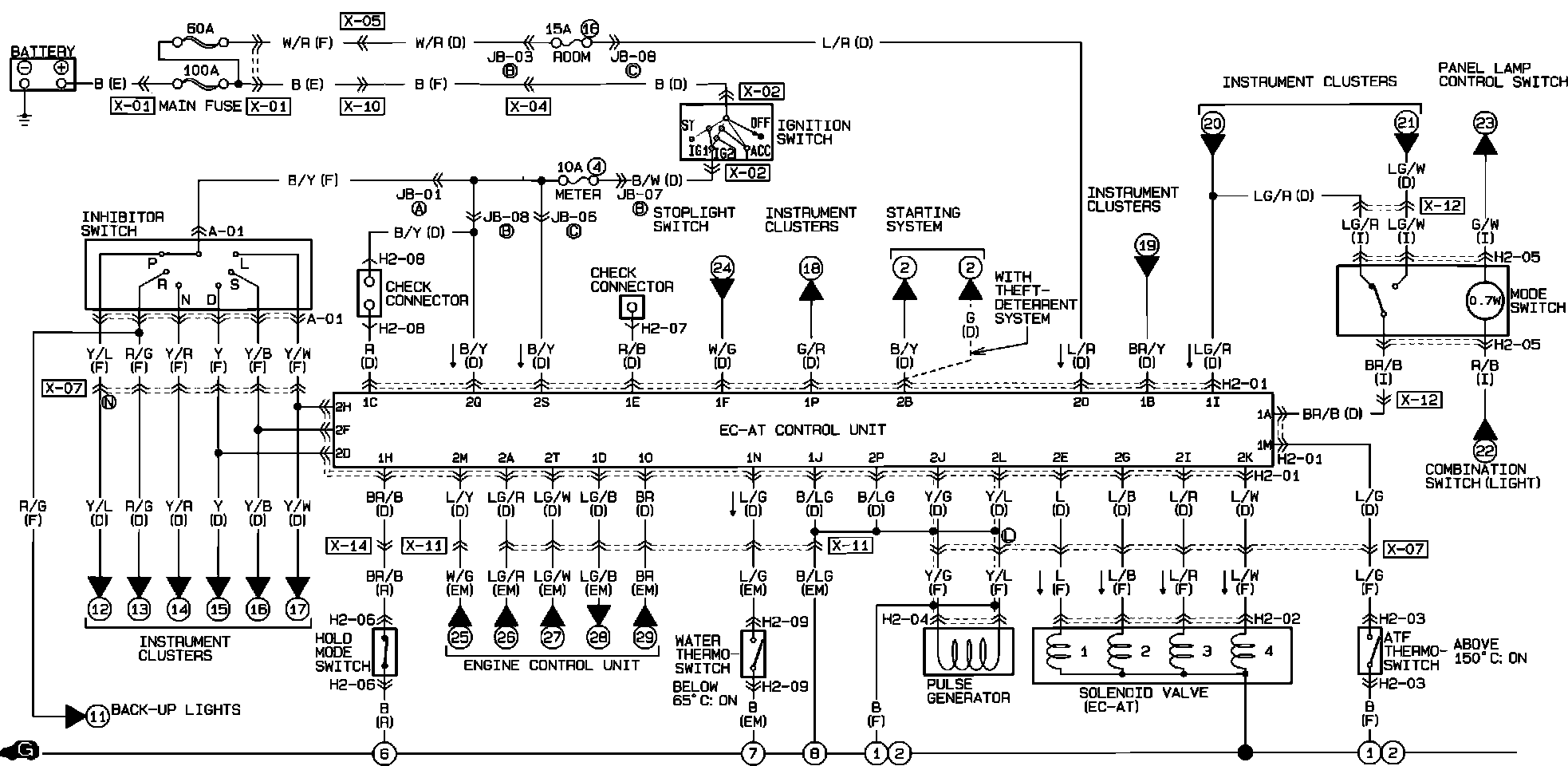

Shift Solenoid, A/T
Shift Solenoid, A/T
Control System. EC-AT. Turbo.:
