Home >> Mazda >> 1991 >> 626 L4-2184cc 2.2L SOHC Turbo F2 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> Locations

Compact Disc Player (CD): Locations

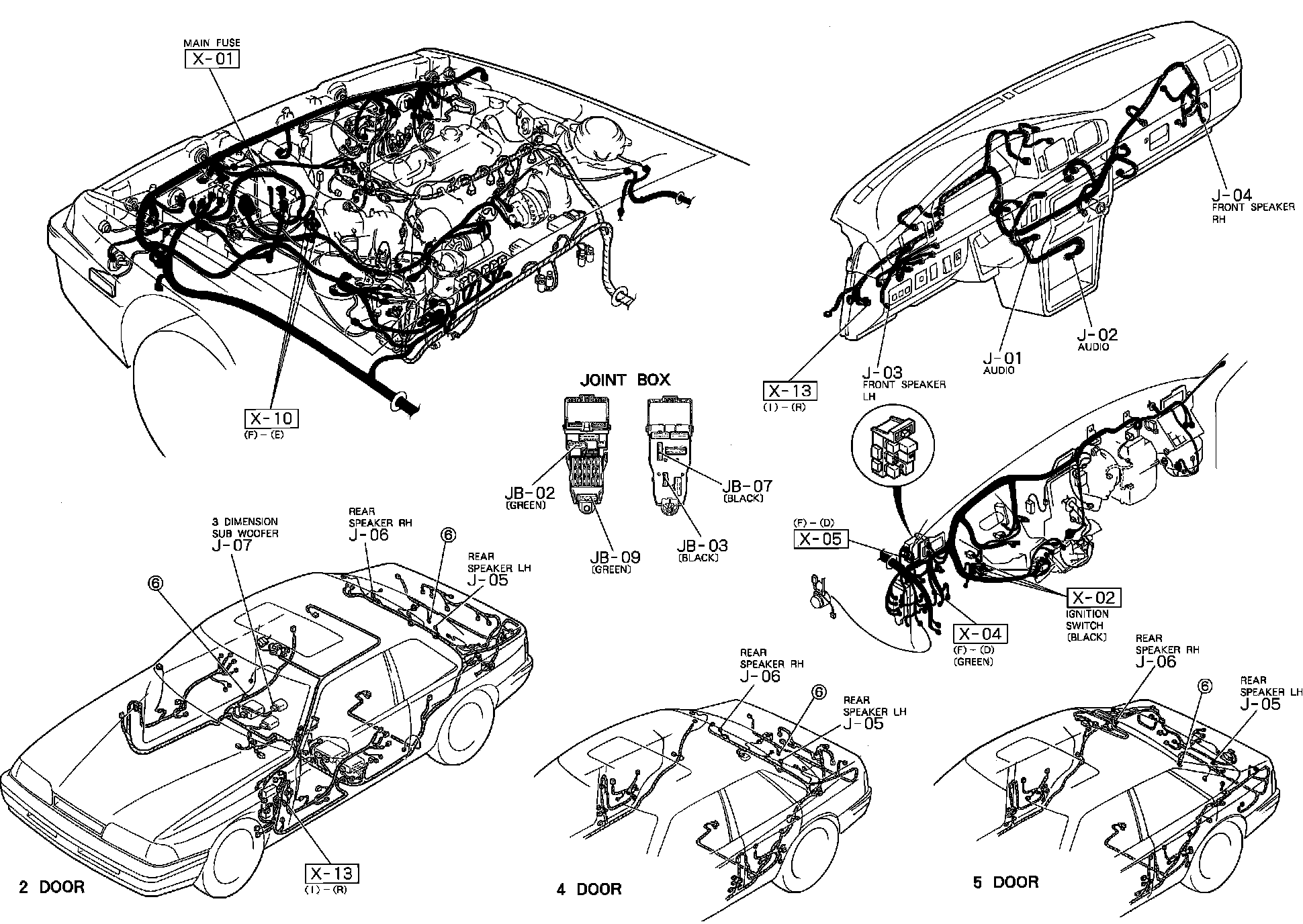

Radio (Type 4). Harness And Connector Locations:
