Shift-Lock System Diagnostic Chart
Shift-Lock System Diagnostic Chart

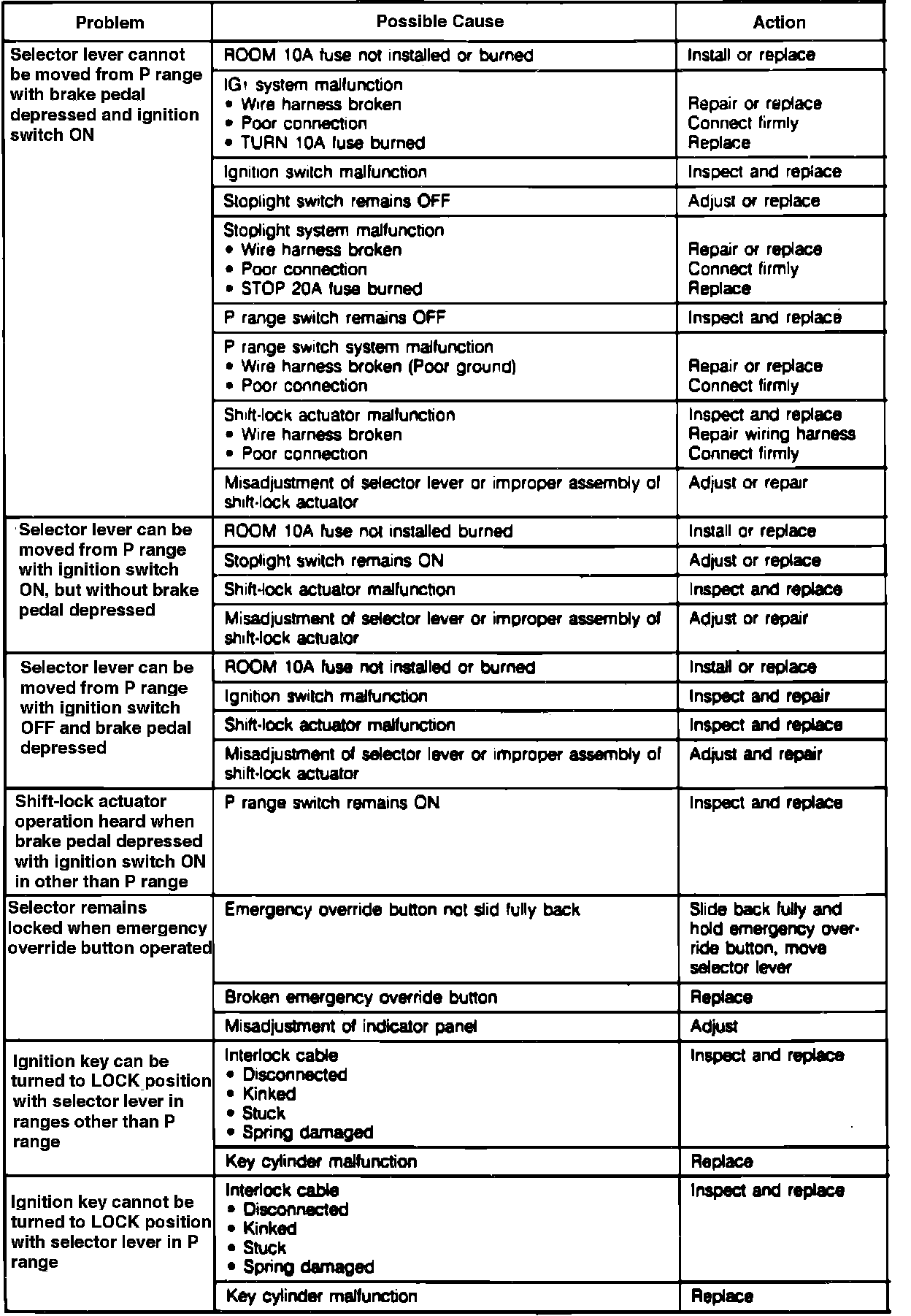

Fig. 5 Shift-lock System Diagnostic Chart:
