All Wheel Drive

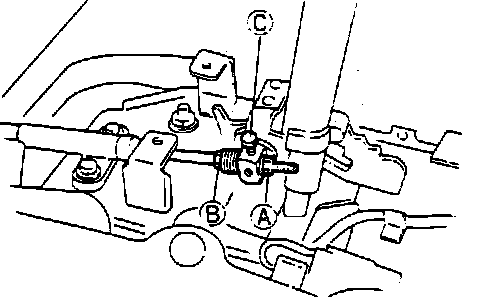

Fig. 2 Selector Lever Adjustment:

1. Loosen locknuts A, B and C, Fig. 2.
2. Shift selector lever to P range and shift transmission to P range by moving manual shaft of transmission.
3. Torque locknut C to 67-96 inch lbs.
4. Turn nut by hand until locknut A touches spacer lightly.
5. Torque locknut B to 67-96 inch lbs.
6. Ensure there is a click in each range when shifted through ranges.
