Home >> Mazda >> 1991 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

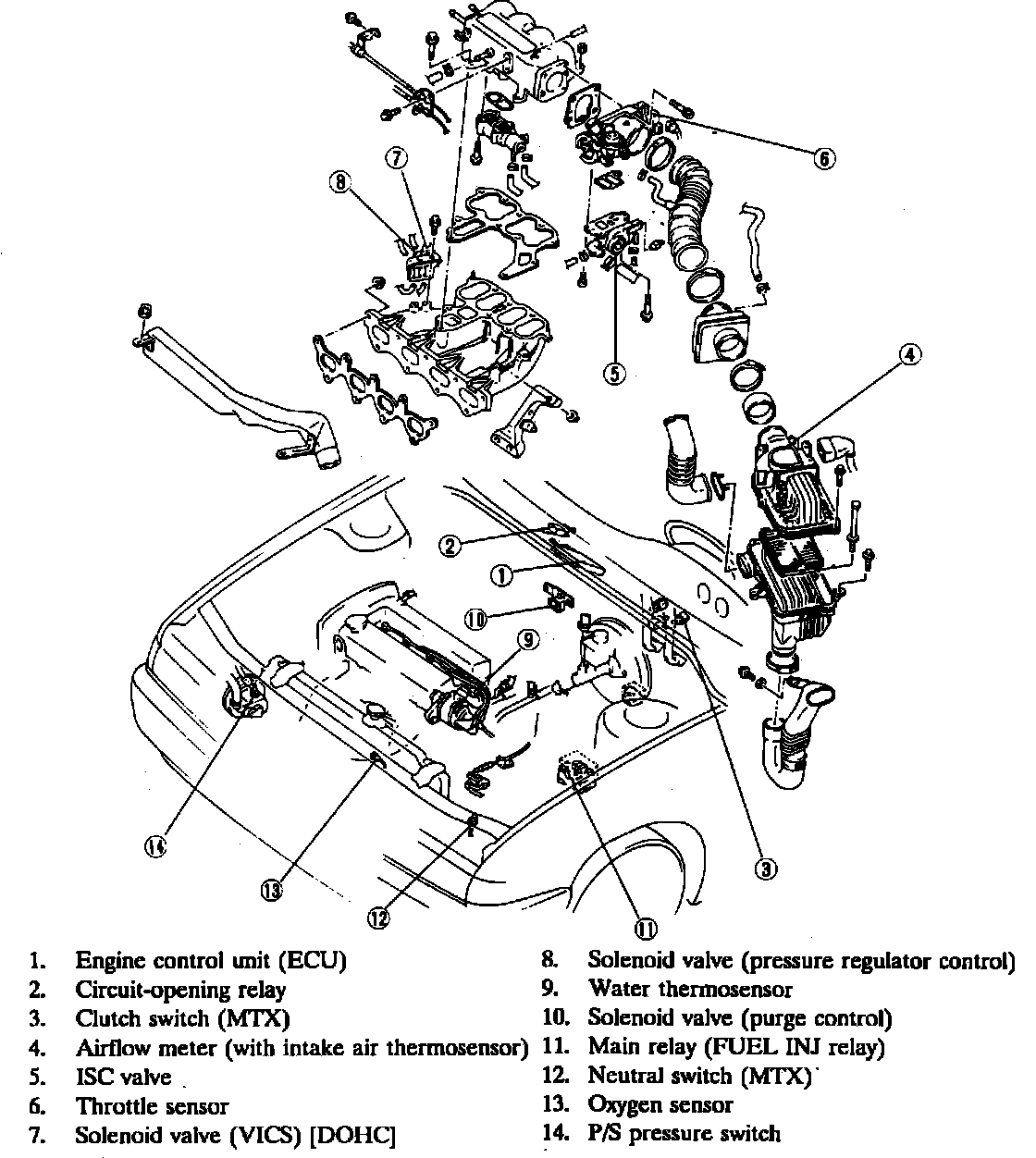

Fuel System (Control) Component Locations:




LH Side Of Engine Compartment
