Dashboard / Instrument Panel: Service and Repair

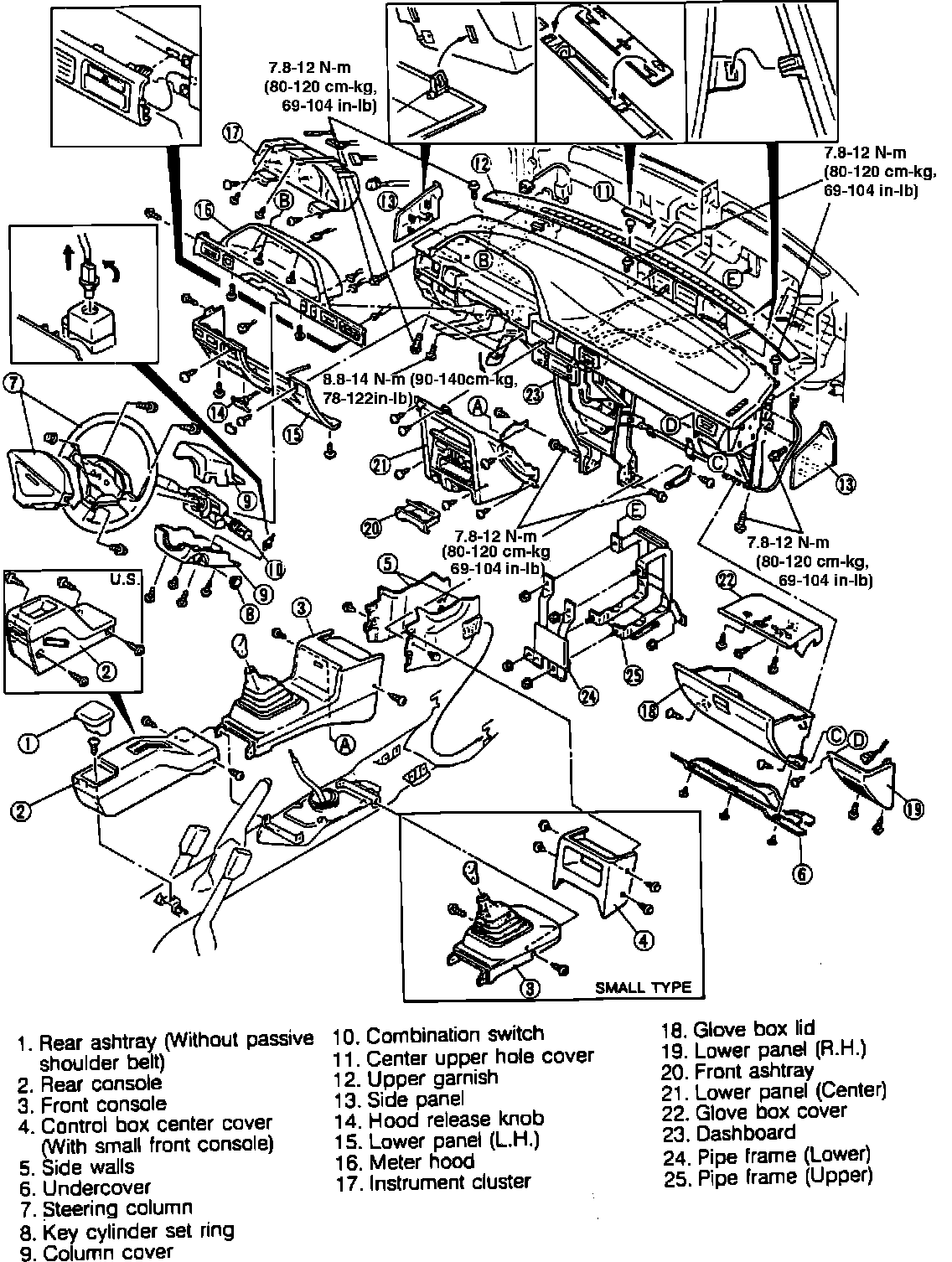

Fig. 16 Exploded View Of I/P:

Disconnect battery ground cable and remove instrument panel components in order shown in Fig. 16. Reverse procedure to install.
