DTC 17
DTC 17
PART 1

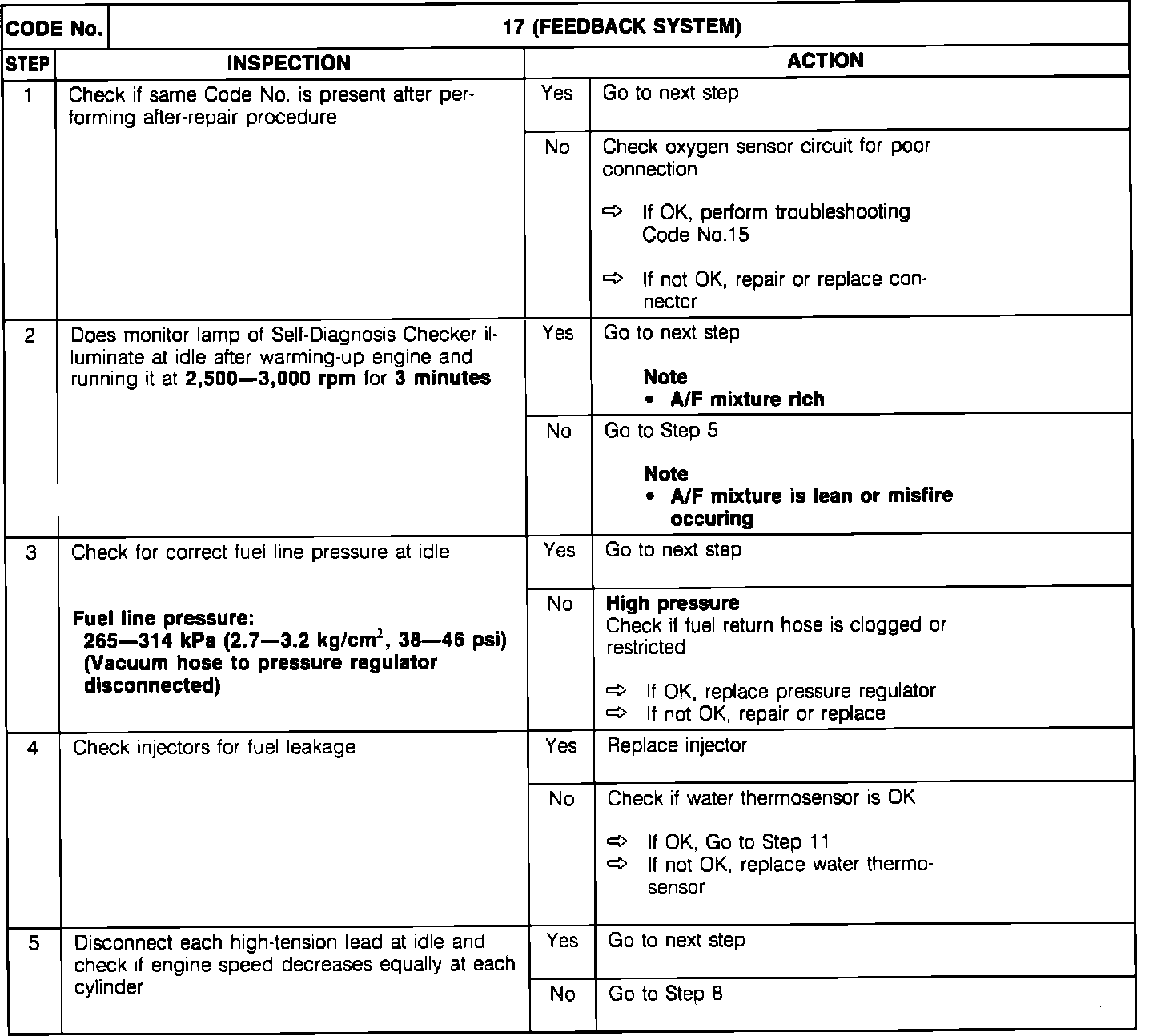

Code 17 Diagnostic Chart And Circuit Diagram (Part 1):
PART 2

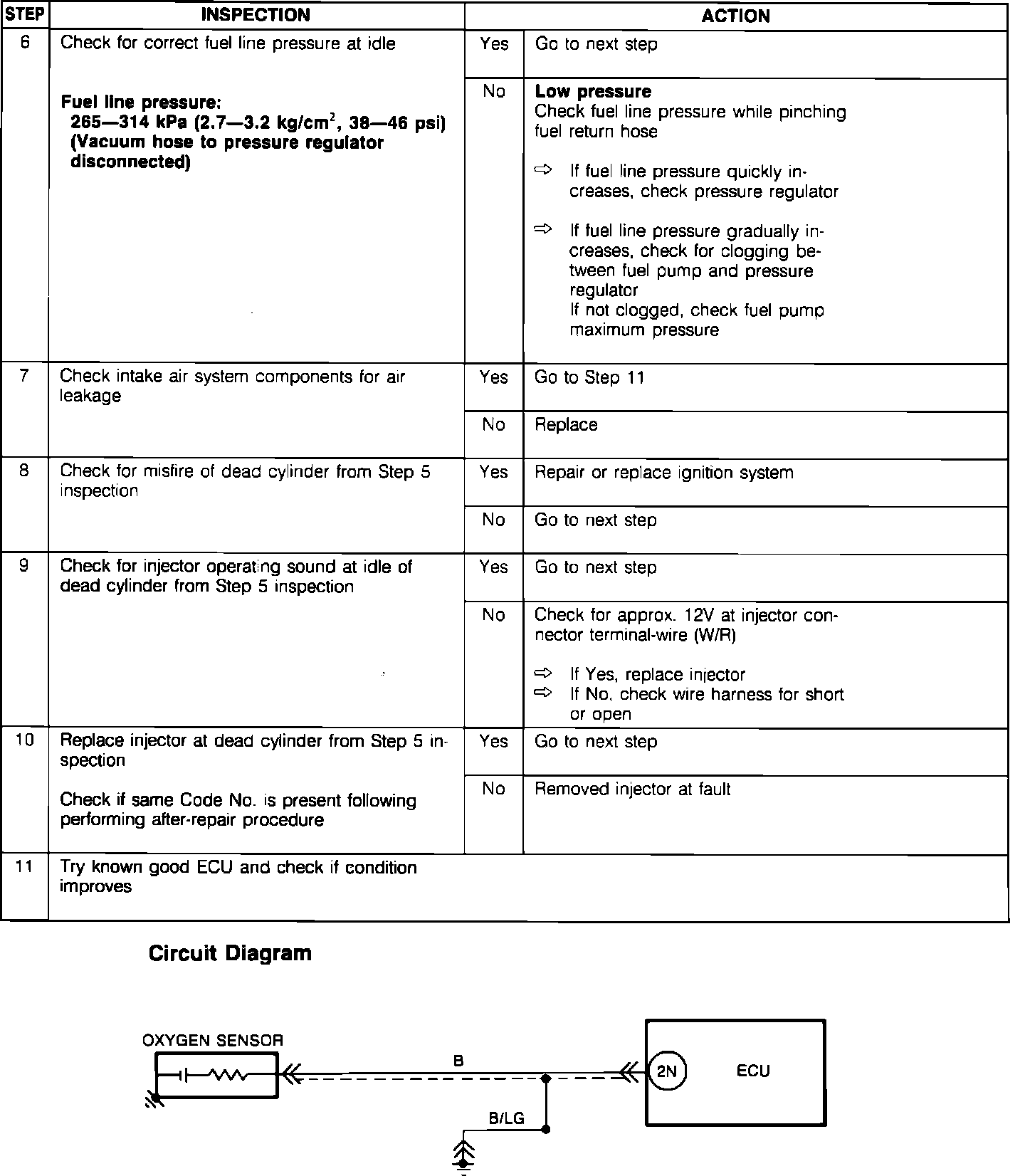

Code 17 Diagnostic Chart And Circuit Diagram (Part 2):
