Home >> Mazda >> 1990 >> RX7 2RTR- 1308cc 1.3L Turbo FI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Control Valve >> Locations

Air Injection Control Valve: Locations

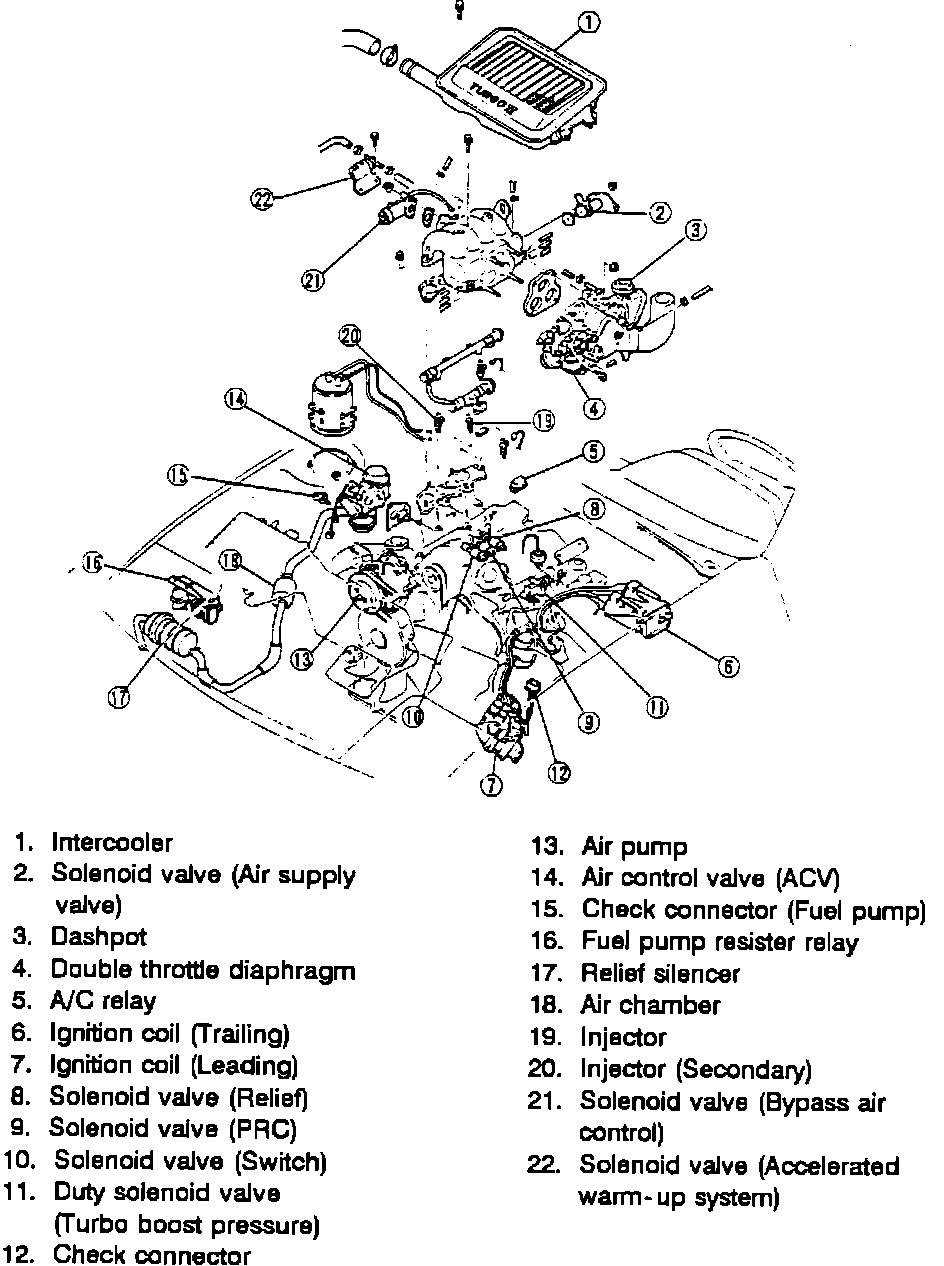

Fuel & Emission Control System Components (Output):




Front Of Engine

Applicable to: Turbocharged Engine
