System Diagram

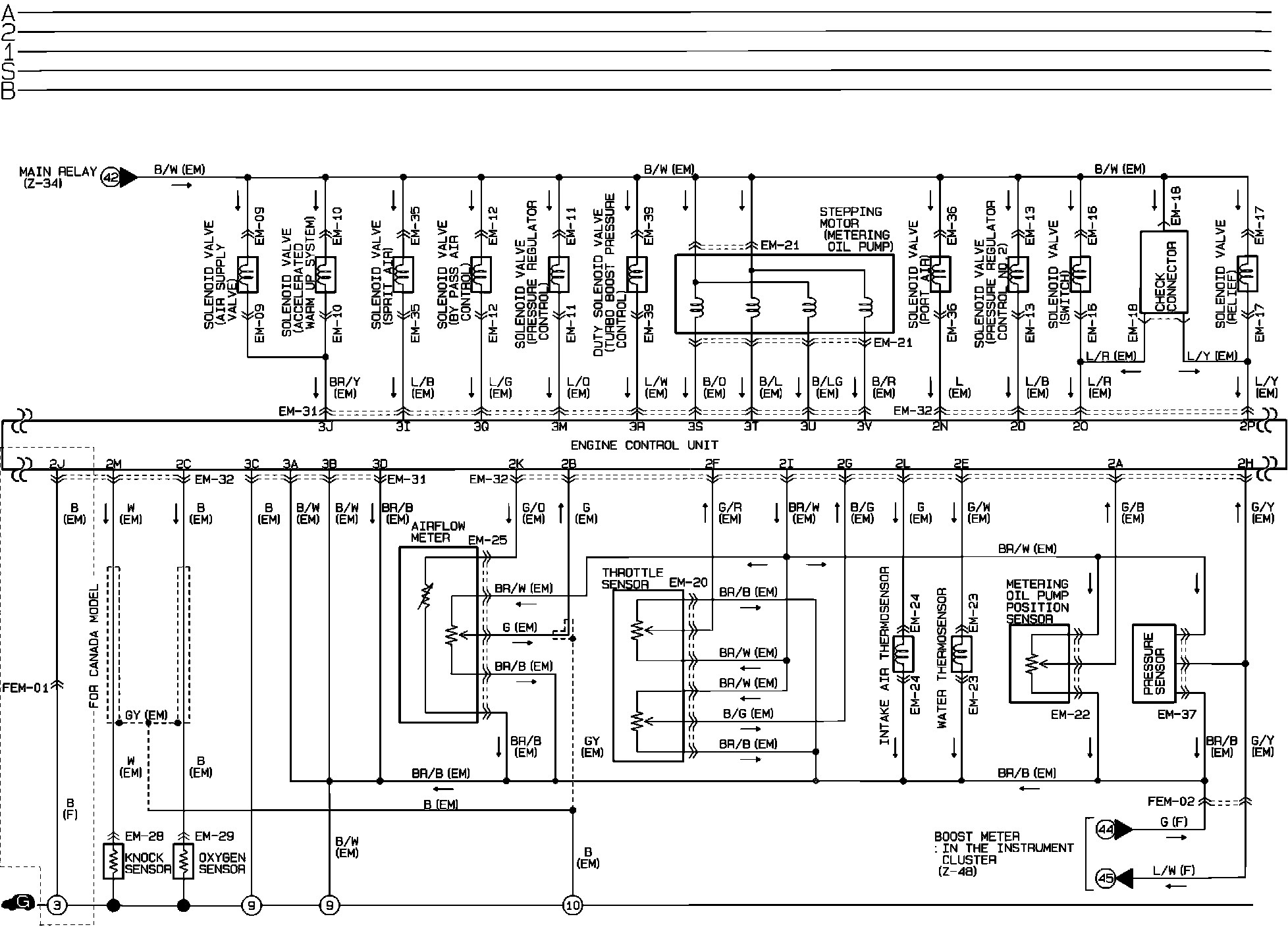

Engine Control System. Turbo:

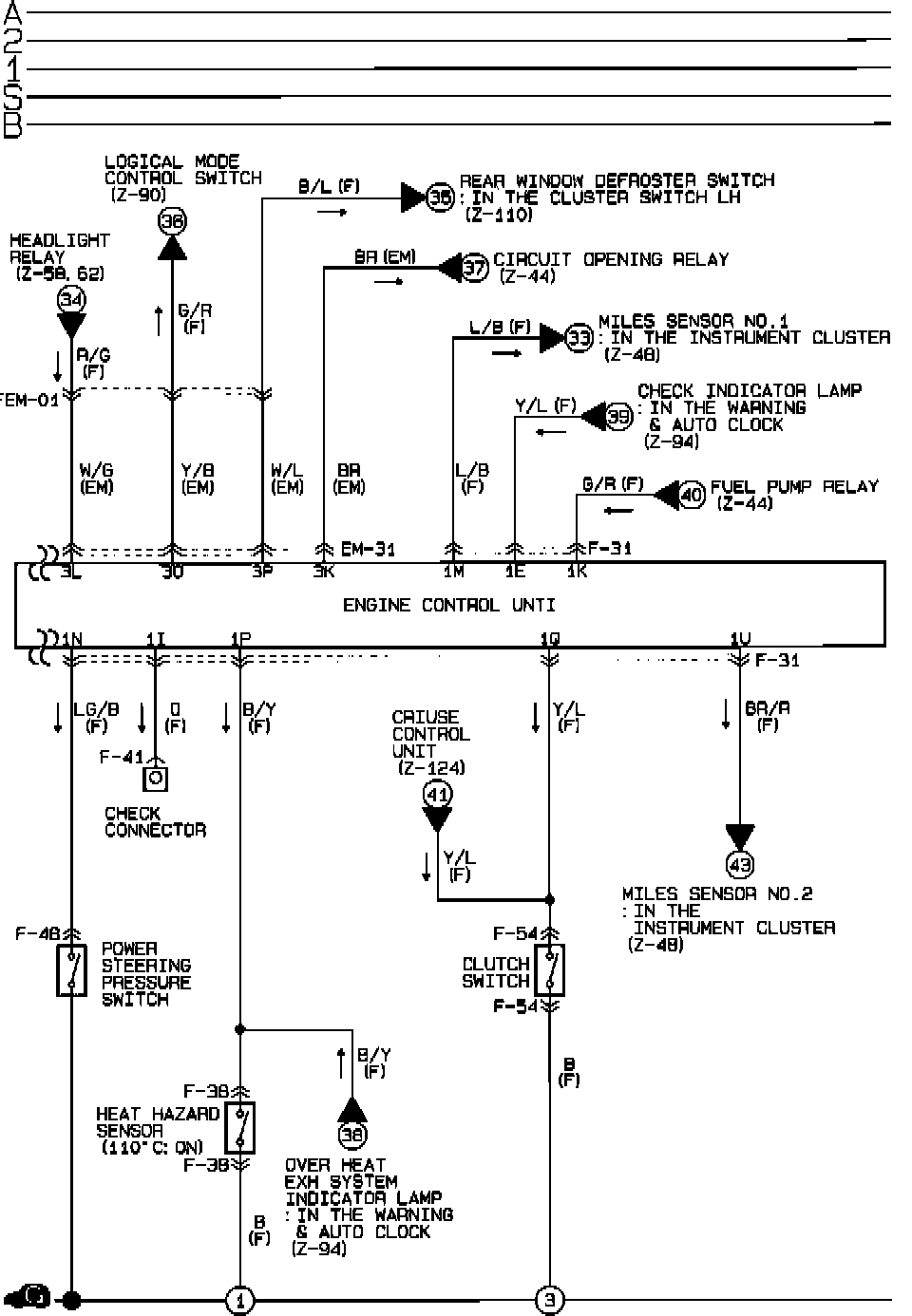

Engine Control System. Turbo:

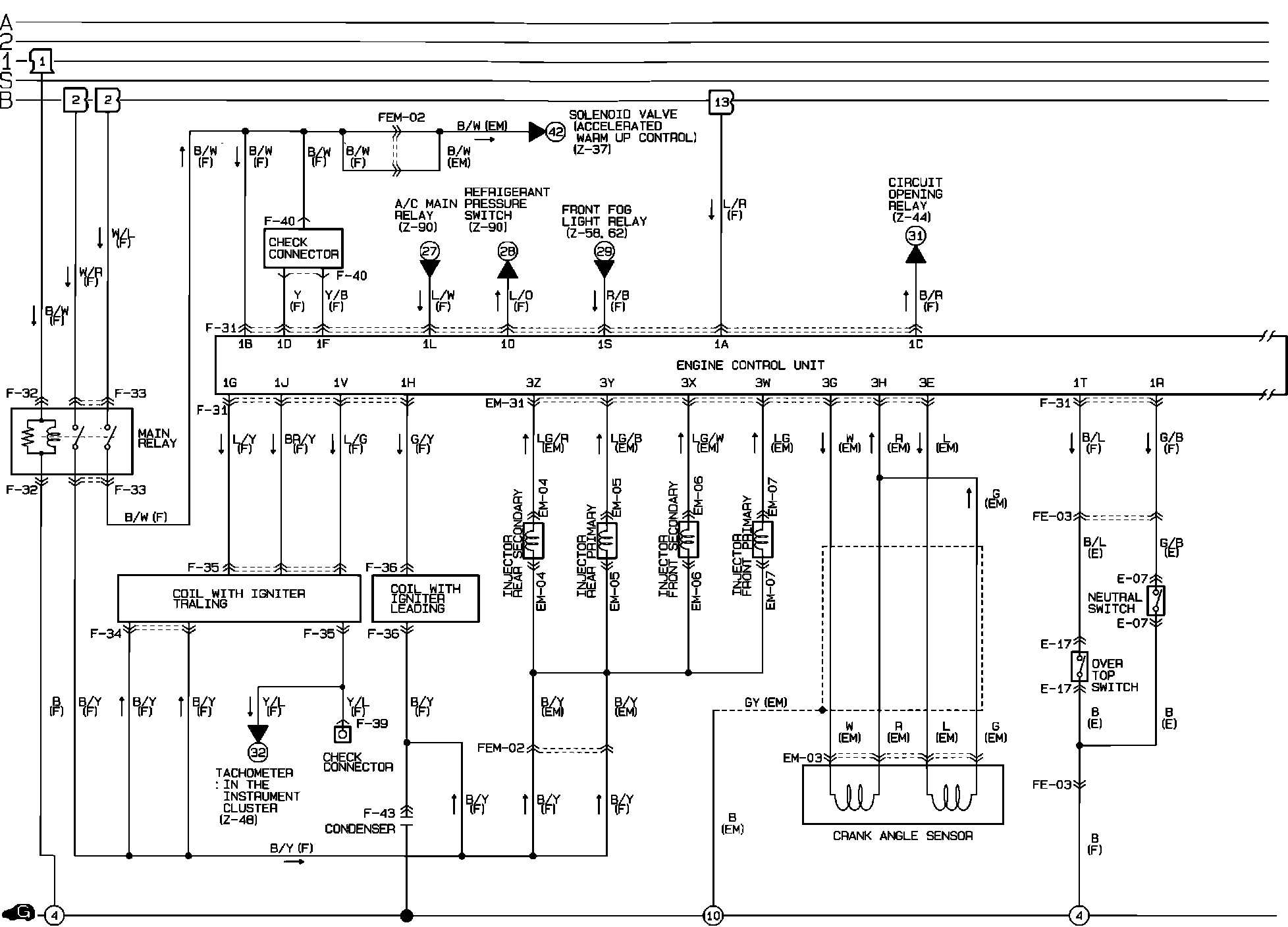

Engine Control & Ignition System. Turbo:
