Disassembly

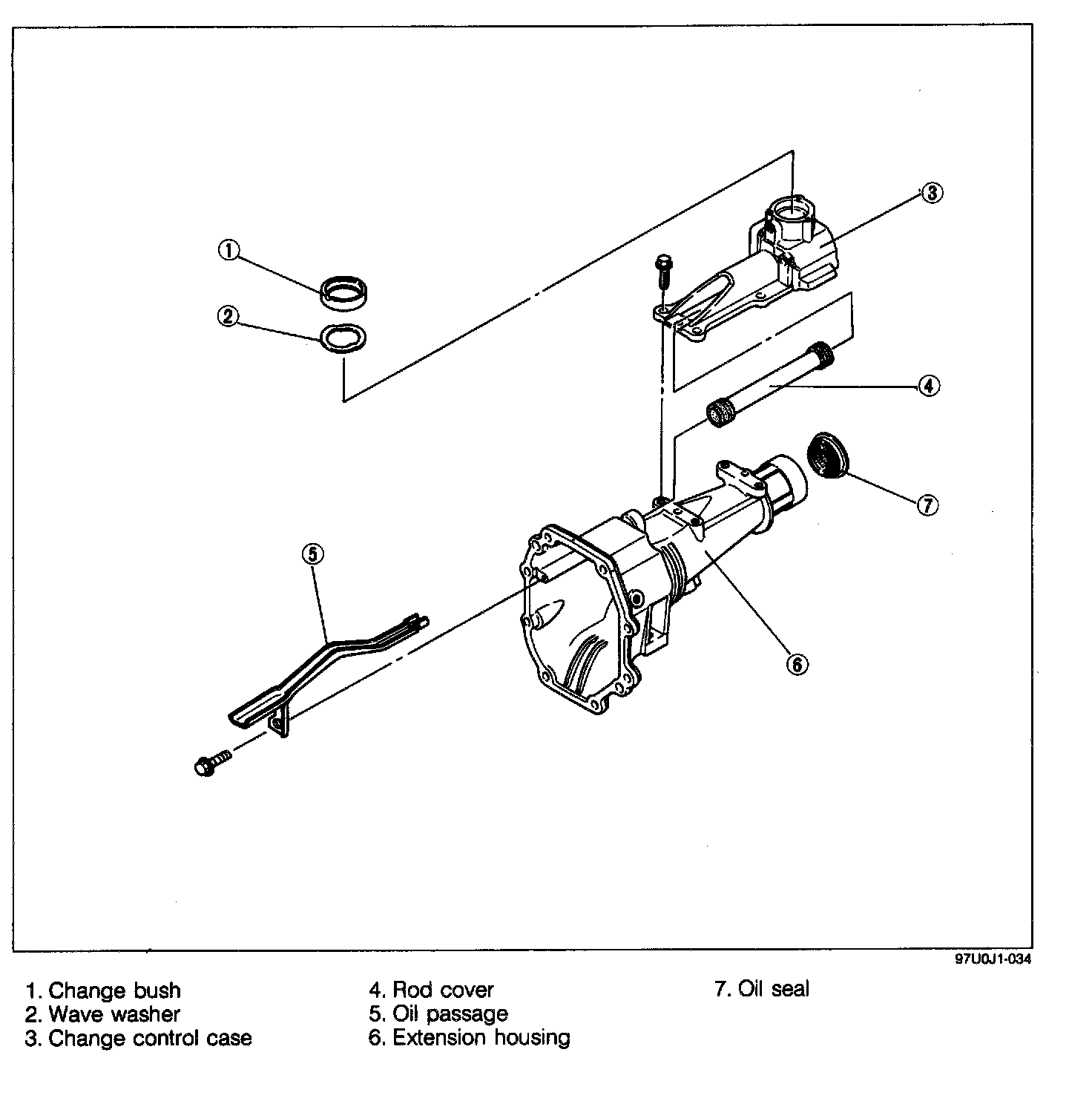

Disassemble in the order shown in the image.




On-vehicle replacement
Oil seal

CAUTION: Do not damage the mainshaft splines.

1. Remove the exhaust pipe and heat insulator.
2. Remove the propeller shaft. Drive/Propeller Shaft

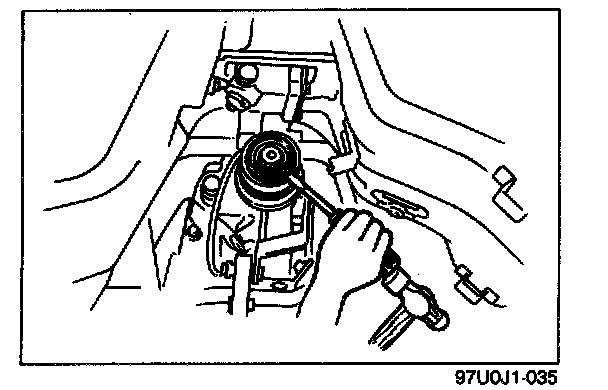

3. Remove the oil seal from the extension housing.




4. Apply transmission oil to outer periphery and lip surface.

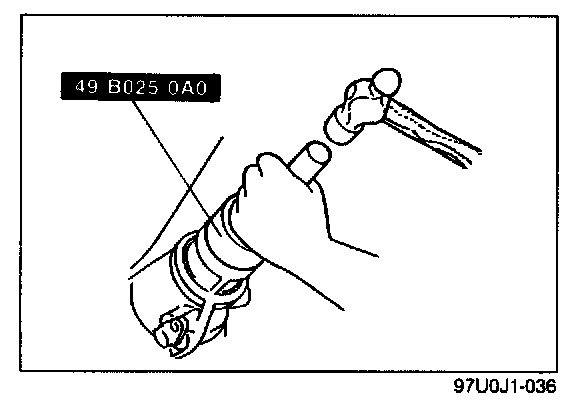

5. Install the new oil seal with the SST.




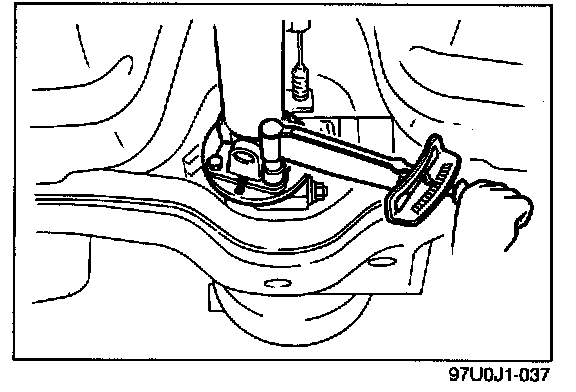

6. Install the propeller shaft. Drive/Propeller Shaft
7. Install the heat insulator and exhaust pipe.
