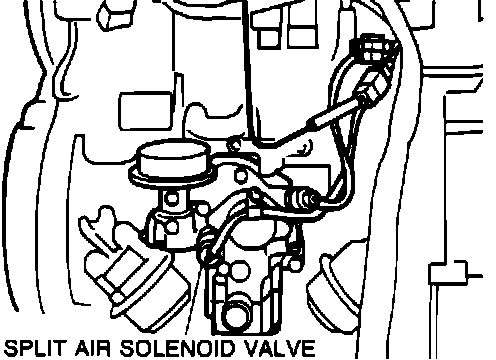

Split Air Solenoid Valve

Split Air Solenoid Valve:

(M/T)

1. Connect a voltmeter to the split air solenoid valve (L/B) terminal and ground.
2. Turn the ignition switch ON.
3. Shift into 5th gear and observe the voltmeter reading.

Voltage: 5th gear: Below 2.5V
Others: Approx. 12V

NOTE: Voltage is always below 2.5V at high altitude.

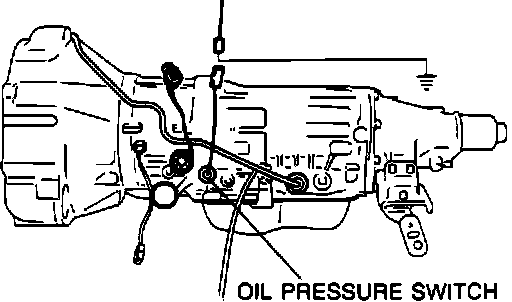

Oil Pressure Switch Connector:

(A/T)

1. Disconnect the oil pressure switch and connect a jumper wire between the connector and ground.
2. Connect a voltmeter to the split air solenoid valve (L/B) terminal and ground.
3. Turn the ignition switch ON.
4. Shift into "D" range and observe the voltmeter reading.

Voltage: D range: Below 2.5V
Others: Approx. 12V
