Air Injection Pump: Adjustments

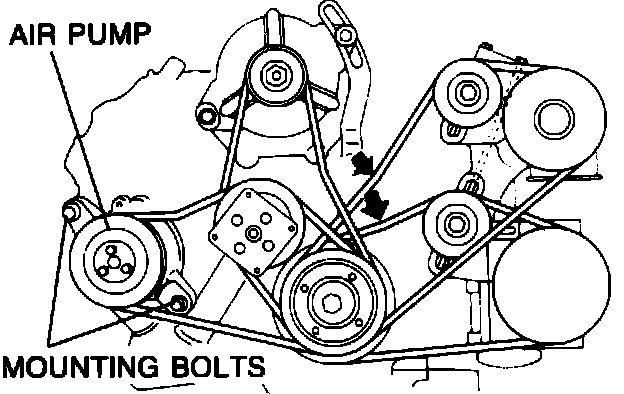

Fig. 50 Air Pump Belt Adjustment:

1. Loosen the air pump strap bolt and mounting bolt.
2. Move the air pump closer to or further away from the engine until the correct belt tension is obtained.

Belt tension: 11-13mm (0.43-0.51 in) when pressed at 98 N (10 kg, 22 lb)

3. Tighten all loosened bolts and recheck tension.
