Electrical Diagrams

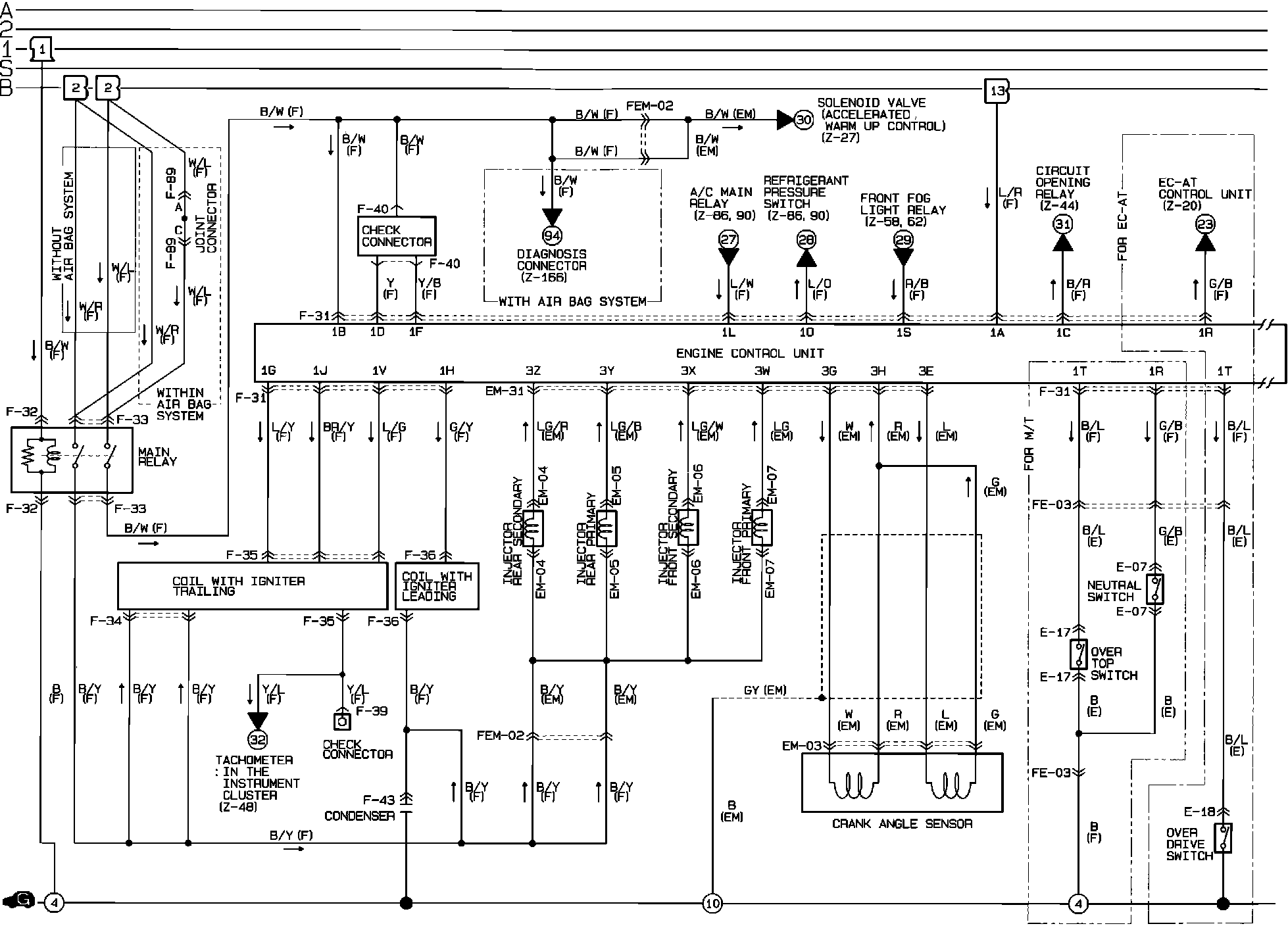

Engine Control. Non-Turbo:

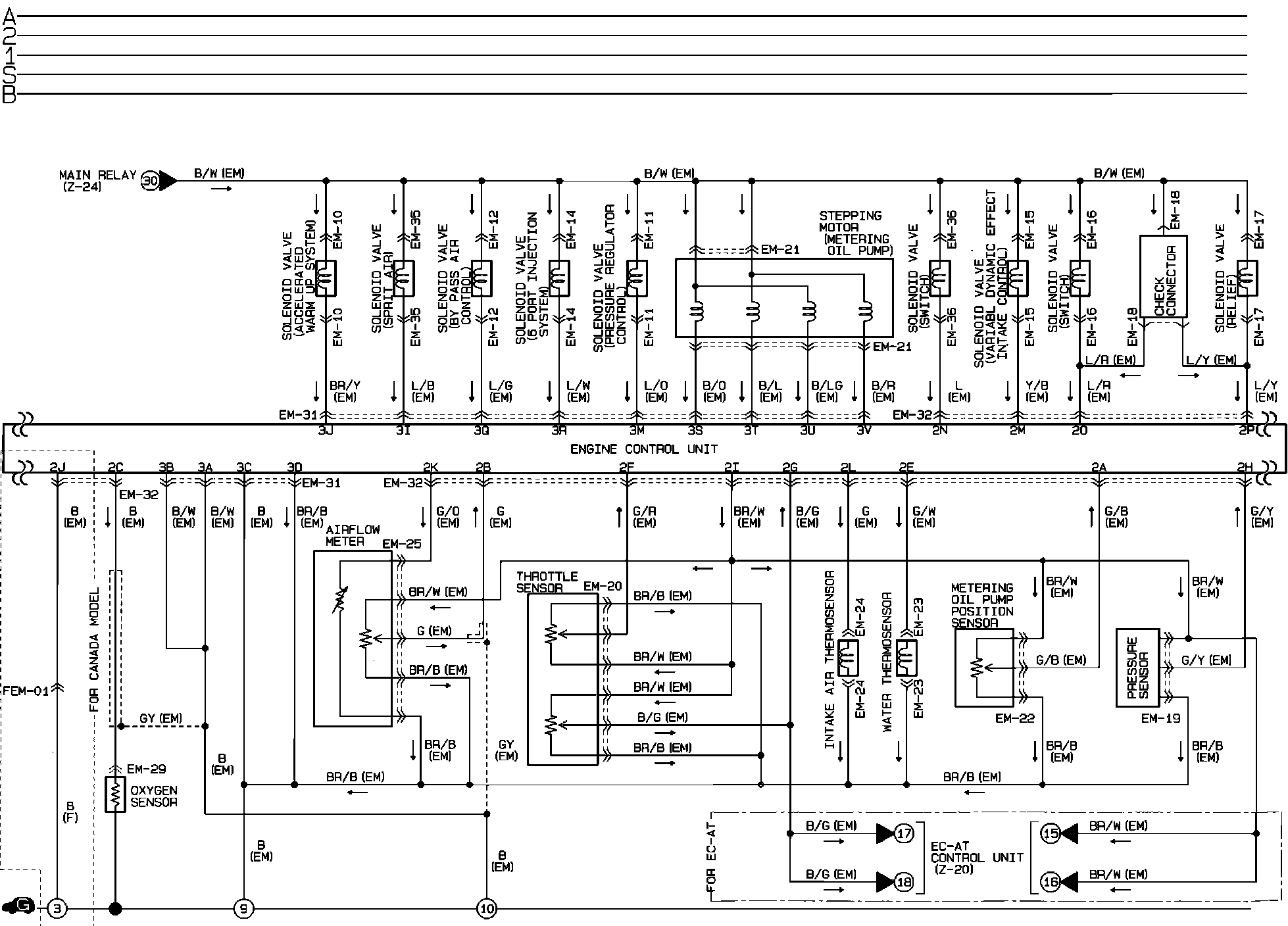

Engine Control. Non-Turbo:

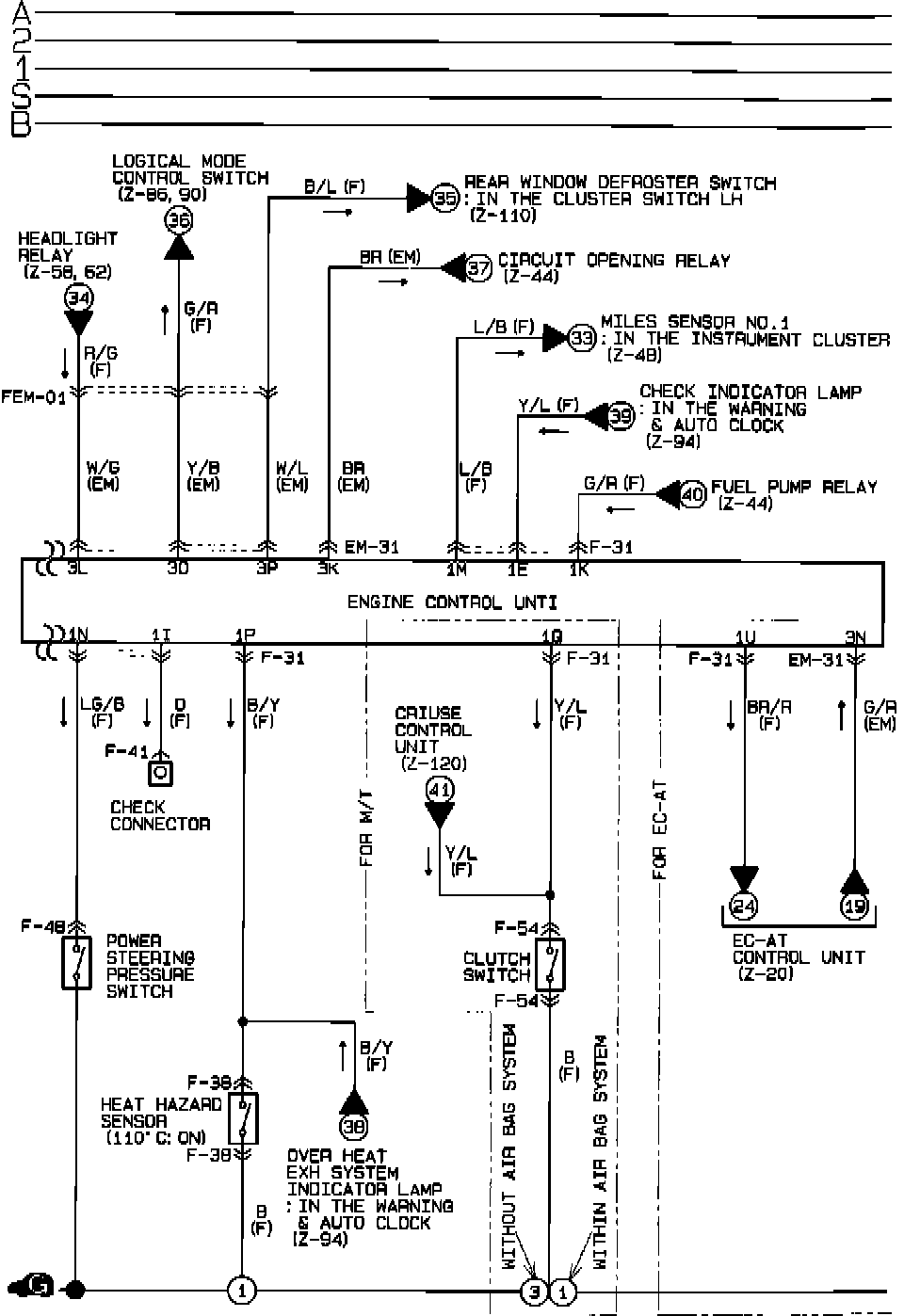

Engine Control & Ignition System. Non-Turbo:
