RX7 2RTR- 1308cc 1.3L FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

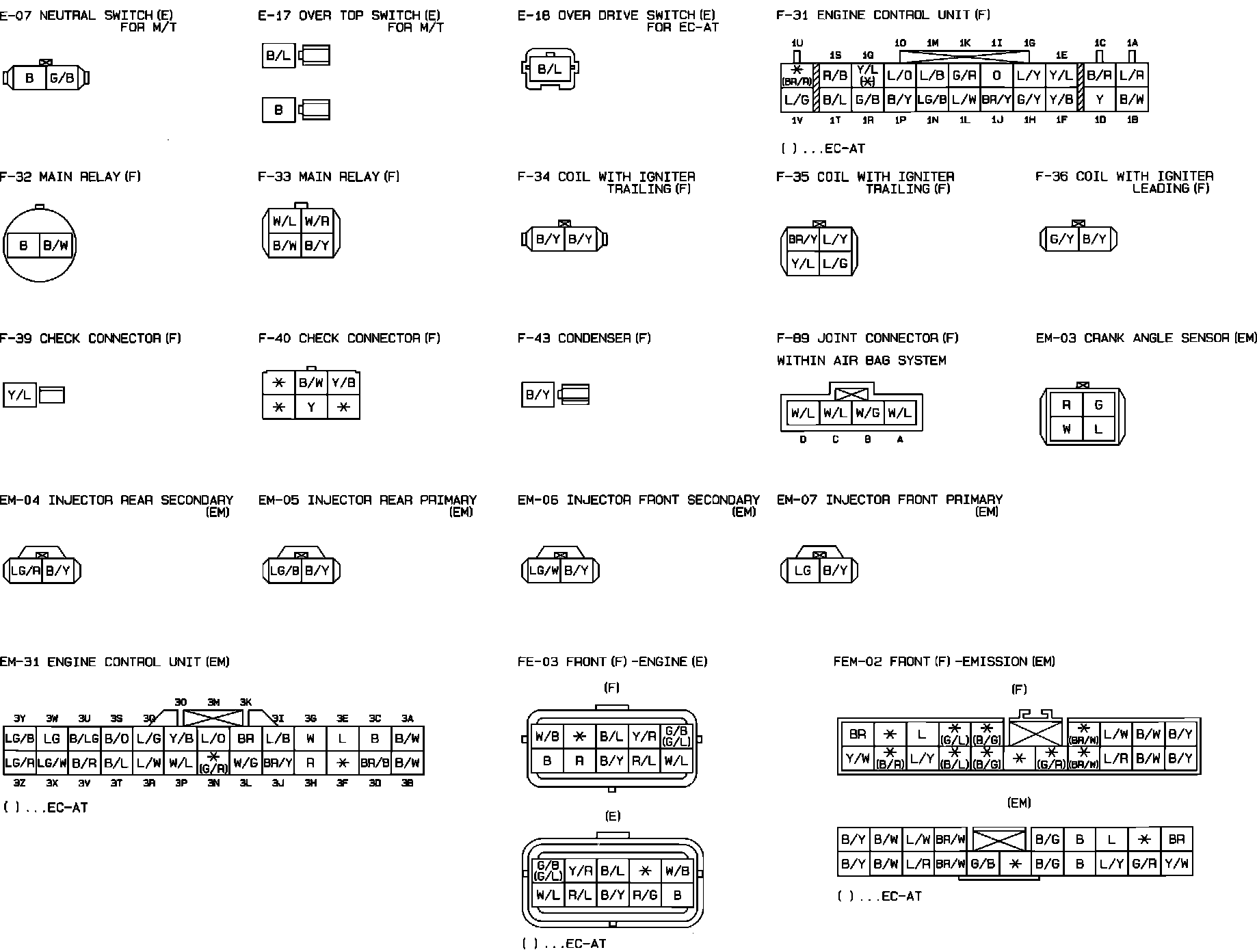

Engine Control & Ignition System. Non-Turbo. Connector Identification:
