RX7 2RTR- 1308cc 1.3L FI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Diagrams
>>
Connector Views
Connector Views

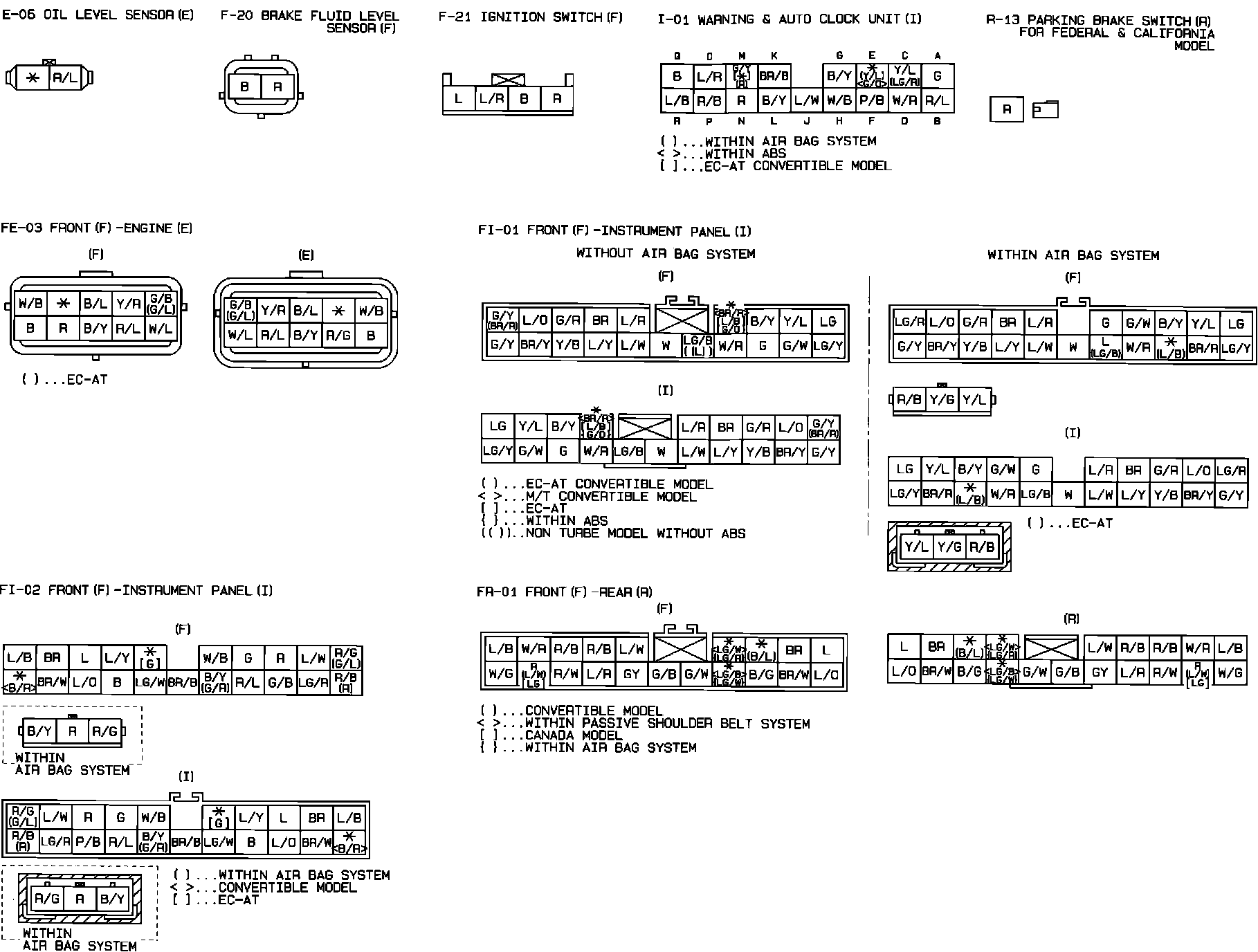

Warning & Auto Clock System. Connector Identification:
