Mazda
>>
1990
>>
RX7 2RTR- 1308cc 1.3L FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Connector Locations
>>
Non Turbo
>>
Automatic Transaxle
Automatic Transaxle

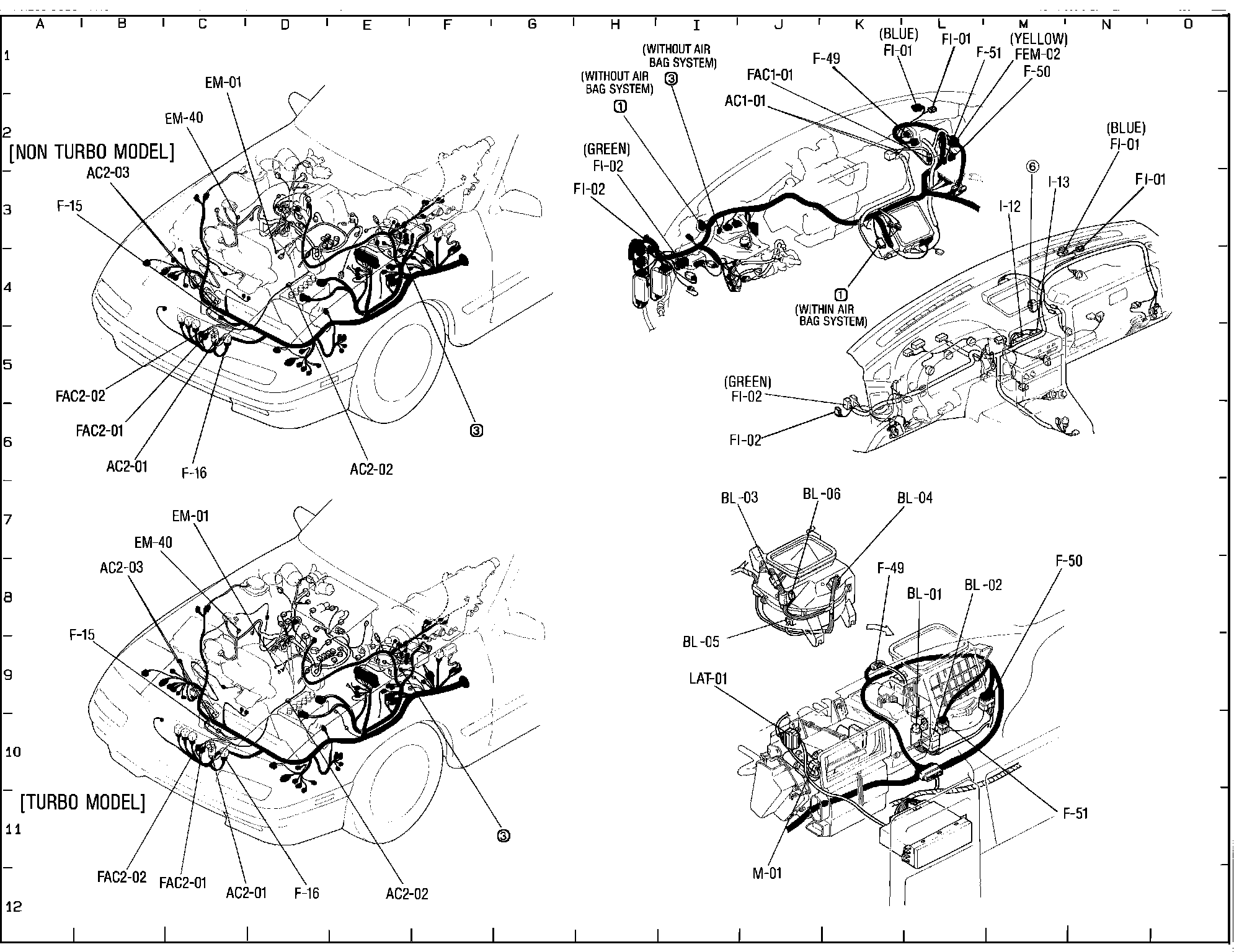

Heater, Air Conditioning & Electric Cooling Fan System. Harness Locations:
