Initial Inspection and Diagnostic Overview

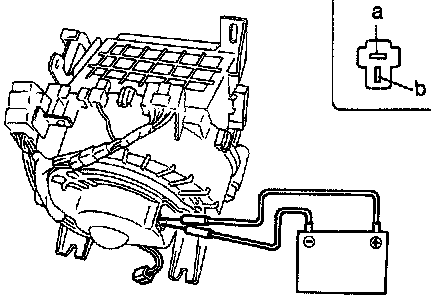

Blower Motor Inspection1. Disconnect the blower motor connector.
2. Verify that the blower motor runs when applying 12V to terminal a and grounding terminal b.
3. If the blower motor does not run, replace it.
