Home
>>
Mazda
>>
1990
>>
RX7 2RTR- 1308cc 1.3L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Blower Motor
>>
With Additional Fan System
With Additional Fan System

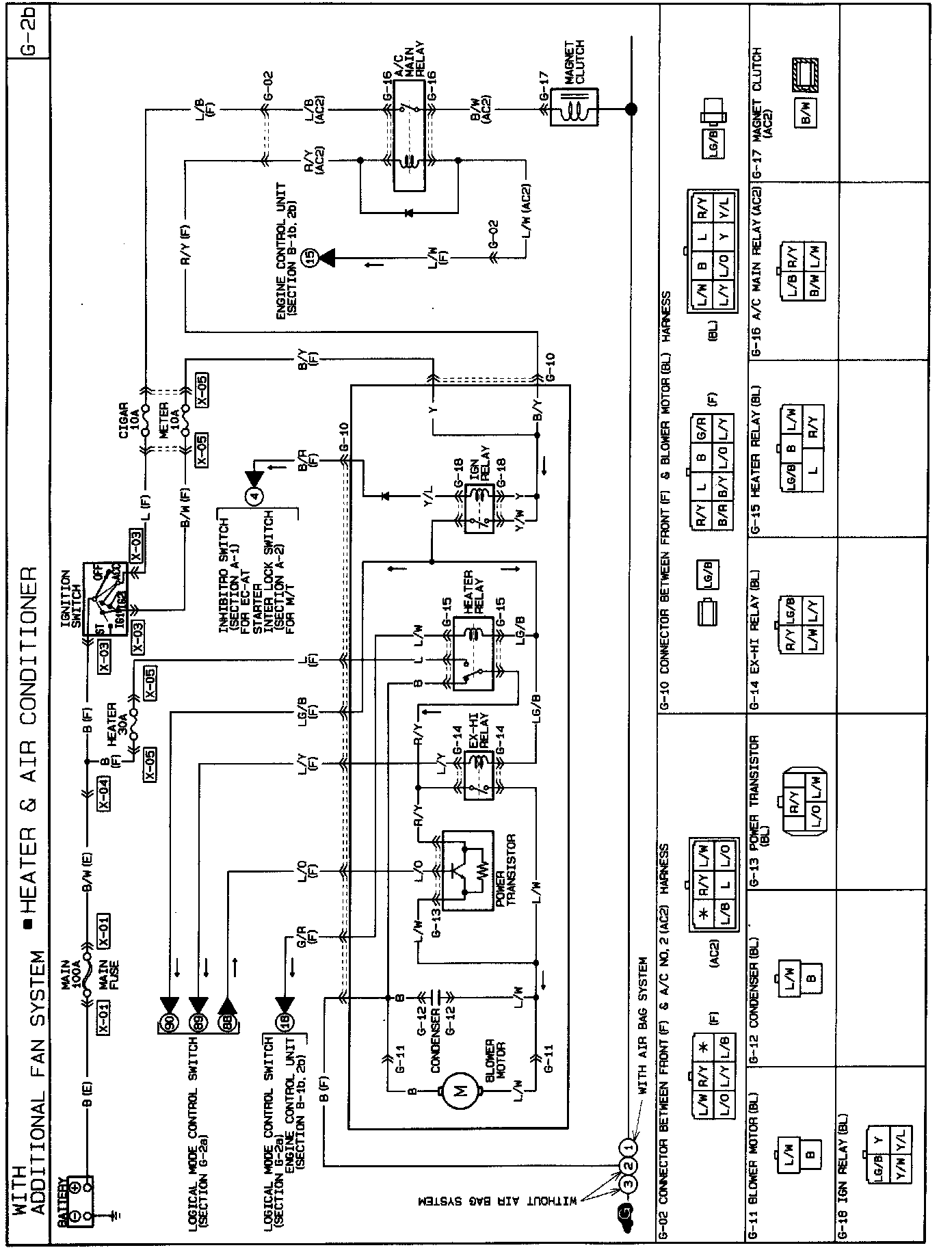

With Additional Fan System:
