Brake Proportioning/Combination Valve: Testing and Inspection

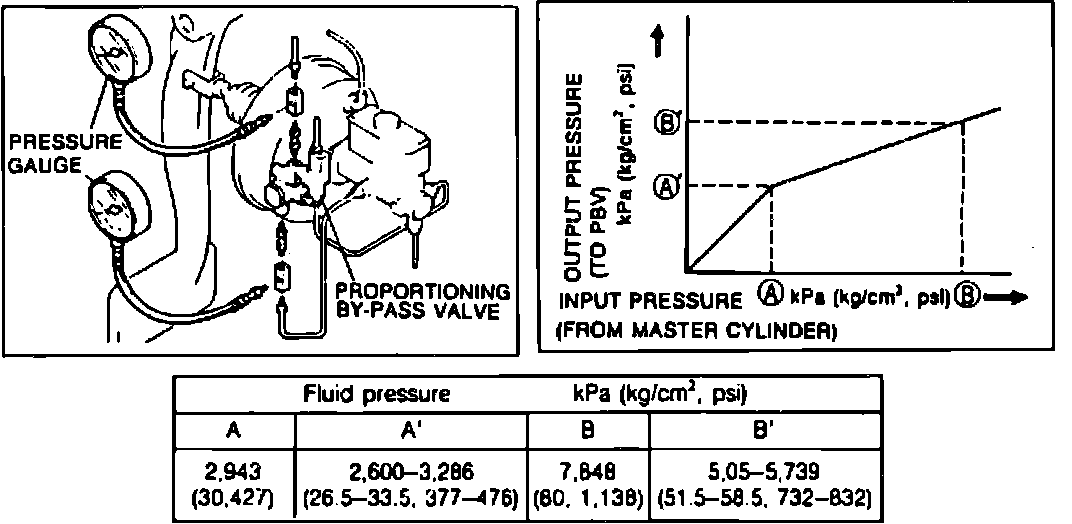

Fig. 9 PBV Pressure Chart. RX-7:

Connect pressure tester as shown. If pressure is different than the chart that coincides with the figure, then replace valve, Fig. 9.
