A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Air Bag System
Air Bag System

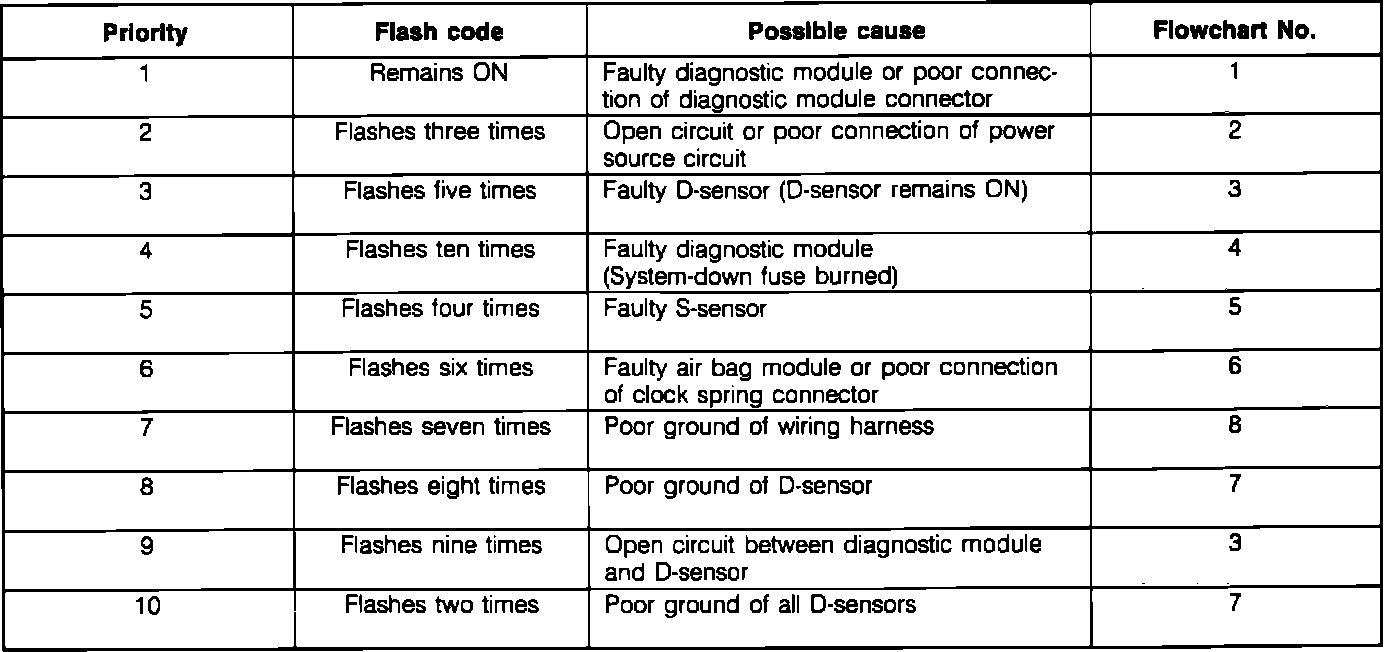

Fig. 8 Diagnostic Fault Code Descriptions:
