Pinion Gear: Service and Repair

DISASSEMBLY / ASSEMBLY
1. Disassemble in the order indicated in the illustration, referring to disassembly note.
2. Assemble in the reverse order of disassembly indicated in the illustration, referring to assembly procedure.

Disassembly Note





Bearings (3)

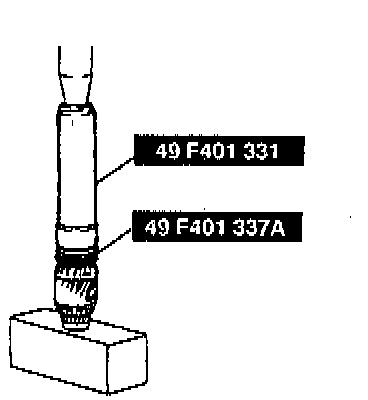

Remove the bearings from the output gear by using the Special Service Tool (SST).





Assembly Procedure

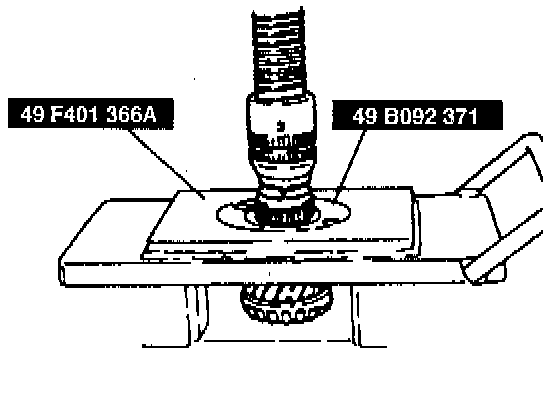

1. Press the new bearings onto the output gear by using the SST.

NOTE: Do not damage the seal ring when installing it.

2. Apply ATF to new seal rings and install them to each side of the output gear. Seal ring inner diameter is 27.6 mm (1.087 inch).
