Mazda
>>
1990
>>
Protege L4-1839cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
Connector Locations
>>
With 4WD
With 4WD

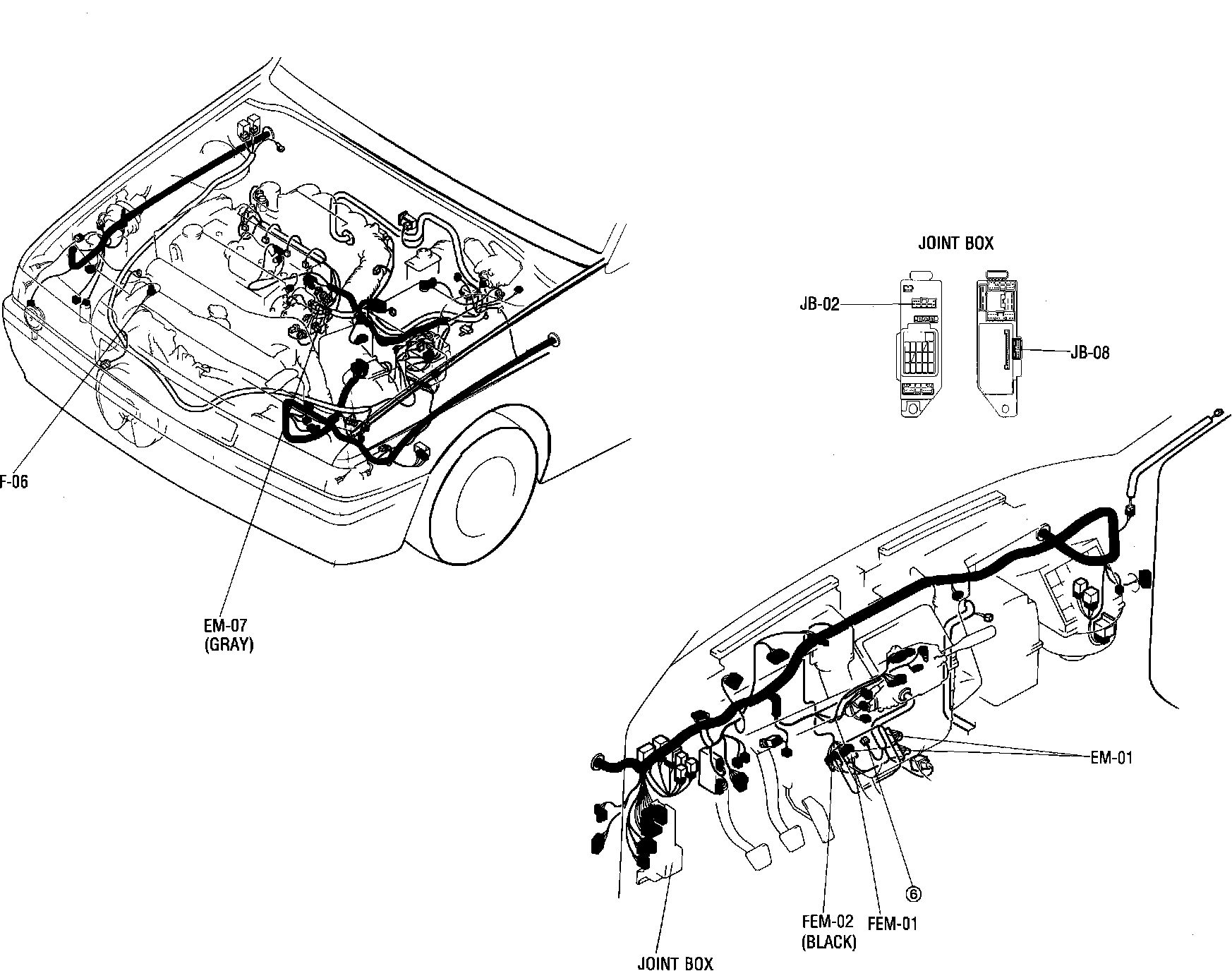

Engine Control System. 4WD. Harness Locations:

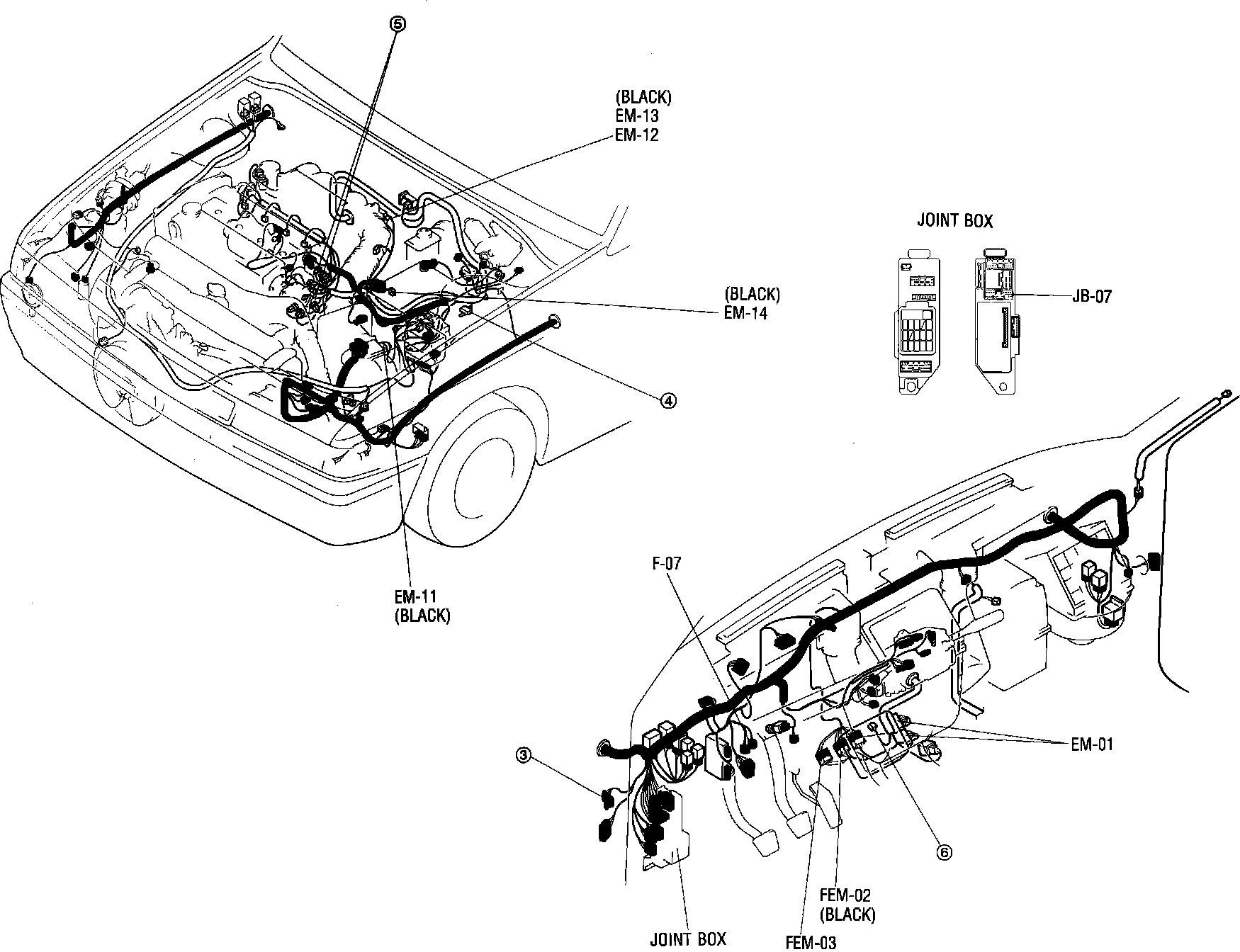

Engine Control System. 4WD. Harness Locations:

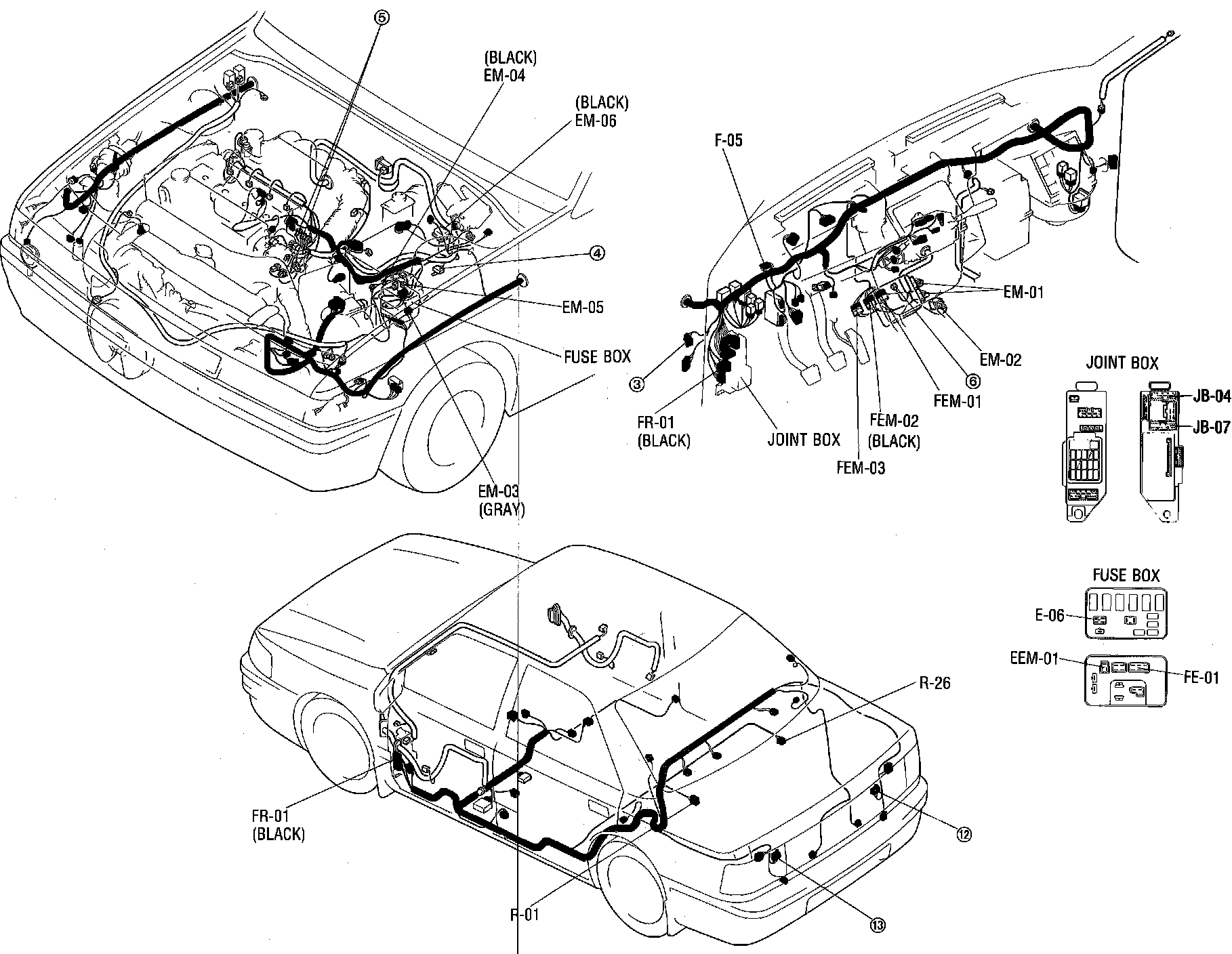

Engine Control System. 4WD. Harness Locations:

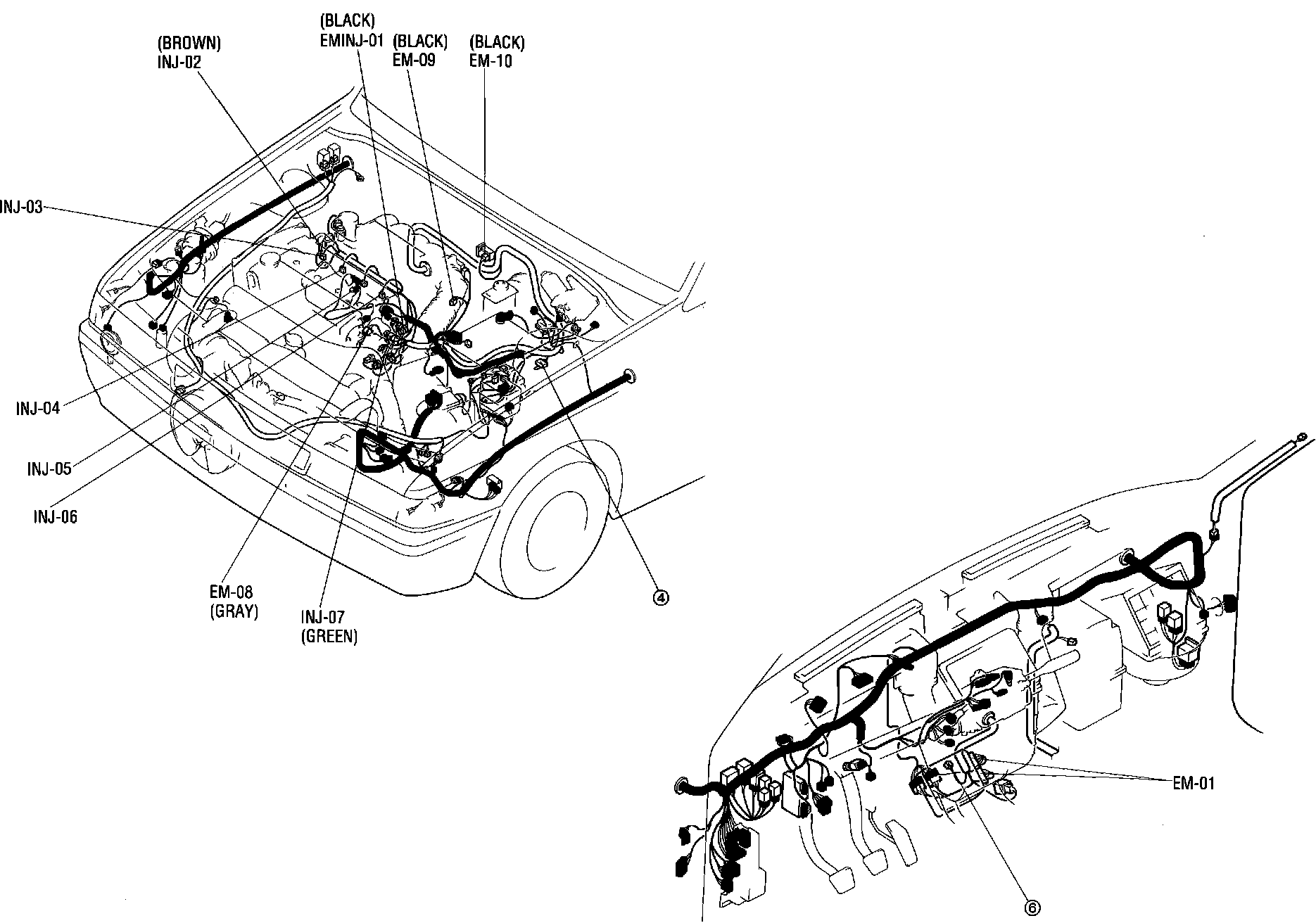

Engine Control System. 4WD. Harness Locations:
