Electrical Diagrams

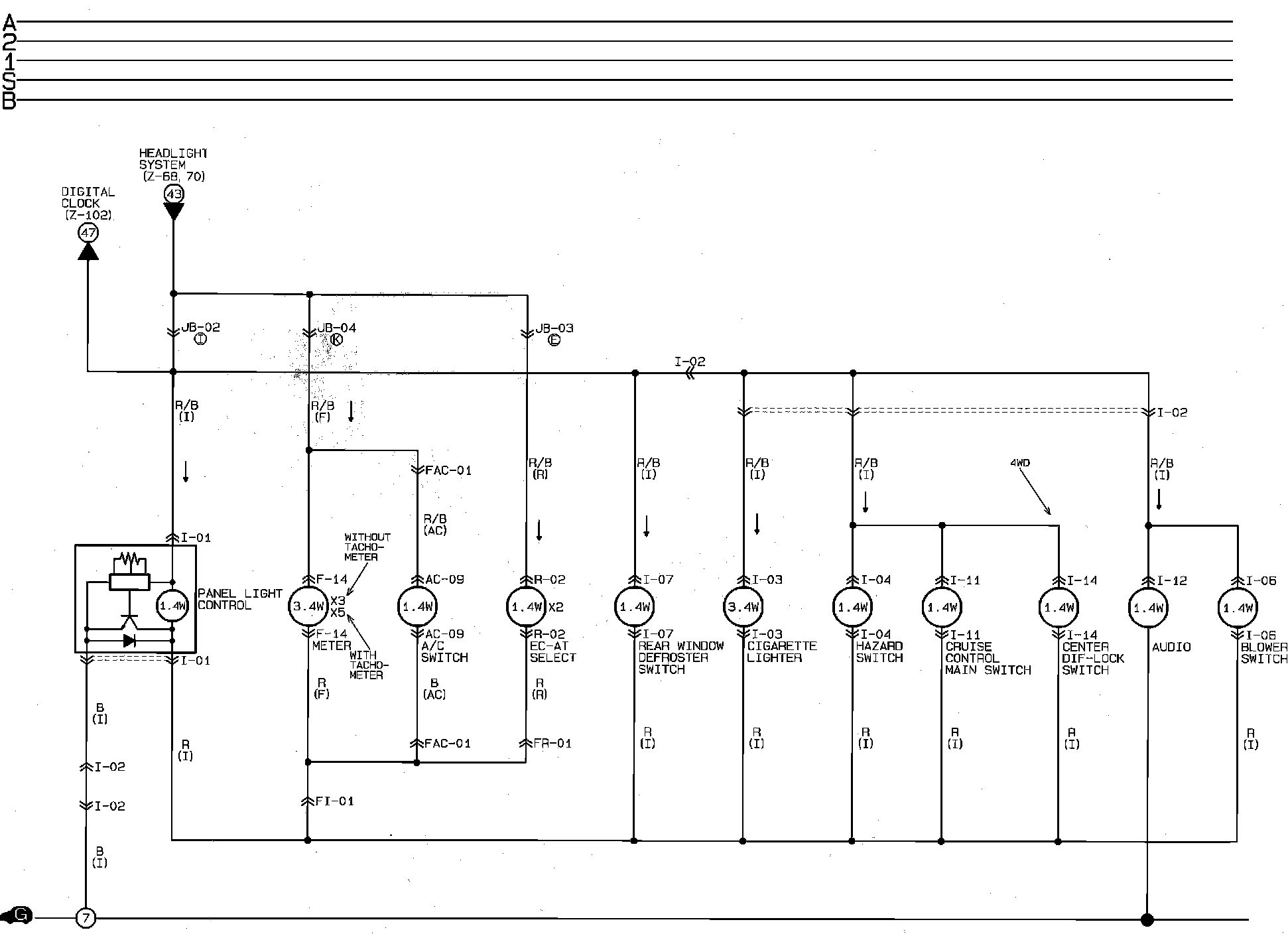

Illumination Lamps:
Sound Warning System, Interior, Spot & Ignition Key Cylinder Lamp:
Cargo Room Lamp:
