A/T, Brakes, Transaxle - Manual Revisions

Bulletin No. 024/92
Issued 7/16/92
Revised

Category
W

Applicable Models
1990-'91 323/Protege

Subject:
WORKSHOP MANUAL CORRECTION

DESCRIPTION

The pages of the 1990-'91 323/Protege Workshop Manuals have been corrected for the reasons listed.

Please replace the current pages with the replacement pages provided.

^ 1990 323/Protege 2WD

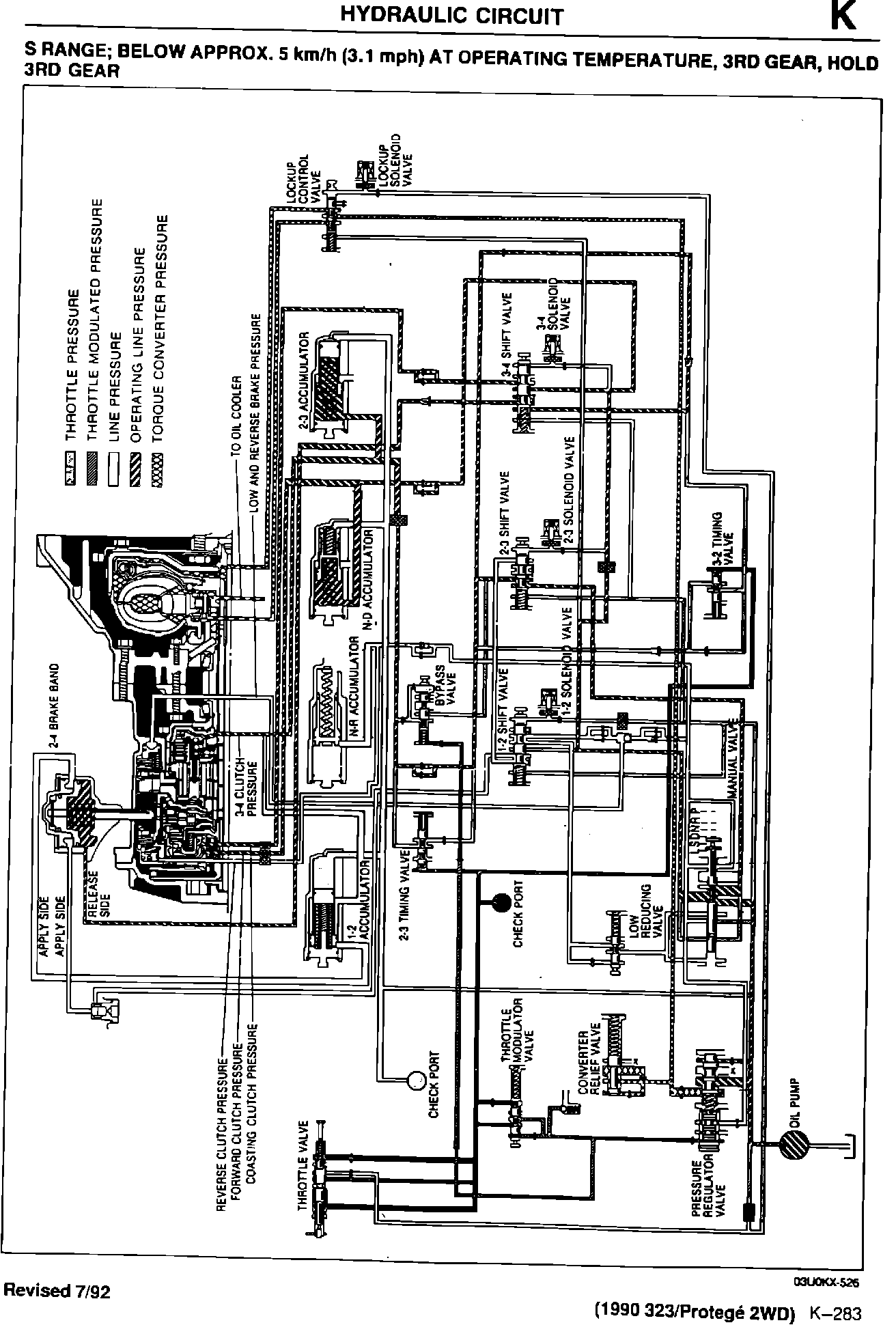

K-283 - Correction to legend at top of graph.

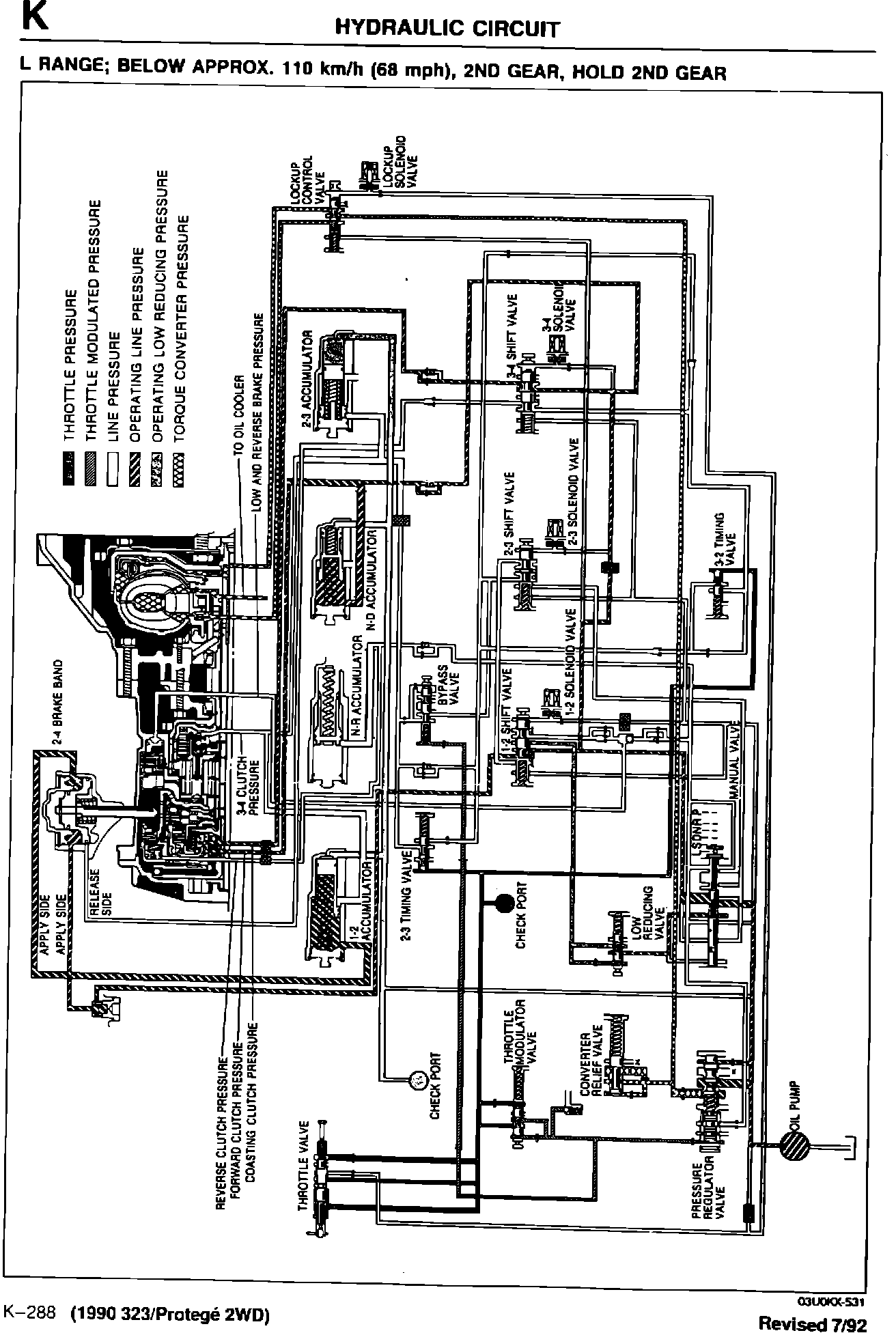

K-288 - Correction to legend at top of graph.

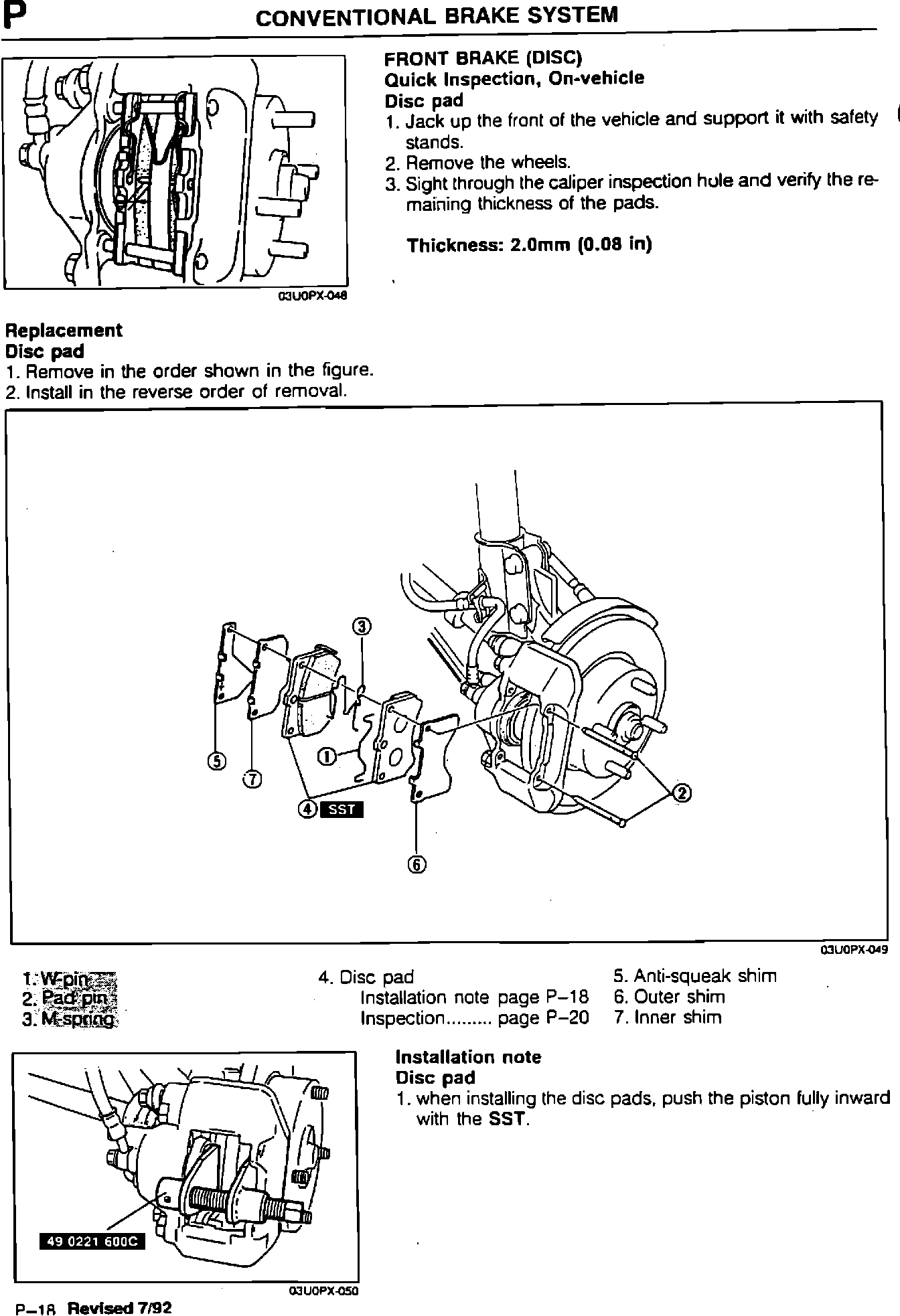

P-18 - Correction to include W-Pin, Pad Pin and M-Spring.

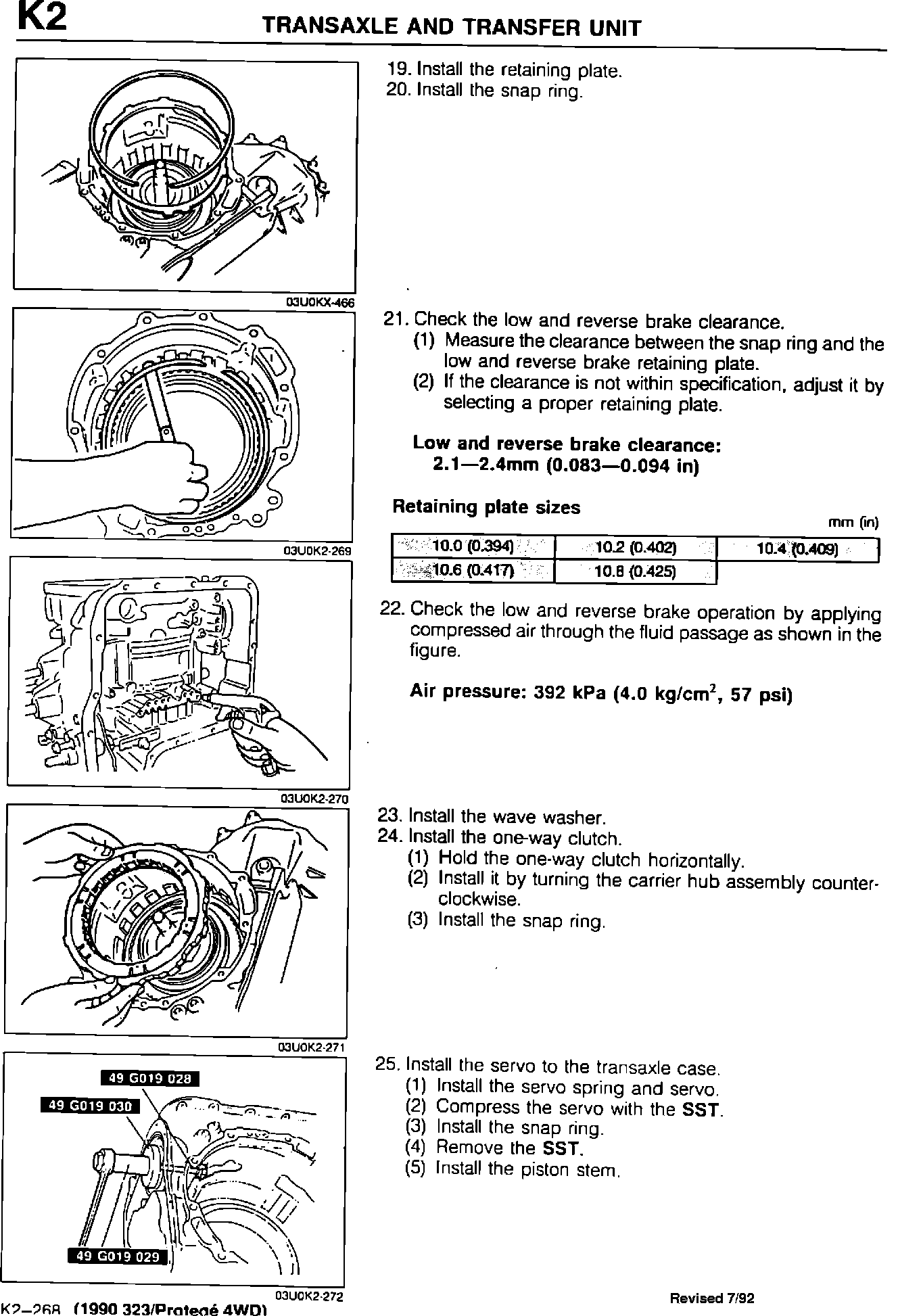

^ 1990 323/Protege 4WD K2-268 - Modifications to retaining plate table.

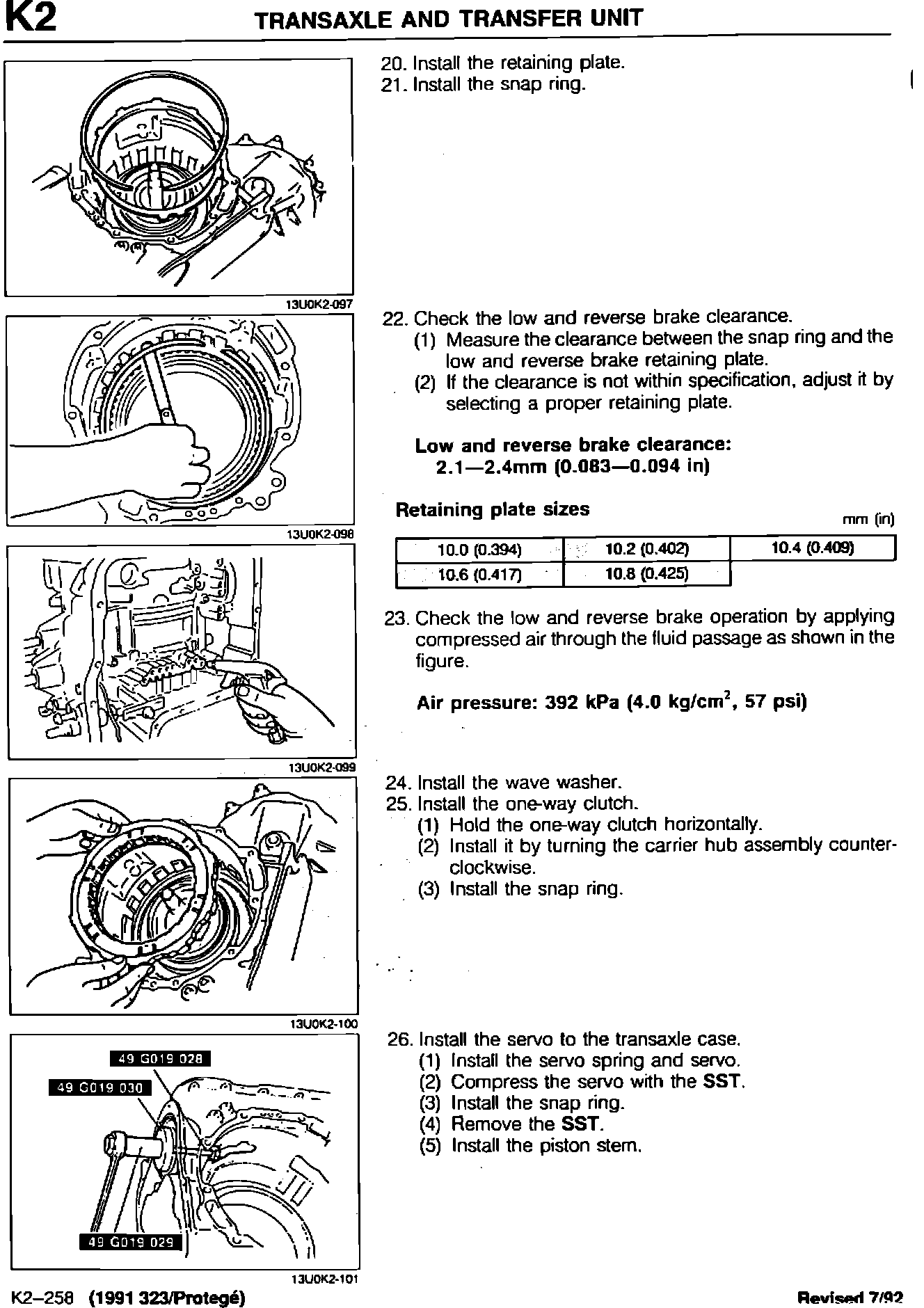

^ 1991 323/Protege K2-258 - Modifications to retaining plate table.
