Protege L4-1839cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Engine Compartment
Engine Compartment

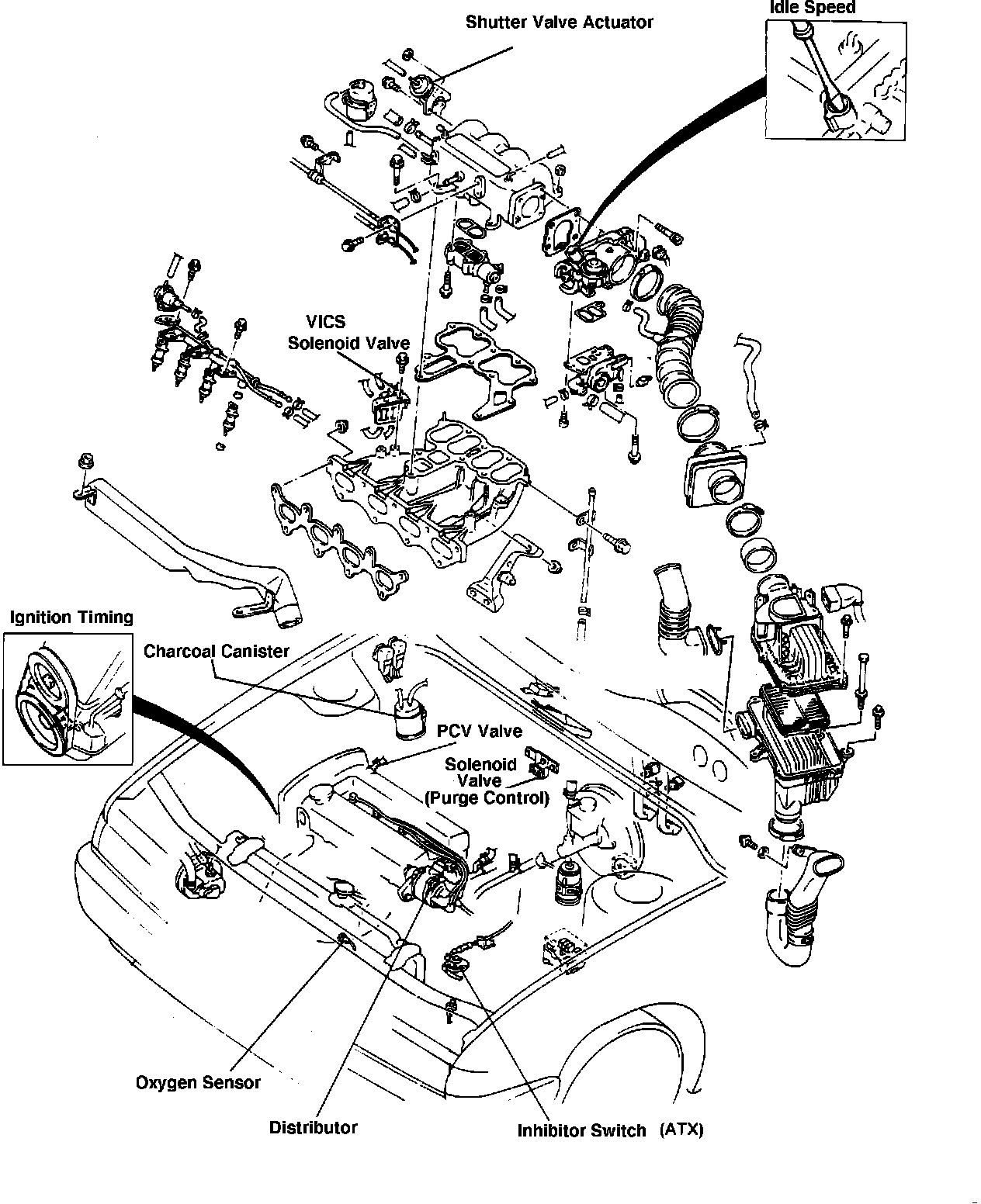

Fig. 68 Component Locations:
