Fuel Pressure Pulsation Damper: Testing and Inspection

Pulsation Damper Inspection

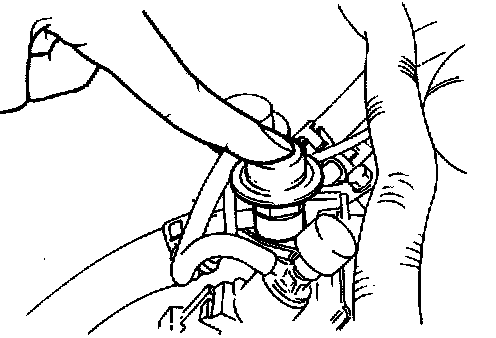

1. Place a finger on the screw of the pulsation damper head.
2. Check that pulsation is felt while the engine is running.
